178
4.11 SCART

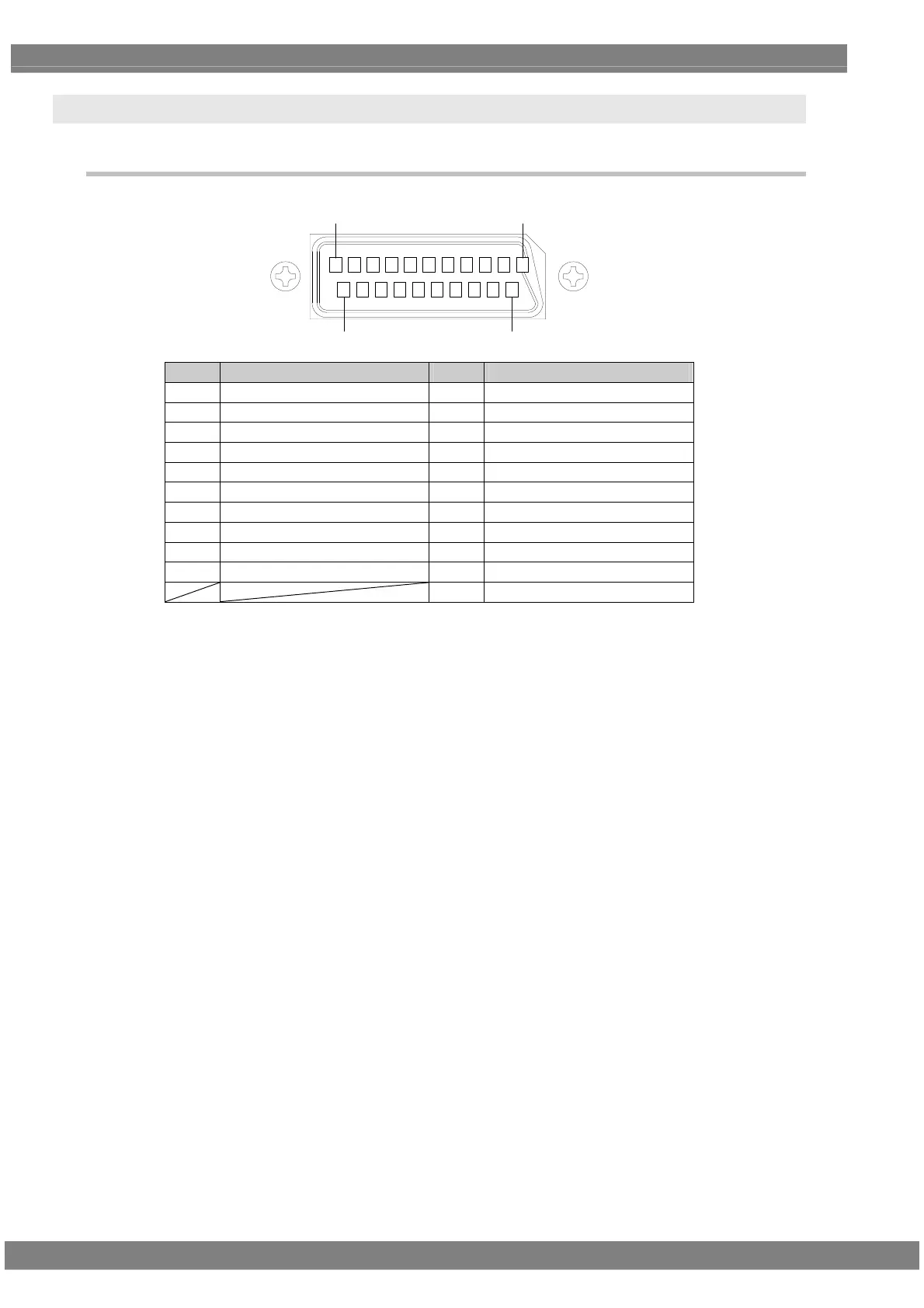

4.11.1 Connectors and pin assignments
2
1
20
21
Pin no. Signal Pin no. Signal
1 Audio right channel output 11 Component G output
2 N.C. 12 N.C.
3 Audio left channel output 13 GND
4 GND 14 GND
5 GND 15 Component R output/C output
6 GND 16 RGB status
7 Component B output 17 GND
8 Video Status 18 GND
9 GND 19 Composite/Y output/CS
10 N.C. 20 N.C
21 GND
