ASTRO VG-873 - HDMI List

Chapter 6 PATTERN SETTINGS
367
6.13.6 HDMI list
The HDMI list display can be selected by pressing the NAME/LIST pattern key while the output from the
HDMI connector is connected to the display. Information on the signals which are input to the display
from the HDMI connector is shown on the display.

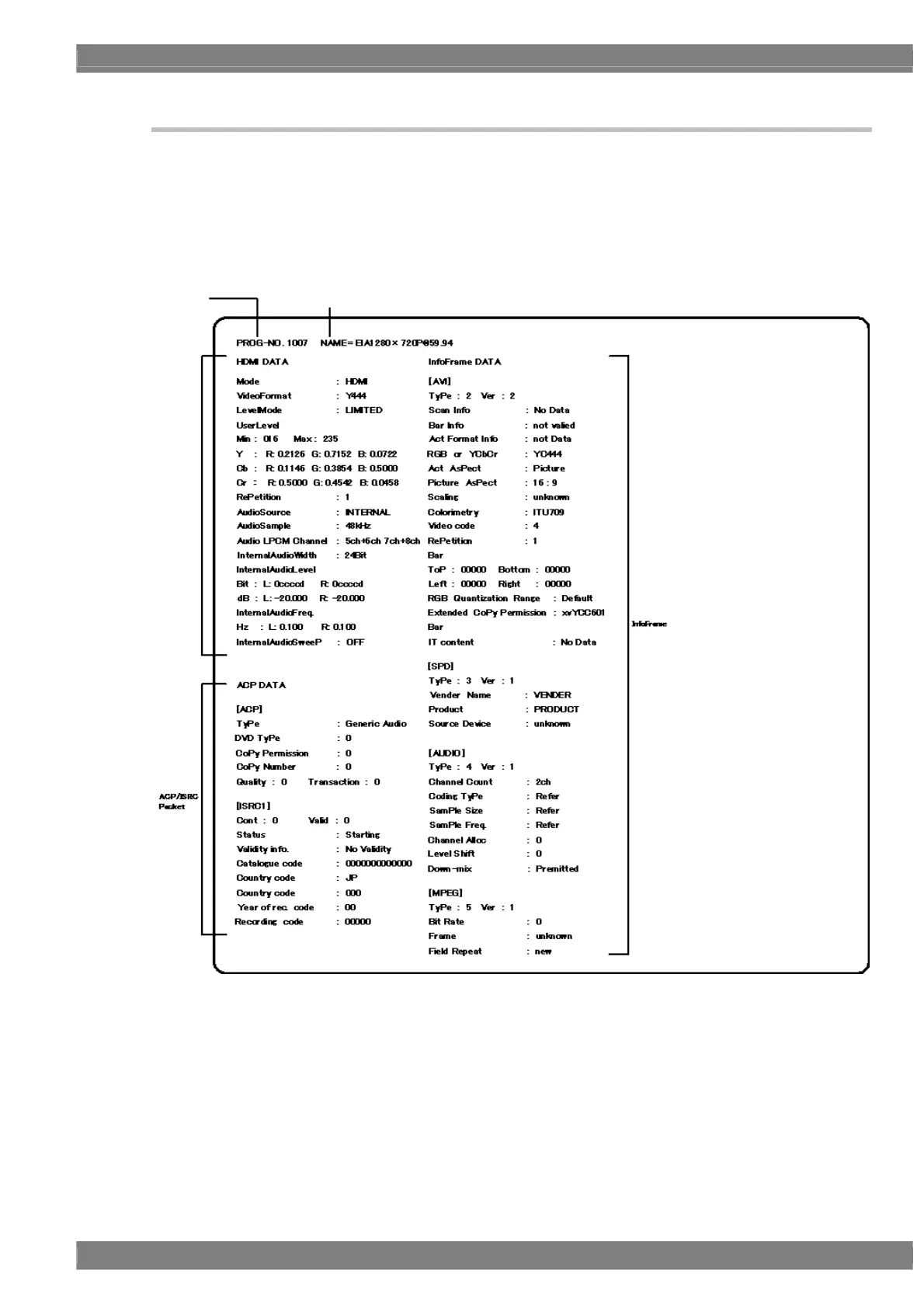

Example: HDMI list when EIA 1280 × 720 and 59.94 Hz output signals are supplied to the display
Program name
Program No.
HDMI output
