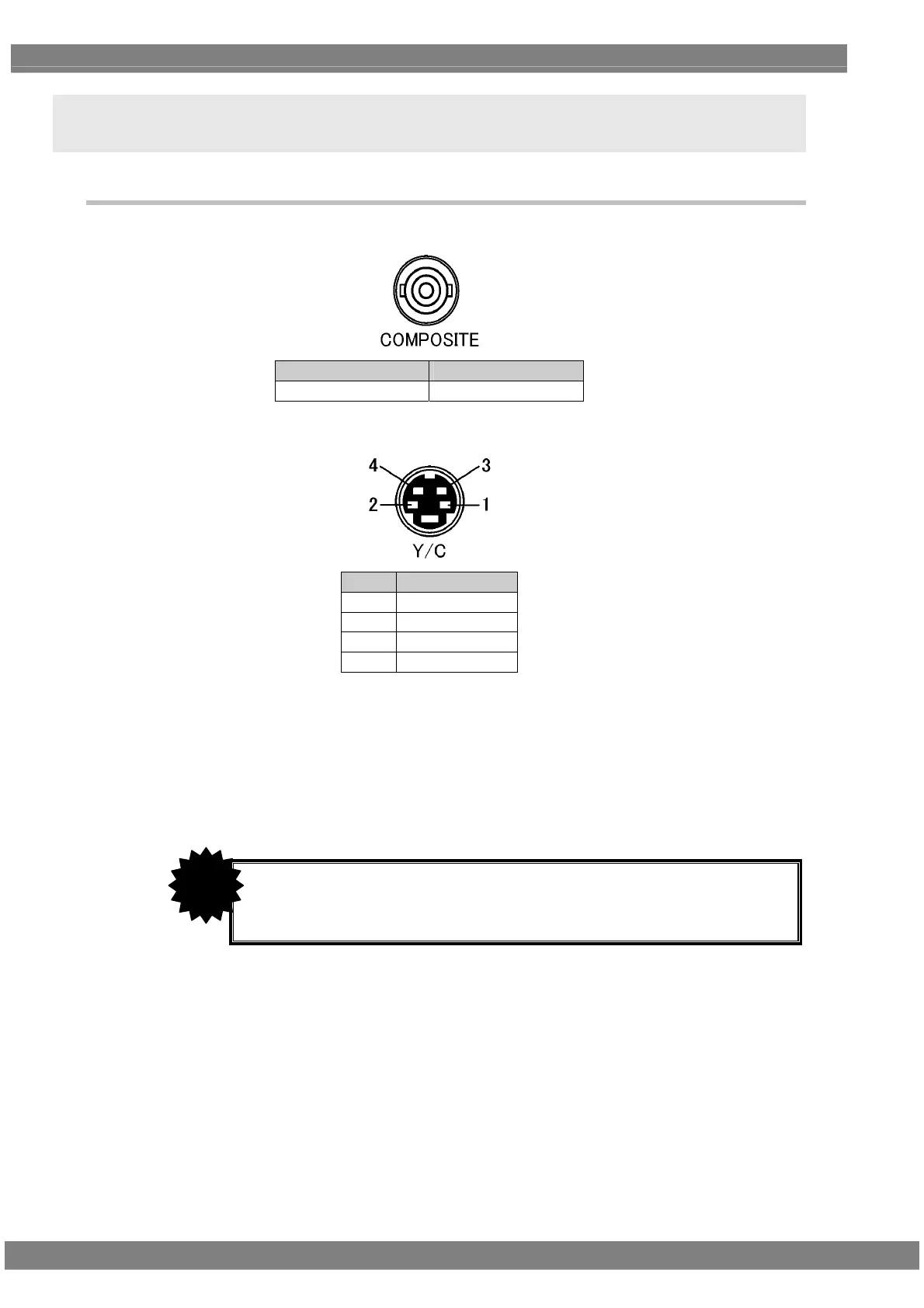

4.8 Composite connector and Y/C connector
(S connector)
4.8.1 Connectors and output signals
 Composite connector
Connector Signal
COMPOSITE Composite video
 Y/C connector (S connector)
Pin no. Signal
1 GND
2 GND
3 Y
4 C
 Concerning the output signals
The following video signals can be output from the composite connector and Y/C connector of the
TV encoder unit.
• NTSC-M, NTSC-J, NTSC-443
• PAL-60, PAL, PAL-M, PAL-N, PAL-Nc
• SECAM
 Difference between VM-1812 and VM-1812-B
VM-1812-B has the following restriction.
- PAL-N, PAL-60 and SECAM are not supported.
- Option Pattern No. 77 (SMPTE Color SVBS) is not supported.
• If the timing of the composite and Y/C signals (such as the period and sync
width data) has been changed from that in the internal program, it may no
longer be possible to draw the patterns on the monitor correctly.
CAUTION
