Chapter 3 TIMING DATA SETTINGS
31

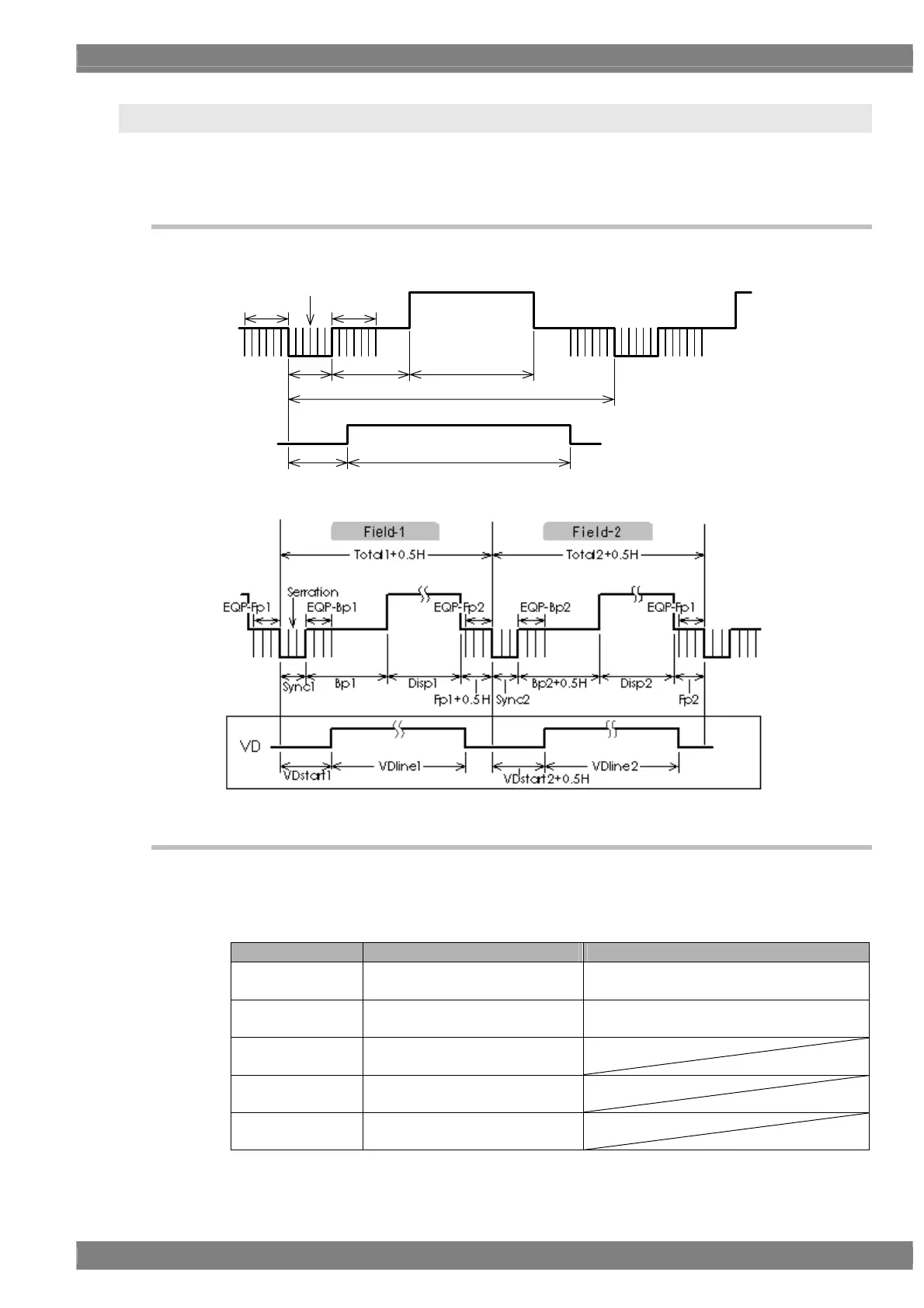

3.2 Vertical timing data editing
The vertical timing setting locations and names of the settings are indicated below.
3.2.1 Vertical timing data
[For progressive scanning]
Serration
EQP-Fp EQP-Bp
VDstart VDline
Disp
Backp
Sync
Total
[For interlaced scanning]
3.2.2 Restrictions on the vertical timing parameters
The table below shows the restrictions on the parameters which can be changed with the vertical timing
data.
<For progressive scanning>
Setting item
Setting range Parameter fixing function
Total
Time display: 0.00 to 999.999 ms
Dot display: 8 to 8192 H
ms setting fixed using SHIFT+2
H setting fixed using SHIFT+3
Disp
Time display: 0.00 to 999.999 ms
Dot display: 2 to 4096 H
ms setting fixed using SHIFT+0
H setting fixed using SHIFT+1
Sync
Time display: 0.00 to 999.999 ms
Dot display: 1 to 99 H
Backp
Time display: 0.00 to 999.999 ms
Dot display: 1 to 8192 H
VDstart , VDline
Time display: 0.00 to 999.999 ms
Dot display: 0 to 8190 H
