PATTERN SETTINGS

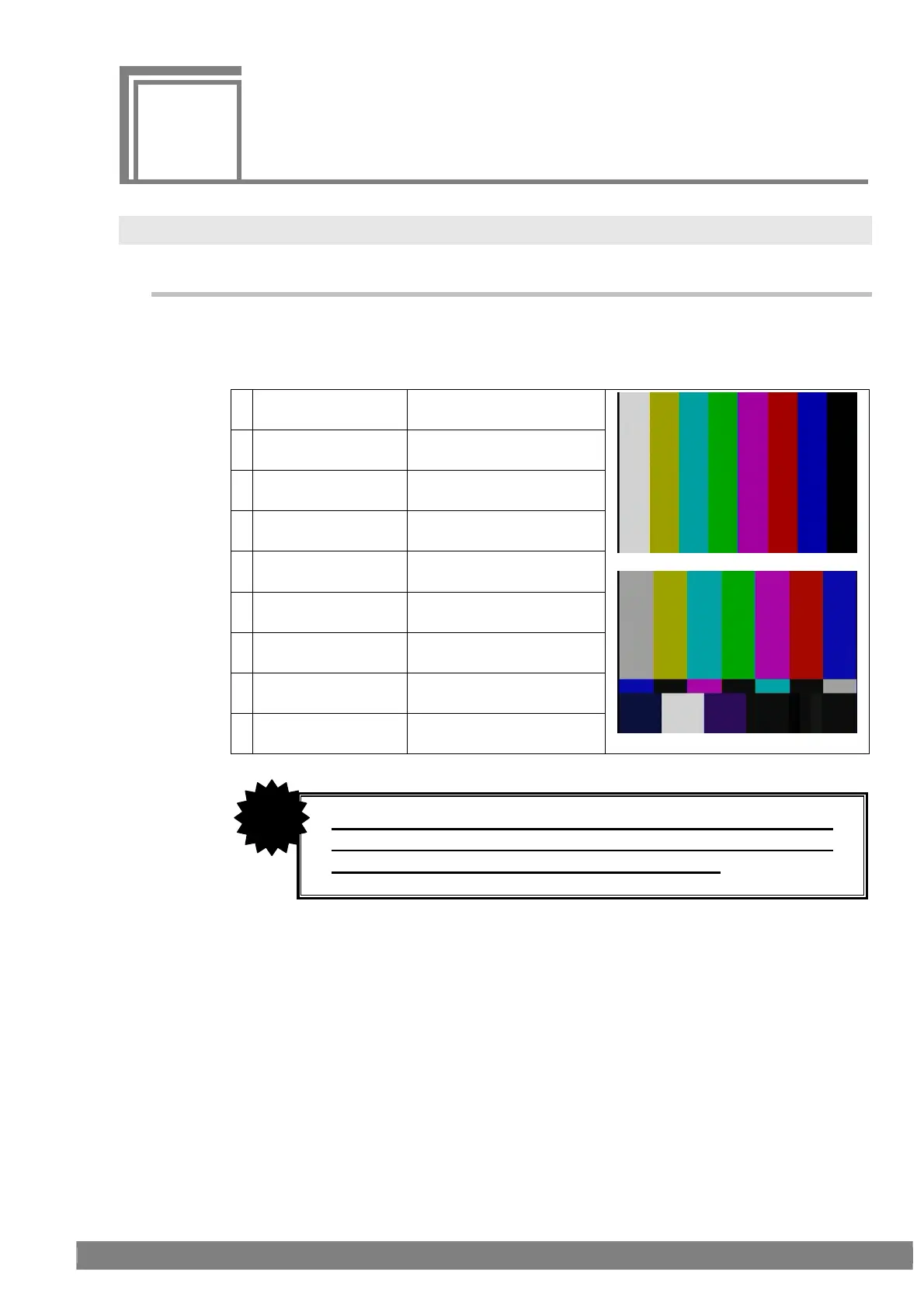

6.1 Color bar patterns
6.1.1 Types of color bar patterns
When color bars have been selected using the pattern key, for instance, color bar patterns can be
selected from among the types listed below.
For further details on pattern selection, refer to “2.1.3 Selecting the pattern data.”
0
CUSTOM
Customized pattern
1
100/100-H
100%/100% color bars
2
100/75-H
100%/75% color bars
3
75/75-H
75%/75% color bars
4
SMPTE
SMPTE color bars
5
RGBW-V
Horizontal color bars
6
xvYCC 4%
xvYCC 4% color bars
7
xvYCC 8%
xvYCC 8% color bars
8
xvYCC 12%
xvYCC 12% color bars
75%/75% color bars
SMPTE color bars
The xvYCC color bars are turned off in the SCART output
(RGB) of the TV encoder unit. xvYCC Patterns from othe
r
output than HDMI is not displayed correctly.
CAUTION
