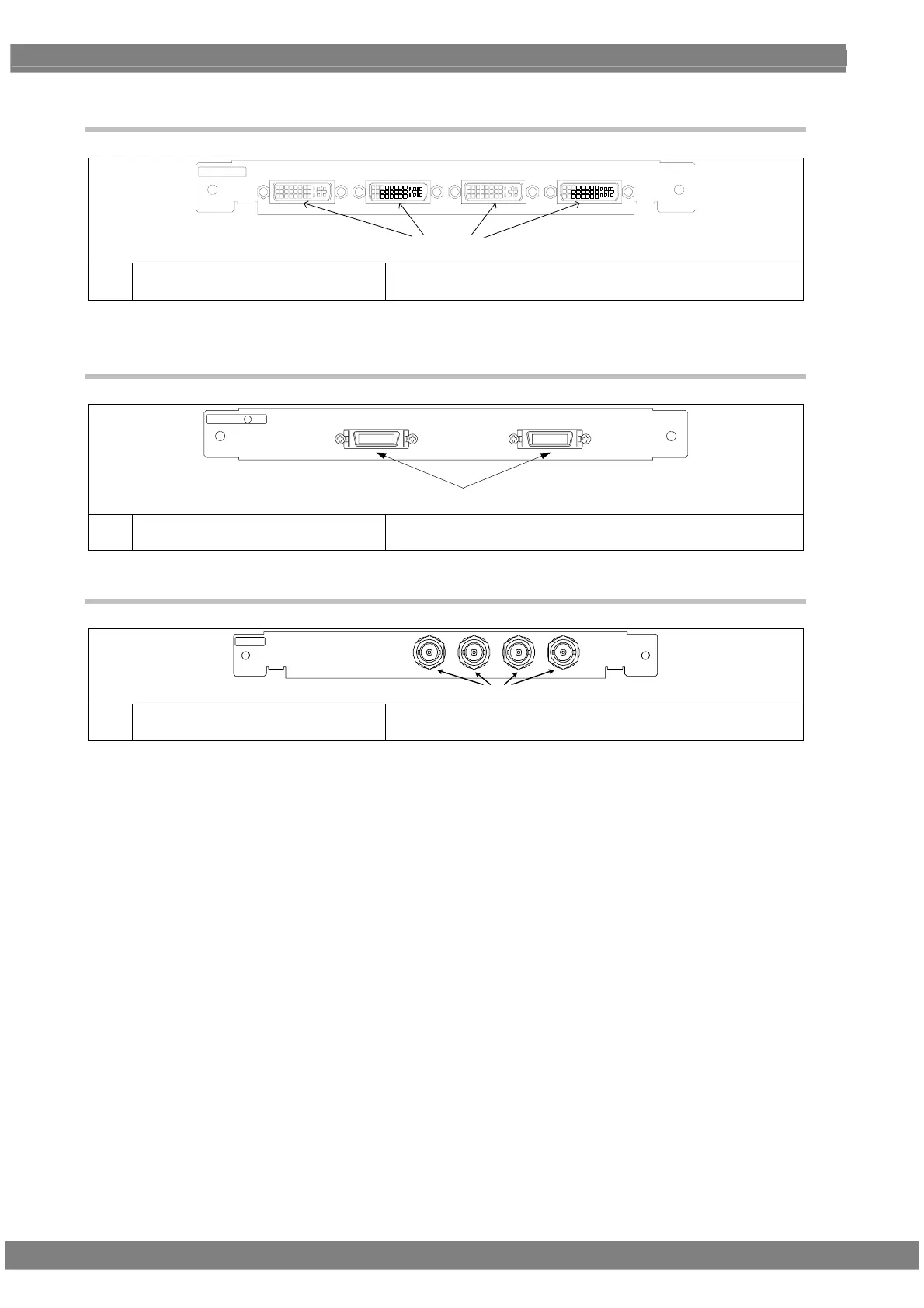

1.5.9 4K2K iTMDS Quad unit (VM-1824-A)
DVI-D 2 DVI-D 1
iTMDS Quad
DVI-D 4 DVI-D 3
(26)
(25) iTMDS (DVI) output connectors Only Digital signals can be output here. (iTMDS connector)
Single link is supported.
1.5.10 V-by-One HS unit (VM-1825)
V-by-One HS
R
CH2 CH1
(27)
(27) V-by-One HS output connectors
These connectors support up to 4 lanes with one channel (and 8
lanes with two channels).
1.5.11 SDI unit (VM-1821)
SDI4 SDI3 SDI2 SDI1
SDI
(28)
(28) SDI output connectors
These connectors support four SD, HD or 3G signals or two Dual
Link signals.
