Chapter 4 INTERFACE SETTINGS
181

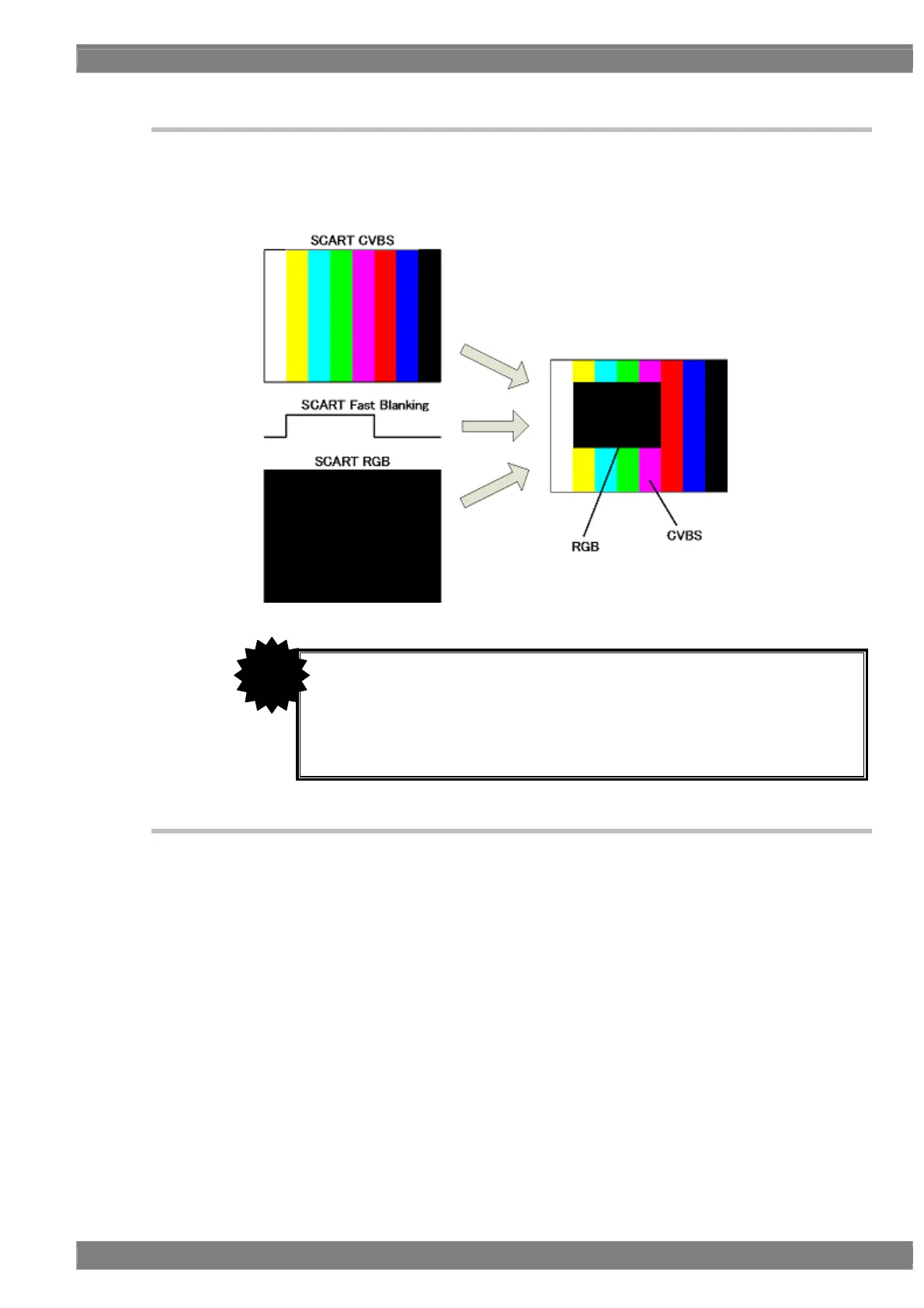

4.11.5 Concerning the fast blanking signal
The fast blanking signal is a control signal for selecting the composite output and RGB output video
signals which are output from the 16-pin SCART connector, and displaying them. By using it, displays
can be shown as with on-screen displays. When the fast blanking signal level is low (0 V), the CVBS
video signals are displayed on the monitor; when it is high (5 V), the RGB video signals are displayed.
4.11.6 Audio settings
For details on the setting procedure, refer to “4.15 Analog audio settings.”
• With the VG-870B/871B/873/874 can not output different images from the
composite and RGB output pins of the SCART connector. If COMPOSITE or
Y/C has been set for “Output Select” in the SCART setting, a black-filled
image is output to the RGB output, if RGB has been set, the same image as
the composite pin is output.
CAUTION
