142
[1] 16Bit (Single Link)
Sixteen-bit images are output using the channel 1 of the Master paired up with the channel 1 of the Slave.
The higher 8 bits are output to channel 1 of the Master and the lower 8 bits to channel 1 of the Slave.
Also, the 16-bit images are output using channel 2 of the Master paired up with channel 2 of the Slave.
The higher 8 bits are output to channel 2 of the Master and the lower 8 bits to channel 2 of the Slave.

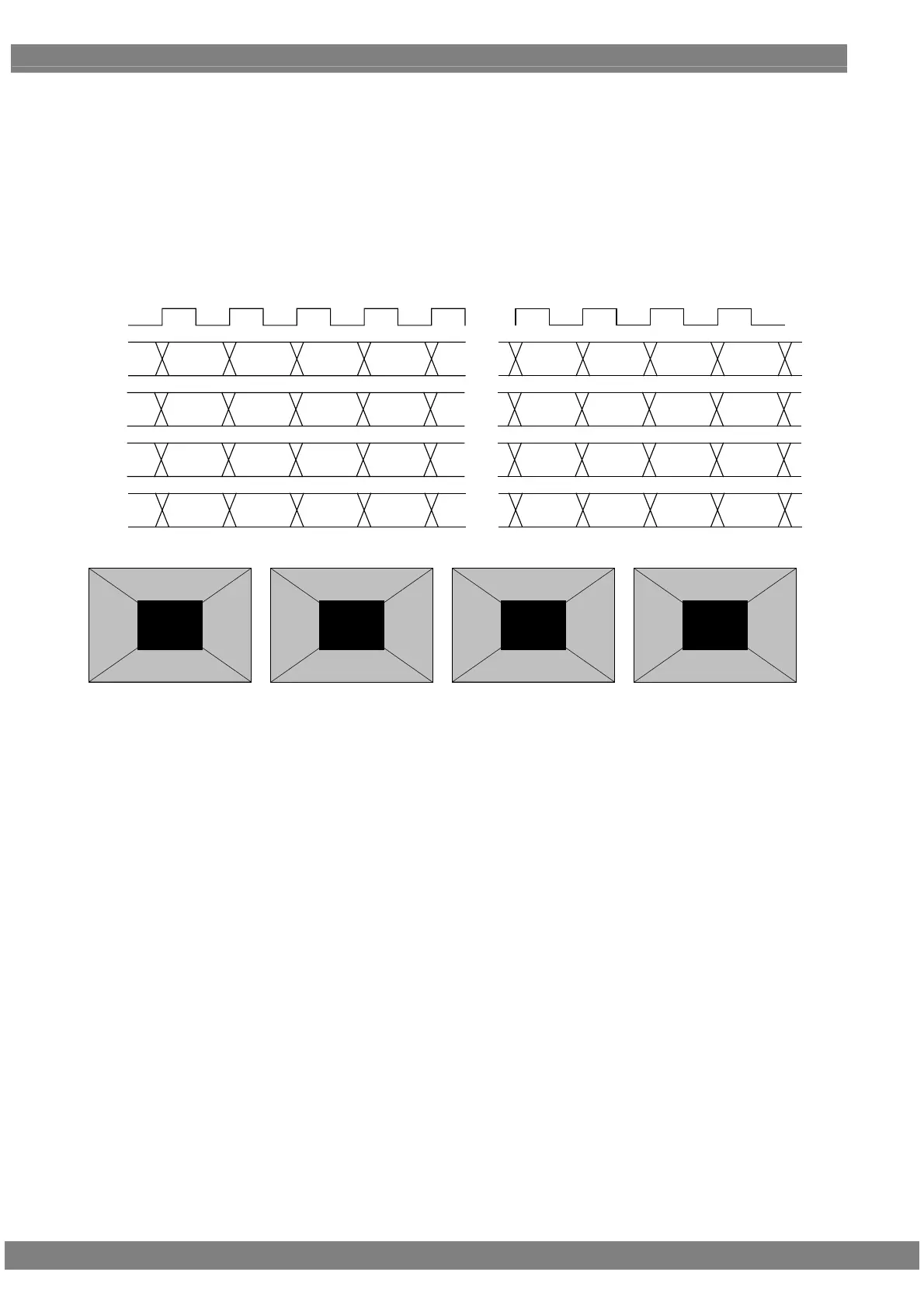

Given here as an example for explanatory purposes is a case where the resolution is 1280 × 1024, the dot clock
frequency is 108 MHz with the 16 bits output.
D 0 D 1 D 2 D 3
・・・
・・・
D 1276 D 1277 D 1278 D 1279
CLK
108MHz
D 0 D 1 D 2 D 3
・・・
D 1276 D 1277 D 1278 D 1279
1CH
2CH
3CH
4CH
D 0 D 1 D 2 D 3
・・・
D 1276 D 1277 D 1278 D 1279
D 0 D 1 D 2 D 3
・・・
D 1276 D 1277 D 1278 D 1279
[15：8] [15：8] [15：8] [15：8] [15：8] [15：8] [15：8] [15：8]
[7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0]
[15：8] [15：8] [15：8] [15：8] [15：8] [15：8] [15：8] [15：8]
[7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0] [7：0]
Upper Bit [15:8] Lower Bit [7:0] Upper Bit [15:8] Lower Bit [7:0]
1CH 2CH 3CH 4CH
