Chapter 4 INTERFACE SETTINGS
265

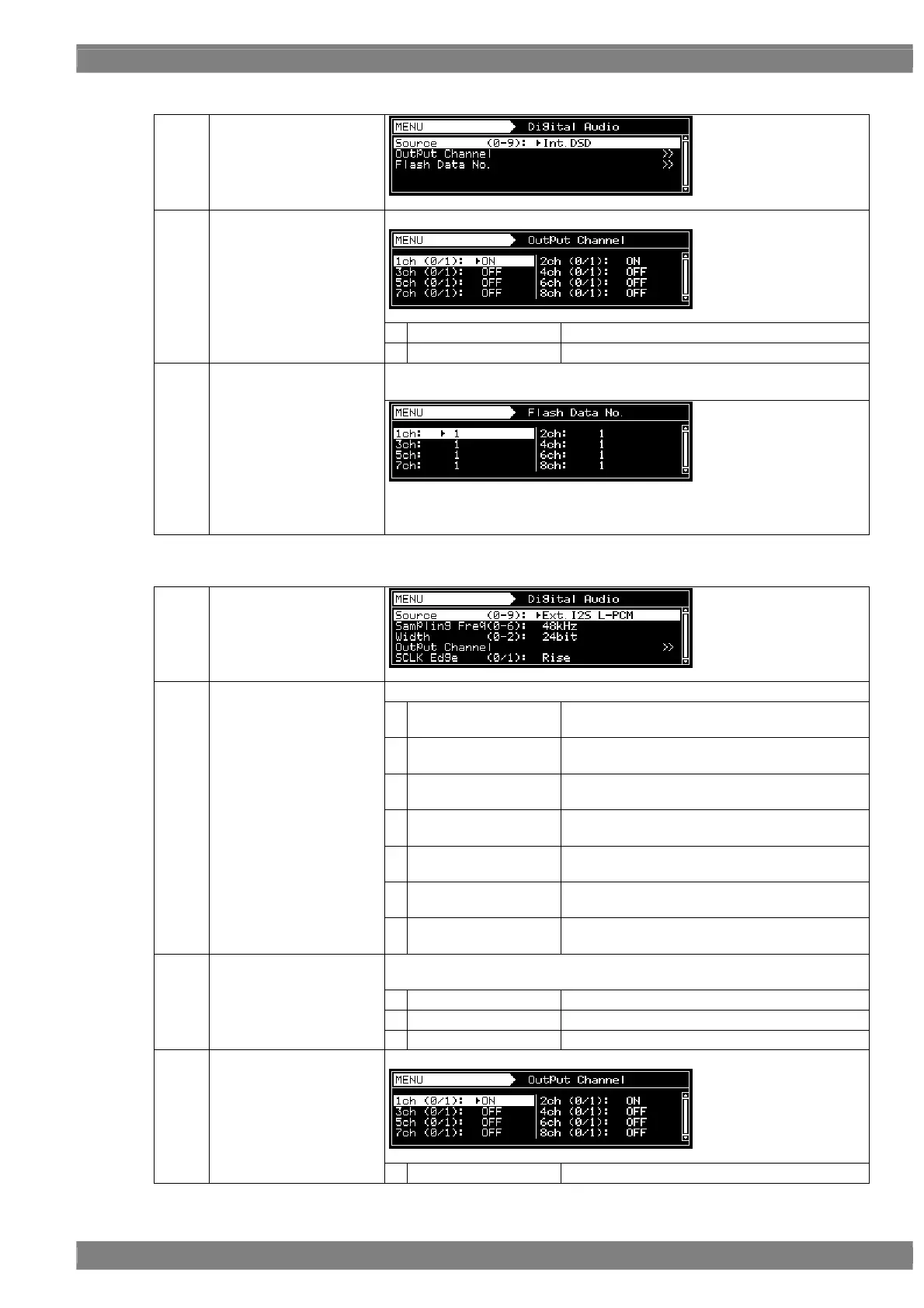

<Int. DSD setting parameters> (Option)
Setting menu display
This sets ON or OFF for channels 1 to 8 of the embedded audio.
0
OFF
No output.
(1)
Output Channel
1
ON
Output.
Set the audio data to be output in each channel.
Setting range: 1 to 99
(2)
Flash Data No.
Register audio data is set here.
* For further details on registering the audio data, refer to “4.16.3 Flash
data entry (option).”
<Ext. I2S L-PCM setting parameters> (Option)
Setting menu display
Set the sampling frequency of the audio signals which are input here.
0
32 KHz
The signals are input/output with a 32 kHz
sampling frequency.
1
44.1 KHz
The signals are input/output with a 44.1 kHz
sampling frequency.
2
48 KHz
The signals are input/output with a 48 kHz
sampling frequency.
3
88.2 KHz
The signals are input/output with a 88.2 kHz
sampling frequency.
4
96 KHz
The signals are input/output with a 96 kHz
sampling frequency.
5
176.4 KHz
The signals are input/output with a 176.4 kHz
sampling frequency.
(1) Sampling Frequency
(0-6)
6
192 KHz
The signals are input/output with a 192 kHz
sampling frequency.
This sets the bit length of the input audio data. (Only the channel status bits
are set.)
0
16 BIT
The data is input/output as 16 bits.
1
20 BIT
The data is input/output as 20 bits.
(2)
Width (0-2)
2
24 BIT
The data is input/output as 24 bits.
Set ON/OFF of CH1 to 8 of the input audio data.
(3)
Output Channel
0
OFF
The data is not input/output.
To Next Page
