Chapter 3 TIMING DATA SETTINGS
39

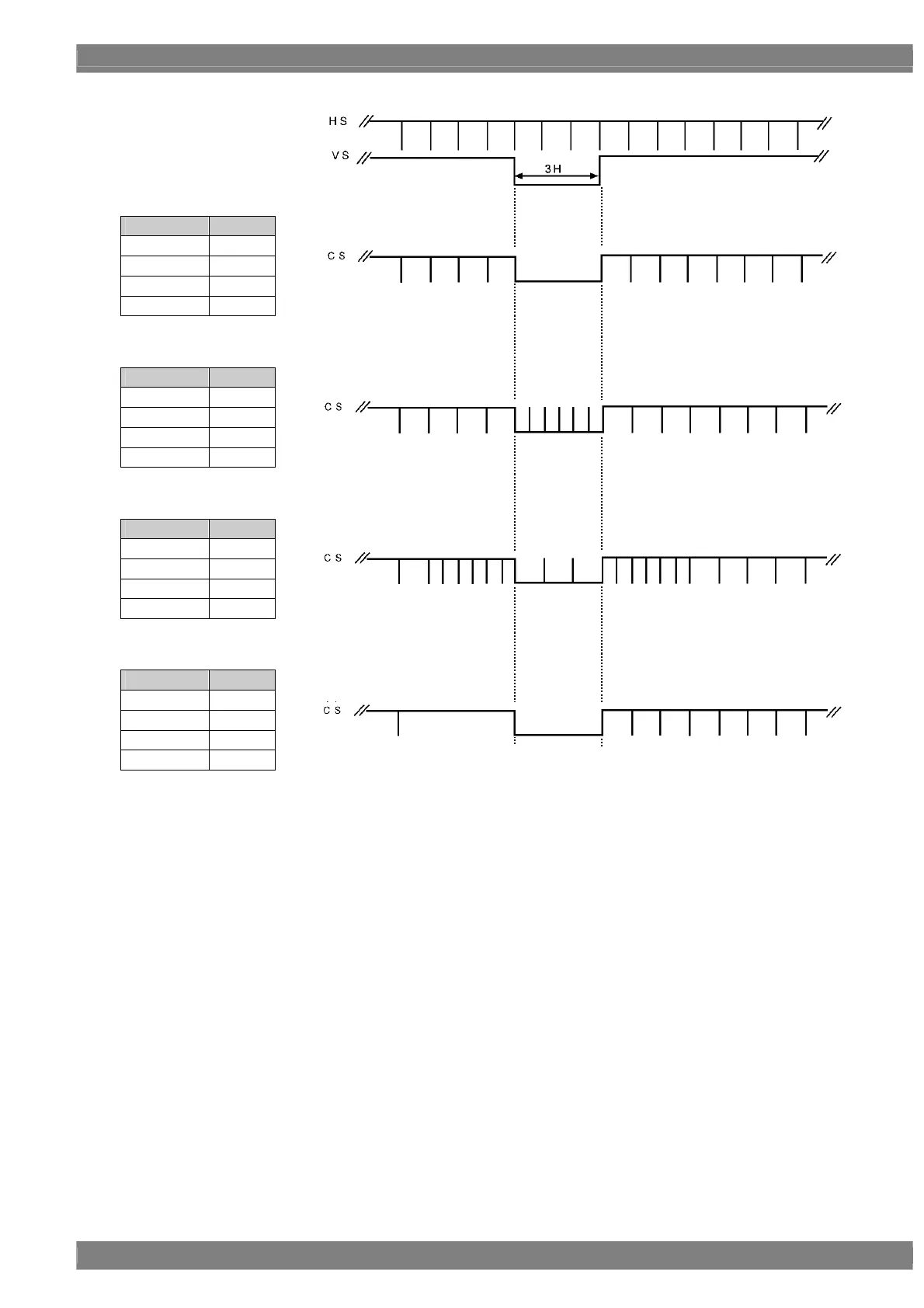

Example: Four examples of the EQP-Fp, EQP-Bp, EQP and Serration settings are shown below.
<Setting example 1>
Setting item Setting
EQP-Fp 0H
EQP-Bp 0H
EQP OFF
Serration OFF
<Setting example 2>
Setting item Setting
EQP-Fp 0H
EQP-Bp 0H
EQP OFF
Serration 0.5H
<Setting example 3>
Setting item Setting
EQP-Fp 3H
EQP-Bp 3H
EQP ON
Serration 1H
<Setting example 4>
Setting item Setting
EQP-Fp 3H
EQP-Bp 0H
EQP OFF
Serration OFF
