Set Up and Maintenance
166 9836 3521 01

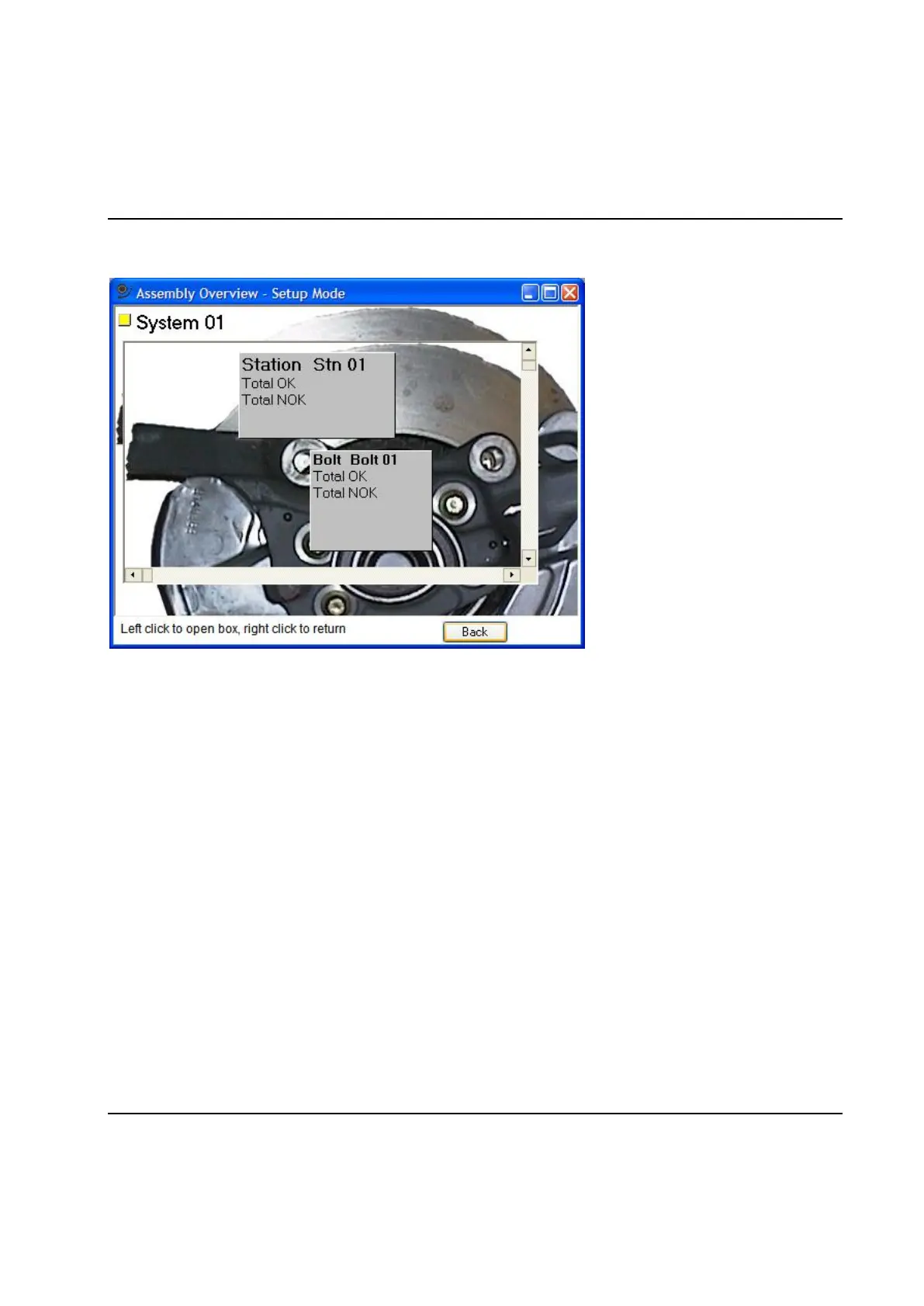

The Assembly Overview form in Set Up mode
This form is used to define the position and size of the different station and bolt boxes. The layout is
modified directly in the displayed picture by using the mouse.
To change the positions of a box move the mouse pointer to the upper left corner of the box. When the
mouse pointer changes to a vertical arrow pointing upwards, press the left mouse button and reposition
the box.
To change the sizes of a box move the mouse pointer to the lower right corner of the box. When the
mouse pointer changes to a diagonal arrow, press the left mouse button and resize the box.
All boxes of a given type will have the same size and display the same variables.
When you are satisfied with the settings press the Apply button in the Assembly Overview Set Up form to
save the settings of the current Station View.
