Tightening
290 9836 3521 01
6.5.2.13 TD - Run until Torque has decreased
Step type Id: 10
Parameters: T (Torque), A (Angle), DIR (Direction)
Function: Run spindle, in DIR direction, until angle A is reached. The rotation continues but from that
point the torque is measured. The step stops when the measured torque is less than, or
equal to, T.

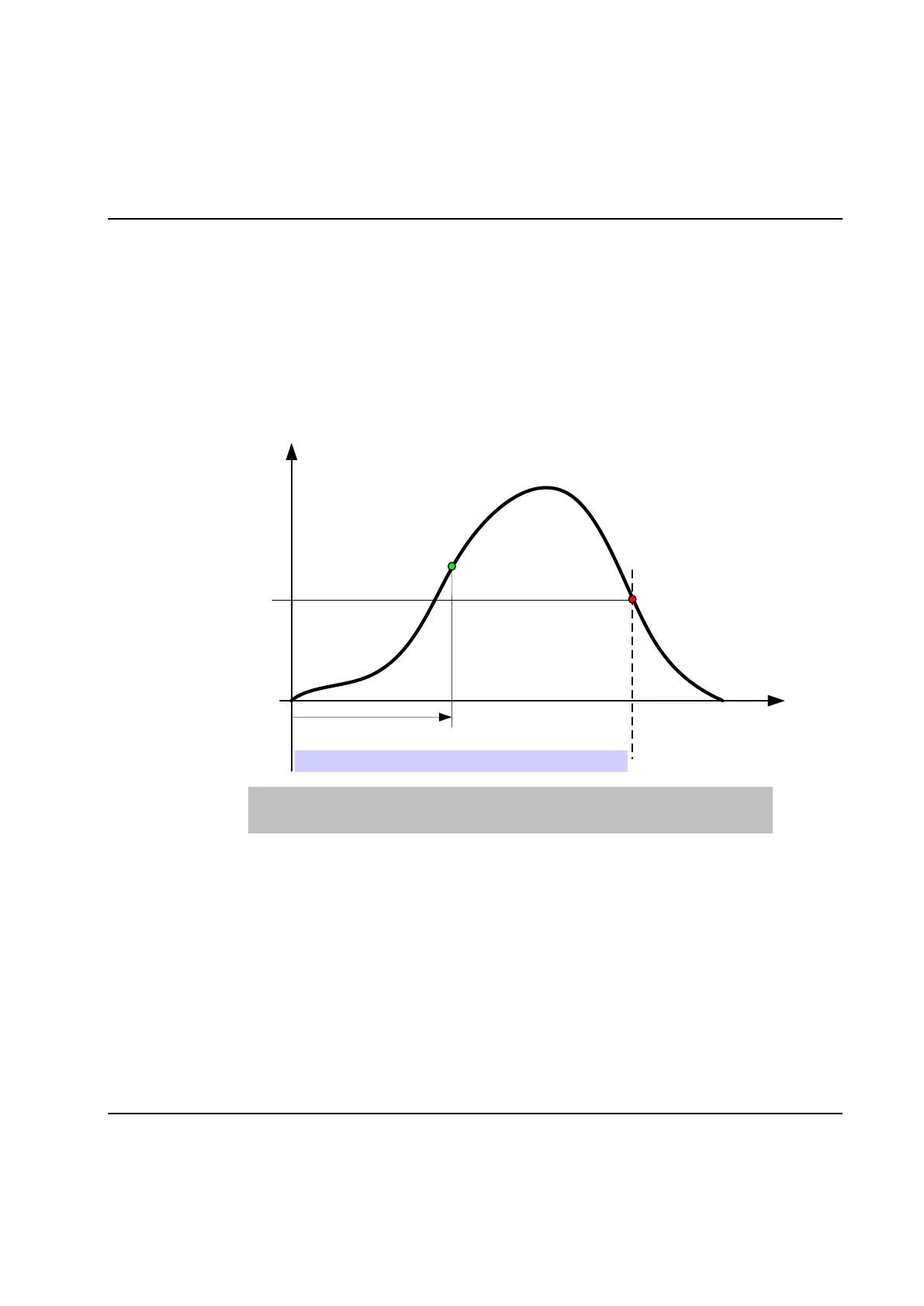

Diagram:
Angle
Torque
A Angle
T Torque
Step
A
T
Trace: Torque T is shown as a horizontal line from step start to step stop in trace when Torque vs.
Time is selected. Control parameters must be enabled in the trace form (see View of
trace curves).
