Set Up and Maintenance
9836 3521 01 161
4.7.1 Local I/O

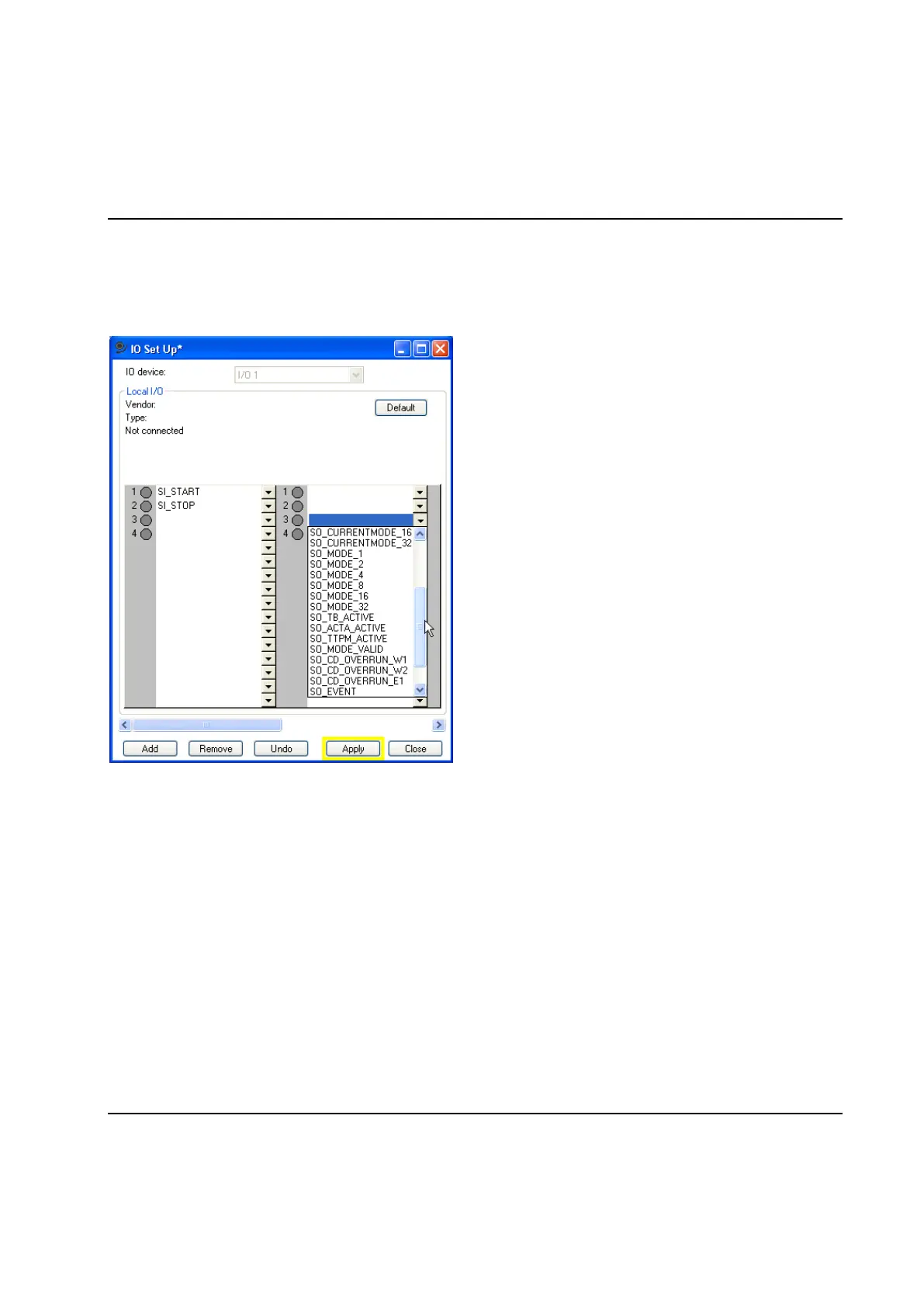

Local I/O is visible as the first node of the I/O device. In order to map the local I/O, add an I/O device to
the setup and open the I/O form The Local I/O is mapped by selecting PLC signals in the comboboxes in
the form, like for the other I/O nodes.
As default, I/O node 1 is part of the I/O device. For users only needing the Local I/O, pressing the Remove
button will remove I/O node 1 from the setup.
