3.6 Viewing
If you have your console PC connected to the tightening controllers (connected), you can view several
items in the system. You can start View displays by use of the menu View or by pressing one of the
corresponding buttons on the tool bar.
3.6.1 Assembly Overview

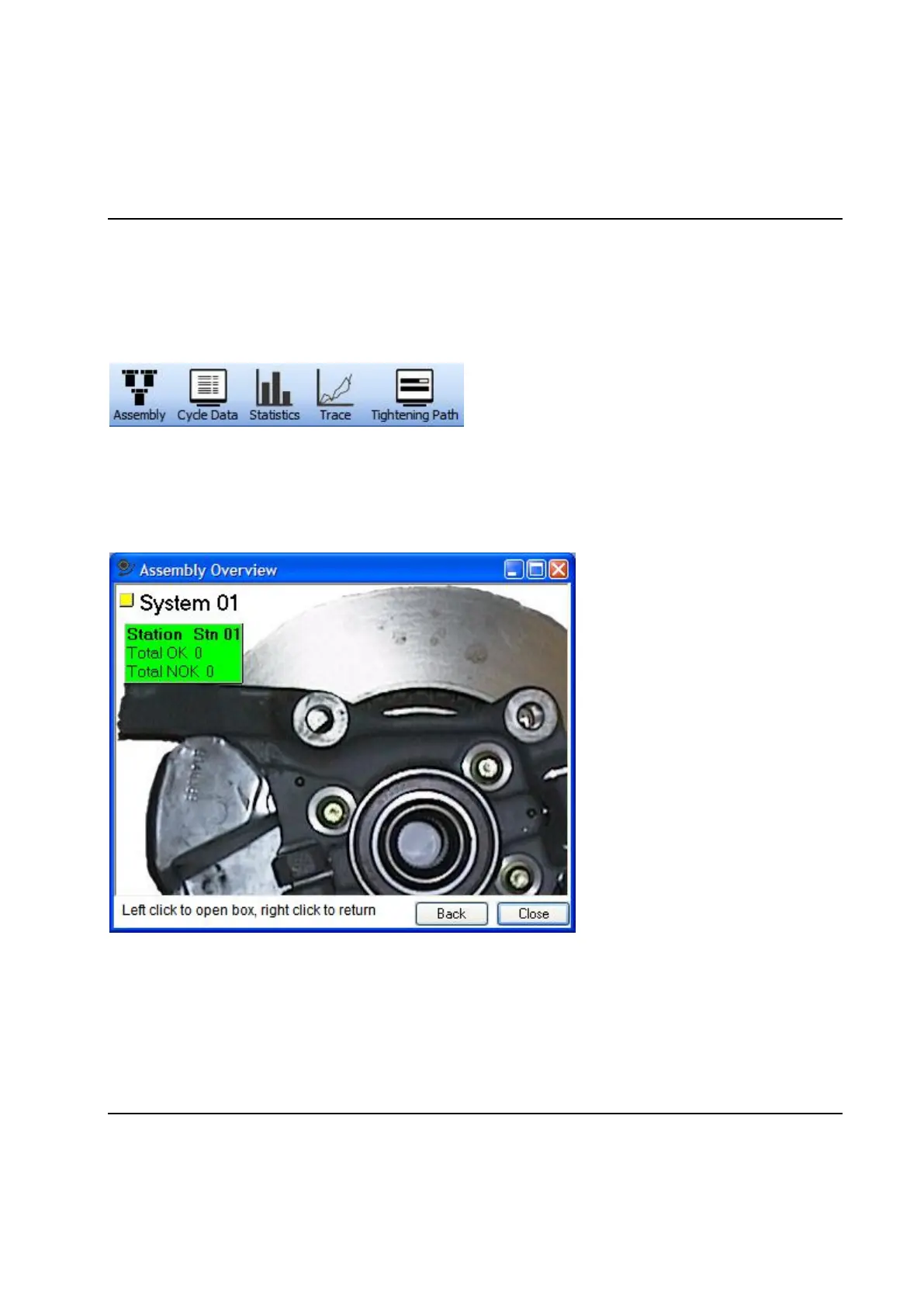

The Assembly Overview displays current status of the system, its stations and bolts using a descriptive
picture of the object being assembled. You can easily add pictures as background for the system and the
respective station. See chapter: Assembly Overview Set Up form for instructions.
