Atlas Copco PowerMACS 4000 User Manual

Basic Functions
68 9836 3521 01

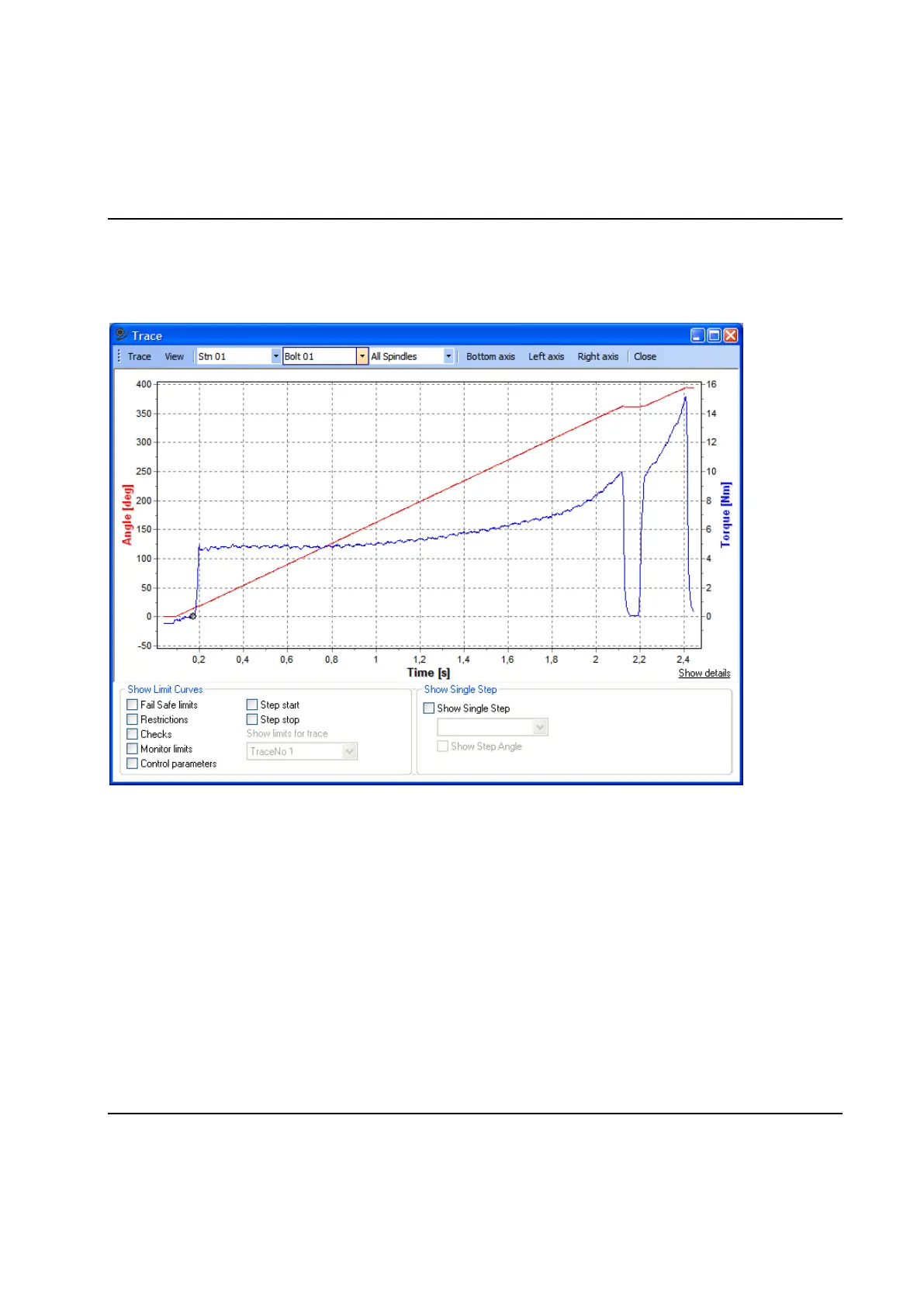

3.6.5 View Trace
The Trace viewing window is used to present the traces of current and prior cycles.
For each individual bolt's tightening cycle a trace can be generated and recorded. The maximum length of
a trace is 20 seconds. If a trace is recorded for longer time than 20 seconds the oldest values will be
overwritten with new samples.
The conditions for when a trace is started is configured under the general settings for each program.
