Atlas Copco PowerMACS 4000

Peripheral Devices
9836 3521 01 473
8.11.5 I-P.M.

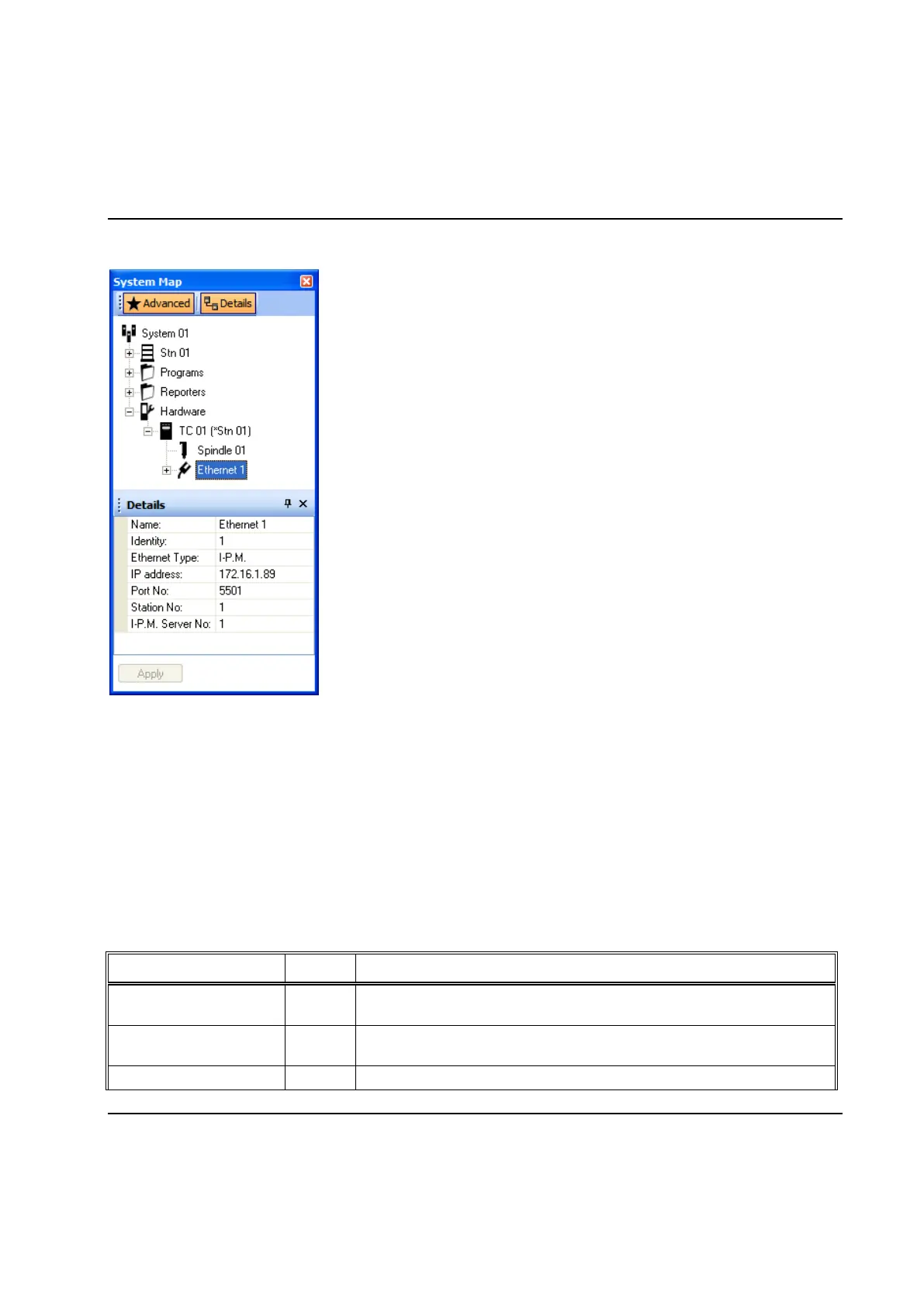

Specify in IP address the TCP/IP address of the I-P.M. server.
Specify in Port No which port to use in the I-P.M. (default is 5501)
Station No specifies the station number this station use to identify itself in telegrams sent to I-P.M.
Set I-P.M. Server No to the server number of the I-P.M. server (shall normally be 1).
8.11.5.1 Mapping of data
The I-P.M. implementation is done following version 3.1.11 of the I-P.M. specification with the following
additional information.
Telegram Header
Field
Bytes
Value sent
Source
8
“AC.0001 “, the number is the station, number selected in the device in
WinTC, numbers between 1 and 9999 are possible to use
Destination
8
“IPM.0001”, the number is the IPM number selected in the device in
WinTC, numbers between 1 and 9999 are possible to use
Identification
8
“IPM-DATA”
