Peripheral Devices
9836 3521 01 419
Once a component is selected configure the digital IO signal to connect to the component and additional
properties (flashing, duration etc.).
It is possible to select the number of lamps on the indicator box by selecting the “None” value as
Component type.
When connected to a system the form will show show the signal values in realtime and no editing is
possible.

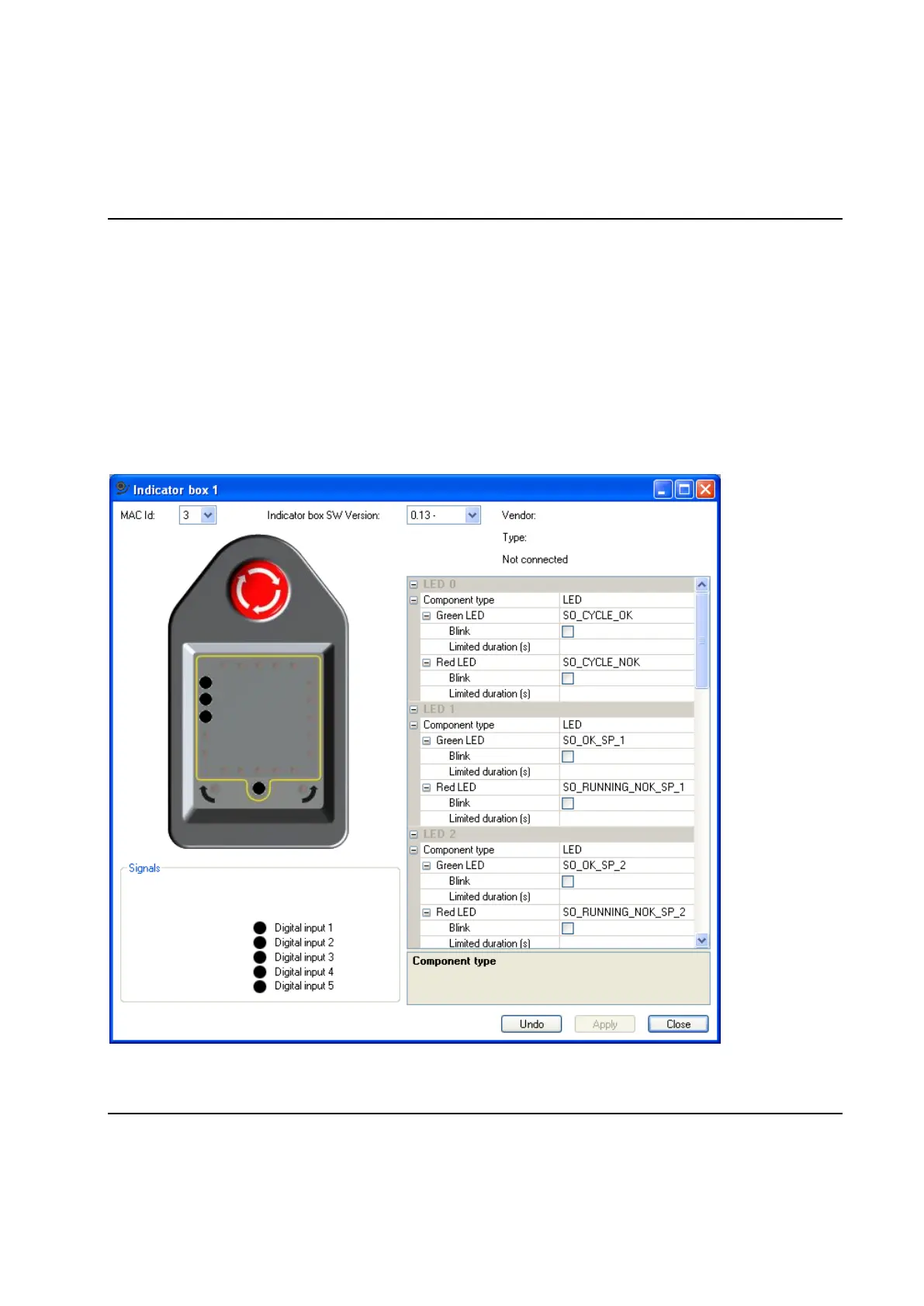

8.4.2 Indicator Box
To access the indicator box configuration window, add a indicator box device and double-click on it in the
system map.
