Basic Functions
58 9836 3521 01
The color of the items indicates the current status of the item.
Color
Status
Green
OK - Idle after OK cycle
Red
NOK – Idle after NOK cycle
Orange
NOKRM - Idle NOK only due to reject management after a cycle. For bolts only
Yellow
Running cycle
Blue
Bolt is disconnected. This color is only used if the checkbox Display disconnected bolts with blue
color in the Options form is checked.
If not checked then disconnected OK bolts will be green and disconnected NOK bolts will be red.
For bolts only

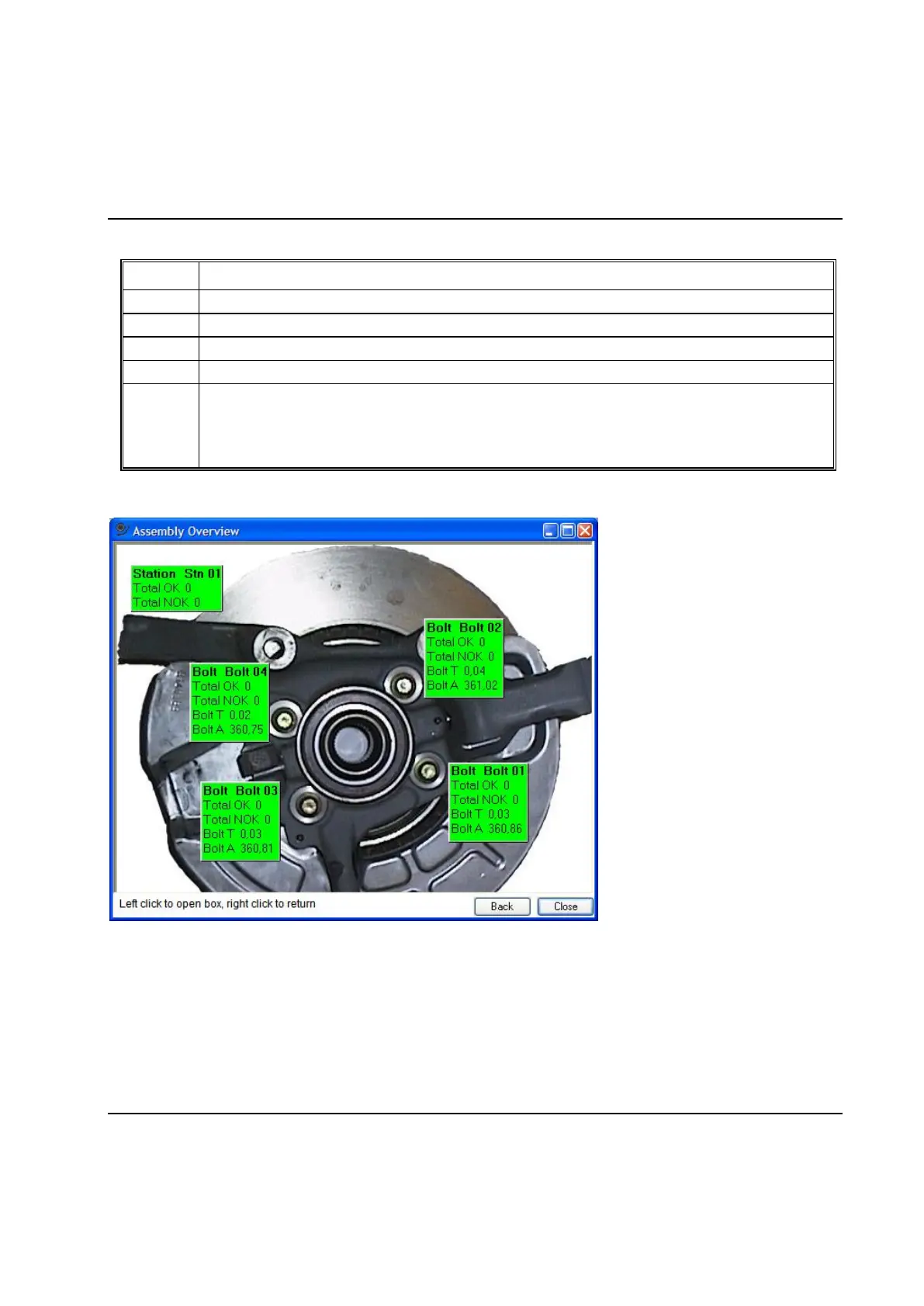

If you want more information on the stations or bolts, expand the box by clicking on the box of interest.
The information that is displayed in the different boxes and the size and position of them is set up using
the Assembly Overview Set Up form.
If you have several stations in your PowerMACS system they can all be displayed in expanded mode over
a common system background picture.
When a cycle is started, the station box and bolt boxes (for running bolts) are cleared of its result
information and the background is set to yellow. For bolt boxes of bolts that are not started the previous
