Set Up and Maintenance
9836 3521 01 185

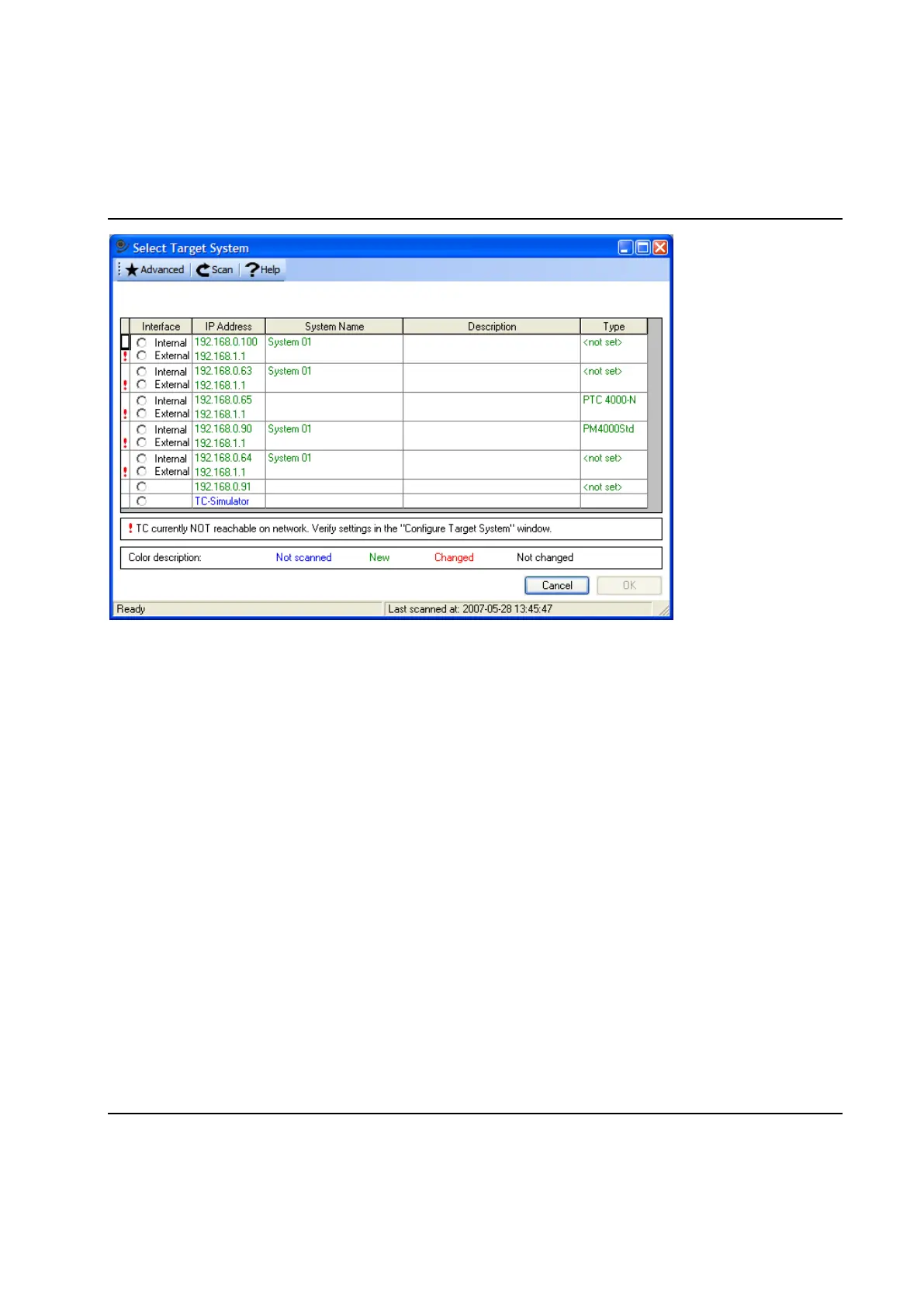

All System TCs found during scan are compared to the contents of the currently selected Network
Configuration file. Depending on the differences the rows in the list is marked with a color.
Not scanned (Blue) – The TC in the list was not found on the net. When a network configuration
file is opened, all rows are marked blue.
New (Green) – A TC that was not in the list was found on the net.
Changed (Red) – The attributes of the found TC are different compared to the previously known.
Note that the Description field is not compared since it is not present in the TC it self.
Not changed (Black) – The attributes of the found TC is the same as the previously known.
Select the PowerMACS system to connect to by clicking one of the radio buttons in the Select column.
ToolsTalk PowerMACS does only communicate with the System TC (first TC in a system) so therefore
only one selection need to be made.
Choose TC-Simulator if you do not have a real target system to connect to but still want to demonstrate
the on-line functions of ToolsTalk PowerMACS.
TCs that are not possible to connect to due to network settings are indicated with a red exclamation mark.
The type of problem is not displayed in detail in this window. It is however possible to select such a TC in
this list but before ToolsTalk PowerMACS can connect to the system; the problem must be corrected.
Correcting such a problem can be done by using the “Configure Target Systems” window.
To create, or edit, a PowerMACS Network Configuration file use the Add..., Edit... and Remove buttons
to insert, change and remove entries in the list. When done editing, save the current configuration to file
using the Save button. Since the file name is used to identify the network you should give the file a
descriptive name. Editing the file can be done without being connected to the network.
