Tightening
9836 3521 01 269
Suppose we want to make two programs, one with target torque 50 Nm and one with target torque 75 Nm
and we want to make sure the monitoring Peak Torque check is within 3 % of the target torque in order to
have an OK cycle.

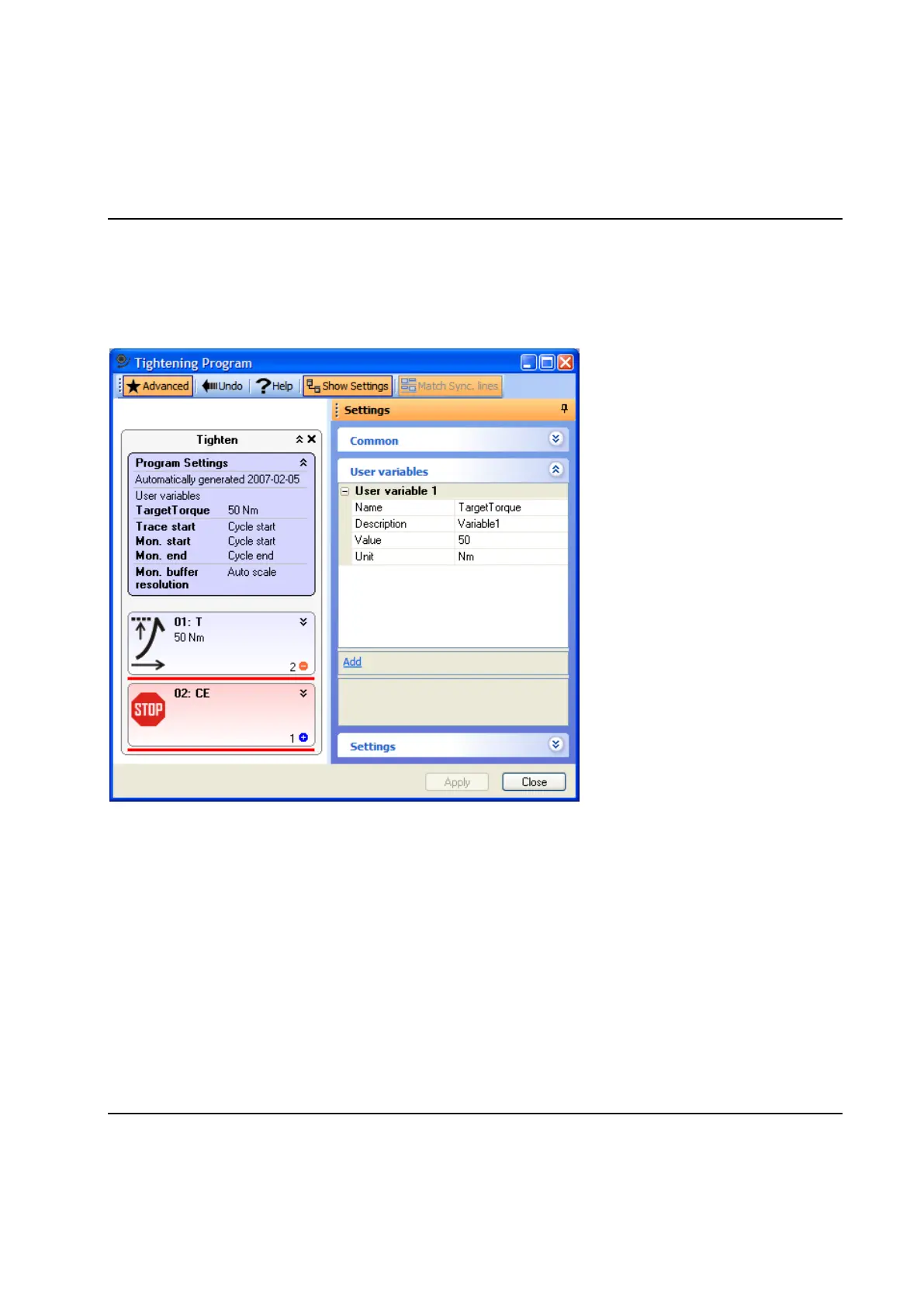

Then we can create one program with user defined variables, we call this program Tighten. One variable
is defined TargetTorque and we set this to 50 Nm (our first program).
Then we add a Peak Torque to the CE monitoring and enter the high and low limits using the
TargetTorque user variable.
