Atlas Copco PowerMACS 4000 User Manual

System Architecture
9836 3521 01 31
The Reset emergency stop button acknowledges an emergency stop for a station.
Sockets on the PTC

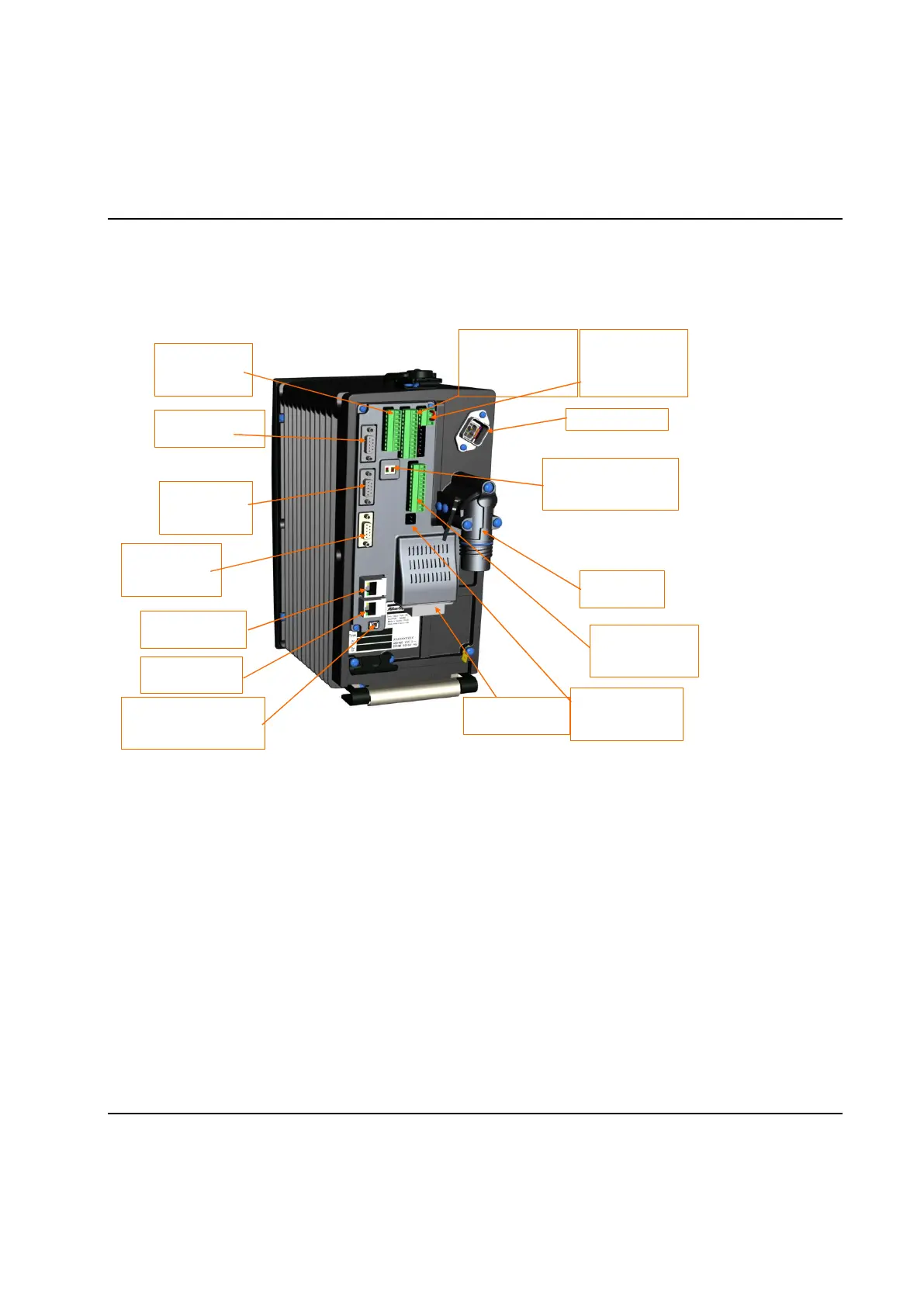

The following picture shows the input and output sockets on the PTC.
Serial 2: 15 pole
D-sub HD
RS232/RS422
Serial 1: 9 pole
D-sub
RS232/RS485
MACS I/O: 9 pole
D-sub
Dig In: 10 pole
Phoenix. 4
Digital inputs
Em Stop In: 12 pole
Phoenix
Emergency stop in
and MACS I/O
Relay Out 12 pole
Phoenix
4 Relay Outputs
24V input: 2 pole
Phoenix
24 V input
Int Eth: RJ45
Internal Ethernet
Ext Eth: RJ45
External Ethernet
Optional Anybus
CC module
ES: 2 pole JST
Power Supply for
Ethernet Switch only
Dip switch for
RS485 and MACS I/O
Termination
Em Stop Out: 12
pole Phoenix
Emergency stop
out
Power connector
QST Spindle
Connector
