Atlas Copco PowerMACS 4000 User Manual

Tightening
9836 3521 01 323

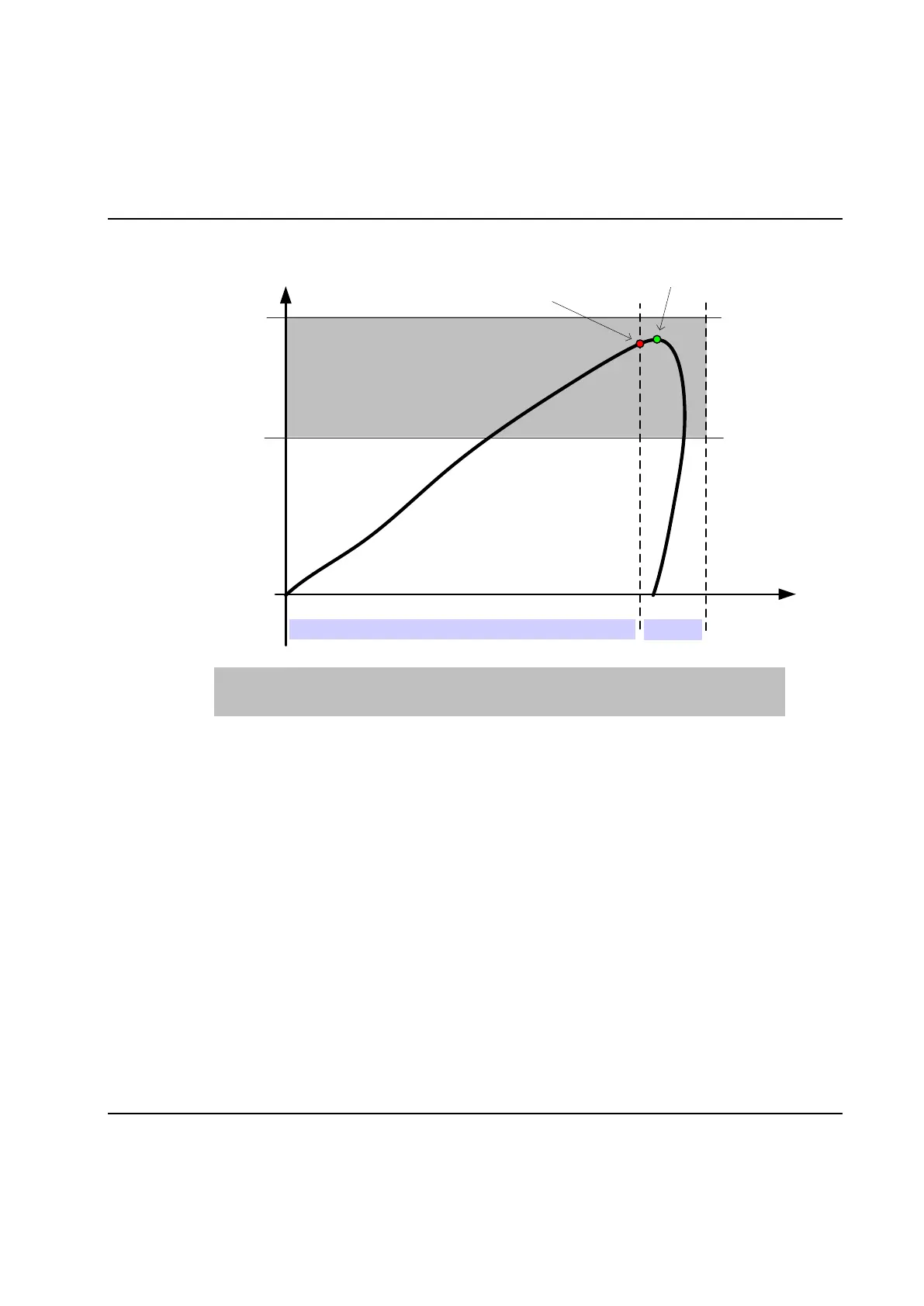

Diagram:
Angle
Torque
TH
TH Torque High OSHT Overshoot time
TL Torque Low
Step
TL
OSHT
Shut-off point
Peak
Torque
Result var.: Peak T, Peak T1, Peak T2, Peak T3 (Peak torque).
Alarms: Step peak torque high (PTH) and step peak torque low (PTL).
Trace: TH and TL are shown in trace as horizontal lines from step start to step stop when post step
check time has elapsed. The lines are only shown when Torque vs. Time is selected.
