System Architecture
9836 3521 01 33
Sockets on the TC

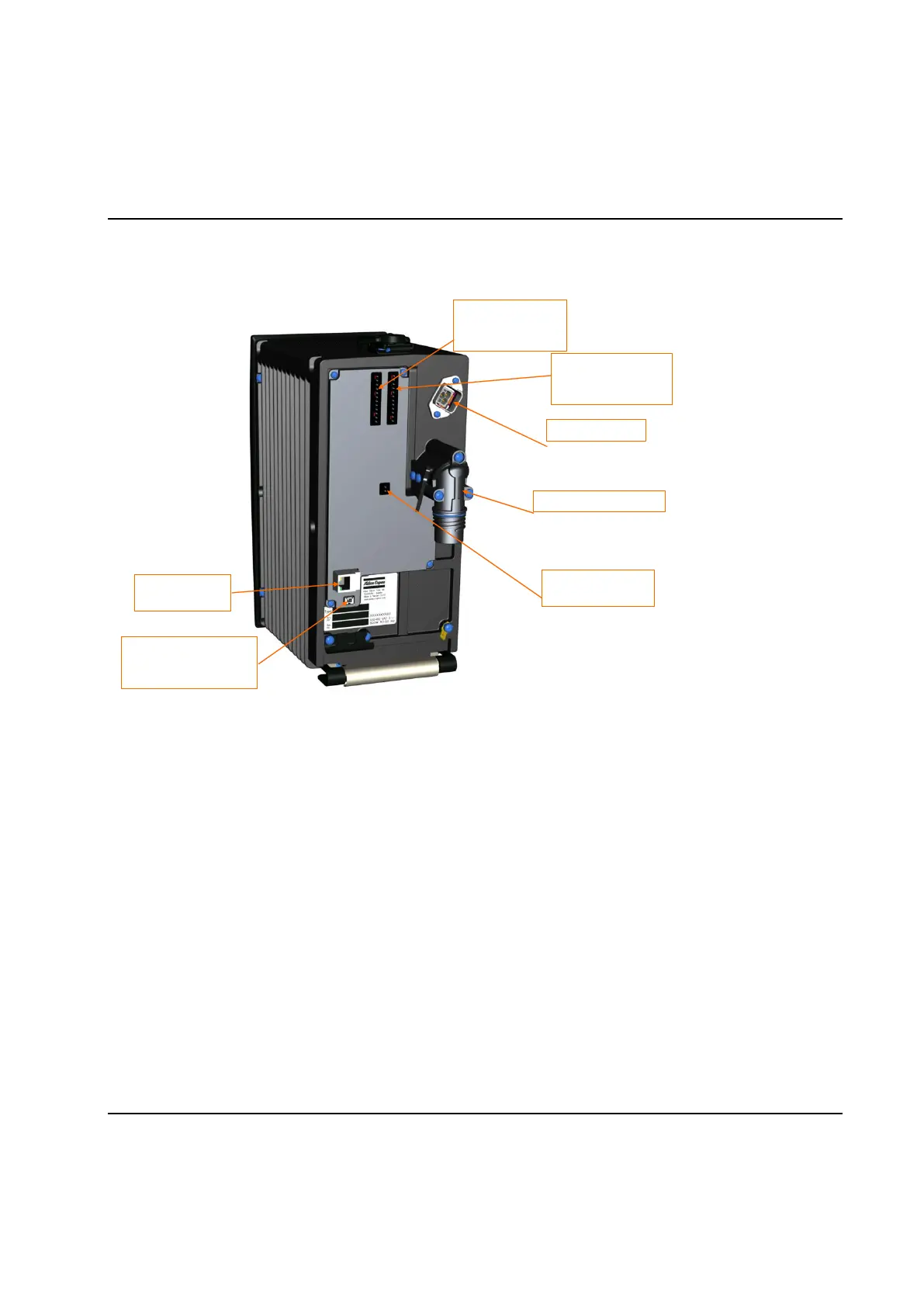

The following picture shows the input and output sockets on the TC.
Em Stop In: 12 pole
Phoenix
Emergency stop in
24V Input 2 pole
Phoenix. 24 V input
Int Eth: RJ45
Internal Ethernet
ES: 2 pole JST
Power Supply for
Ethernet Switch only
Em Stop Out: 12 pole
Phoenix
Emergency stop out
Power Connector
QST Spindle Connector
