Tightening
330 9836 3521 01

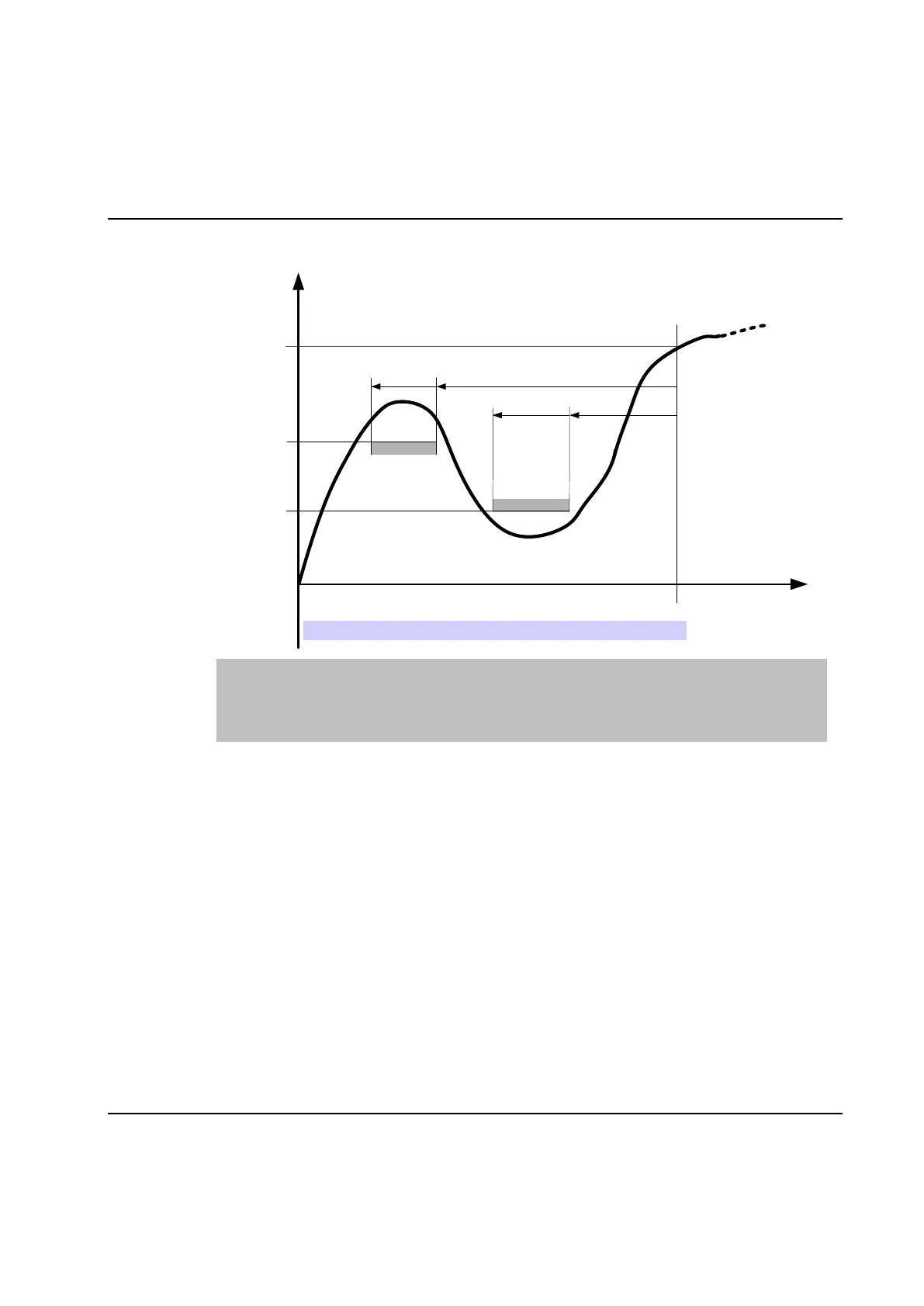

Diagram:
Angle
Torque
TL
AwinL
AwinL Low Angle Window TL Torque Low
AwinH High Angle Window TH Torque High
AdistL Low Angle Distance
AdistH High Angle Distance TC Torque Check Level
TC
AdistH
AwinH
TH
AdistL
Step
Result var.: None.
Alarms: Post view torque too high (PVTH) and post view torque too low (PVTL).
Trace: TH and TL are shown in trace as horizontal lines displaying the angle window for each limit.
The lines are only shown when Torque vs. Angle is selected and Check limits are enabled
in the trace form (see View of trace curves).
