Show Single Step

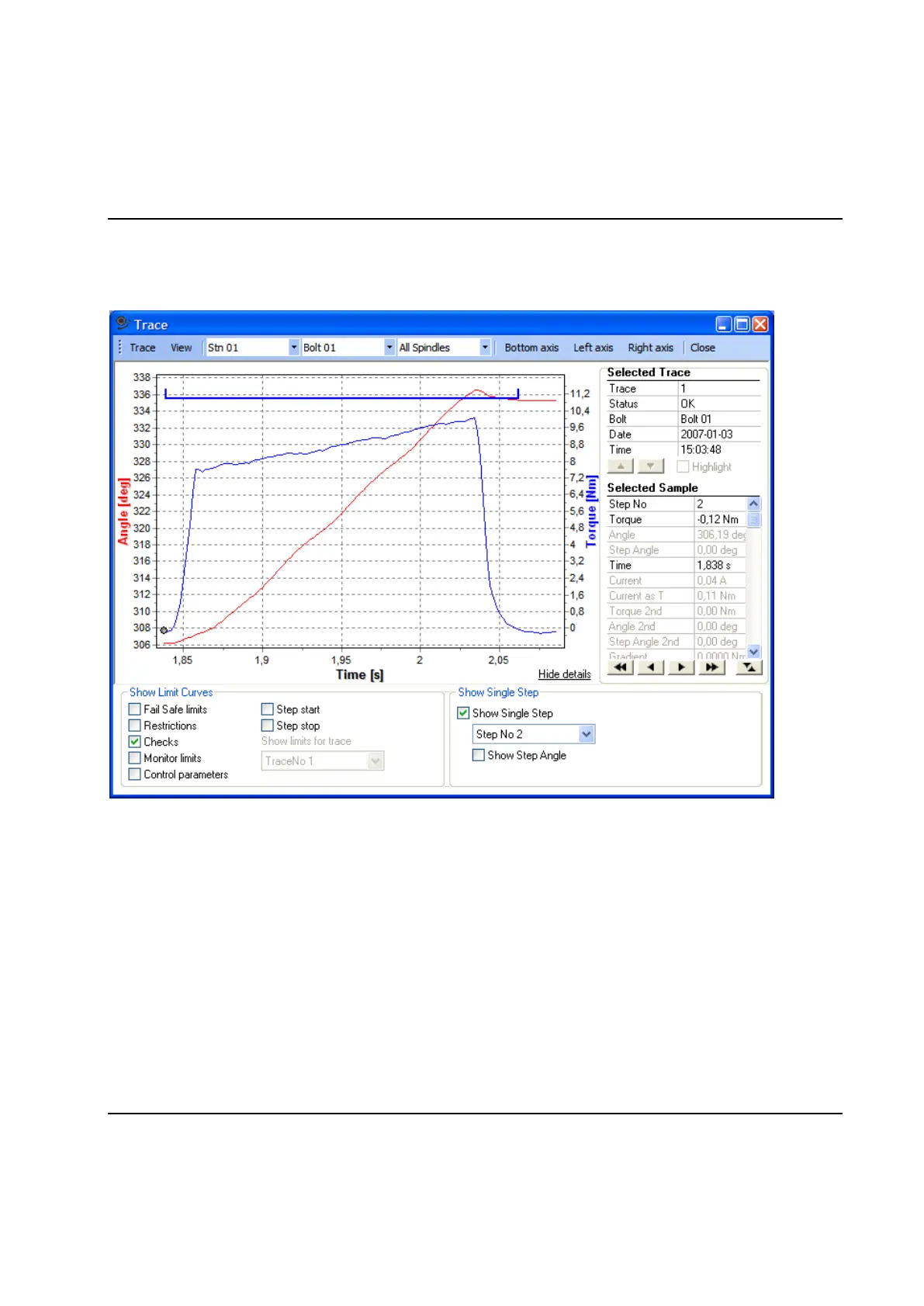

It is possible to view only one step at the time. Select Extras | Show from the View menu to bring forward
the Show Single Step frame.
Mark the checkbox "Show Single Step" and select which step number to show in the combobox.
If quantity Angle is used on either a vertical axis or the horisontal axis, you can select to show the step
angle instead of the cycle angle with the checkbox "Show Step Angle". The step angle starts at zero
degrees at the beginnig of each step.
Note! The step is considered to begin at the step start time. The step angle is counted from this point also.
This may not be the same position as other parts of the system use for the start of the step. The positions
of limit curves may differ from what is expected.
