SmartROC D65 Tier 4 Final 5 RCS drilling system
130

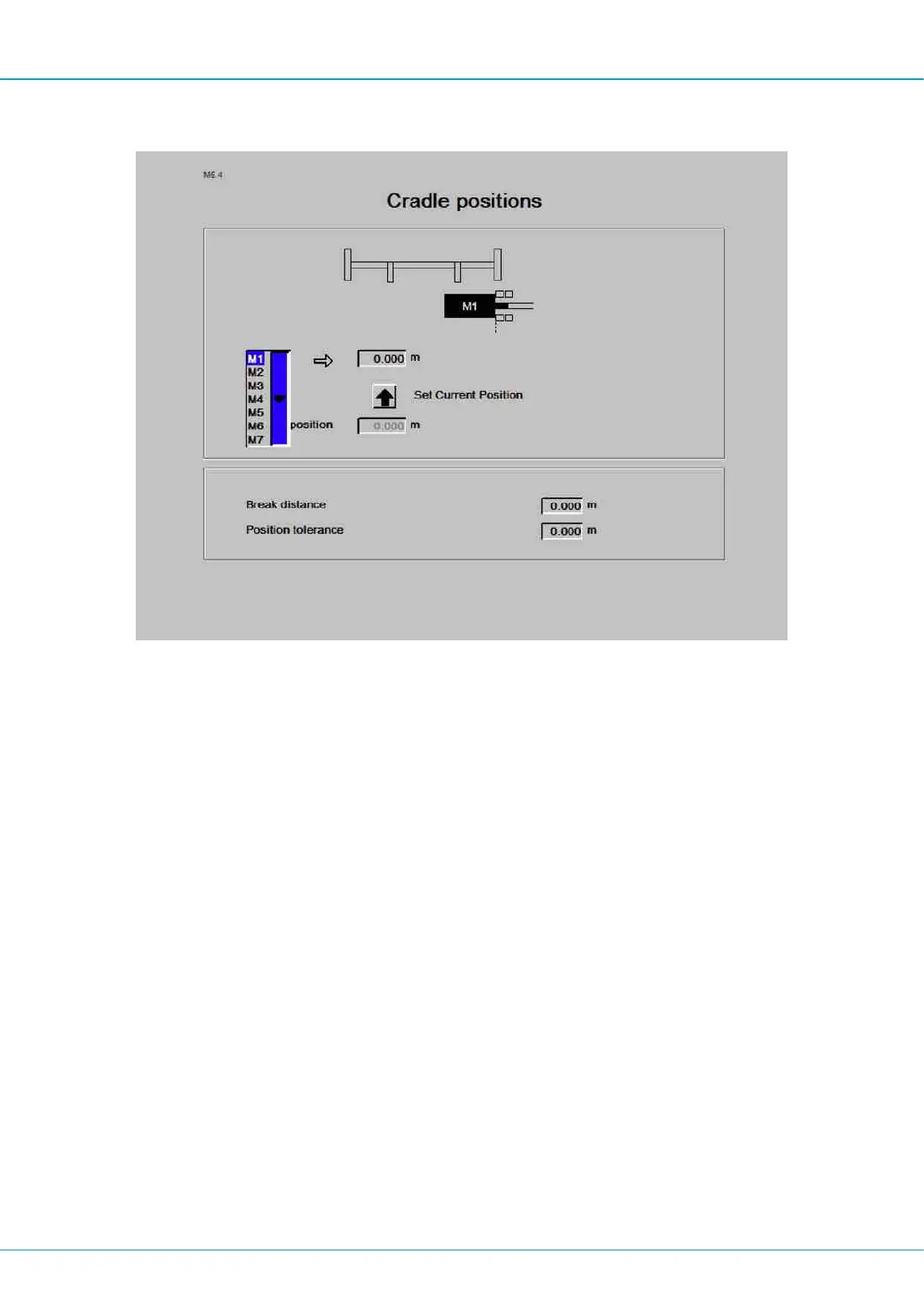

RHS - Cradle positions
Cradle positions
n Current position
n Set Current Position
n Break distance
n Position tolerance
n M1: Cradle in the lower position (should be about 3 cm above mechanical stop) (ap-
plicable when automatic rod handling is activated on the right-hand control panel).
n M2: Position for breaking of adapter-rod (applies when automatic rod handling is ac-
tivated on the right-hand control panel).
n M3: Rapid feed stop forward.
n M4: Position for breaking rod-rod. Requires that Automatic rod extraction is activ-
ated in Direct selection menu F2.
n M5: Position for inserting rods into the carousel. Requires that Automatic rod ex-
traction is activated in Direct selection menu F2.
n M6: Cradle in upper position.
n M7: Position when the upper drill-steel support can be closed when the first rod is
drilled.
