SmartROC D65 Tier 4 Final 4 Hardware RCS
41

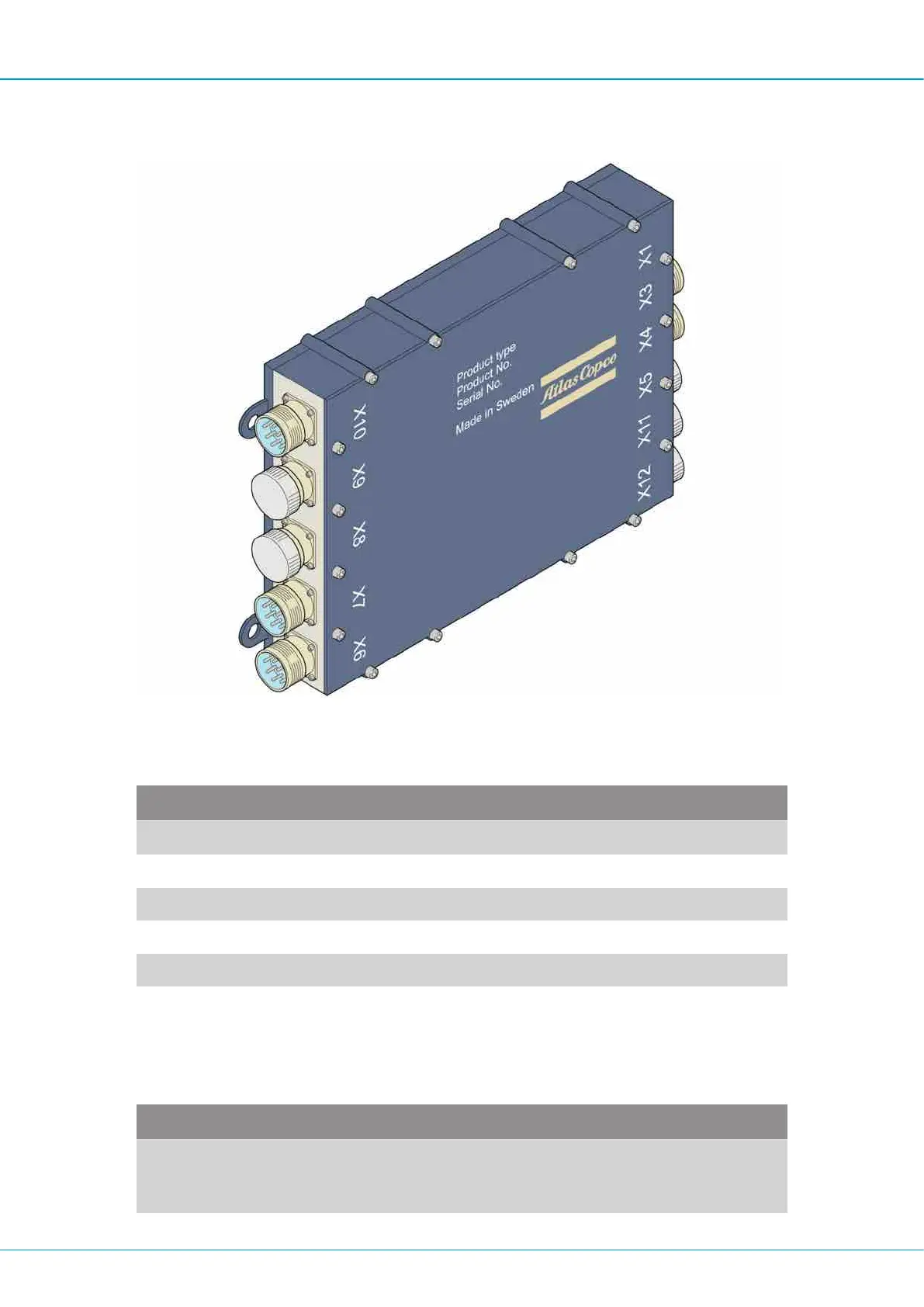

4.2 Resolver module
Resolver module
4.2.1 Connections
Contact Function
X1 Power supply module
X3, X4 CAN network
X5 Address plug
X6-X9 Resolver inputs
X10 Encoder input
X11, X12 Analogue inputs
Table6: Functions of connections
4.2.2 Pin configurations
Contact Type Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6
X1 Four-pin M12,
male contact
+24V sup-
ply
voltage
+24V sup-
ply
voltage
GND GND
