SmartROC D65 Tier 4 Final 4 Hardware RCS

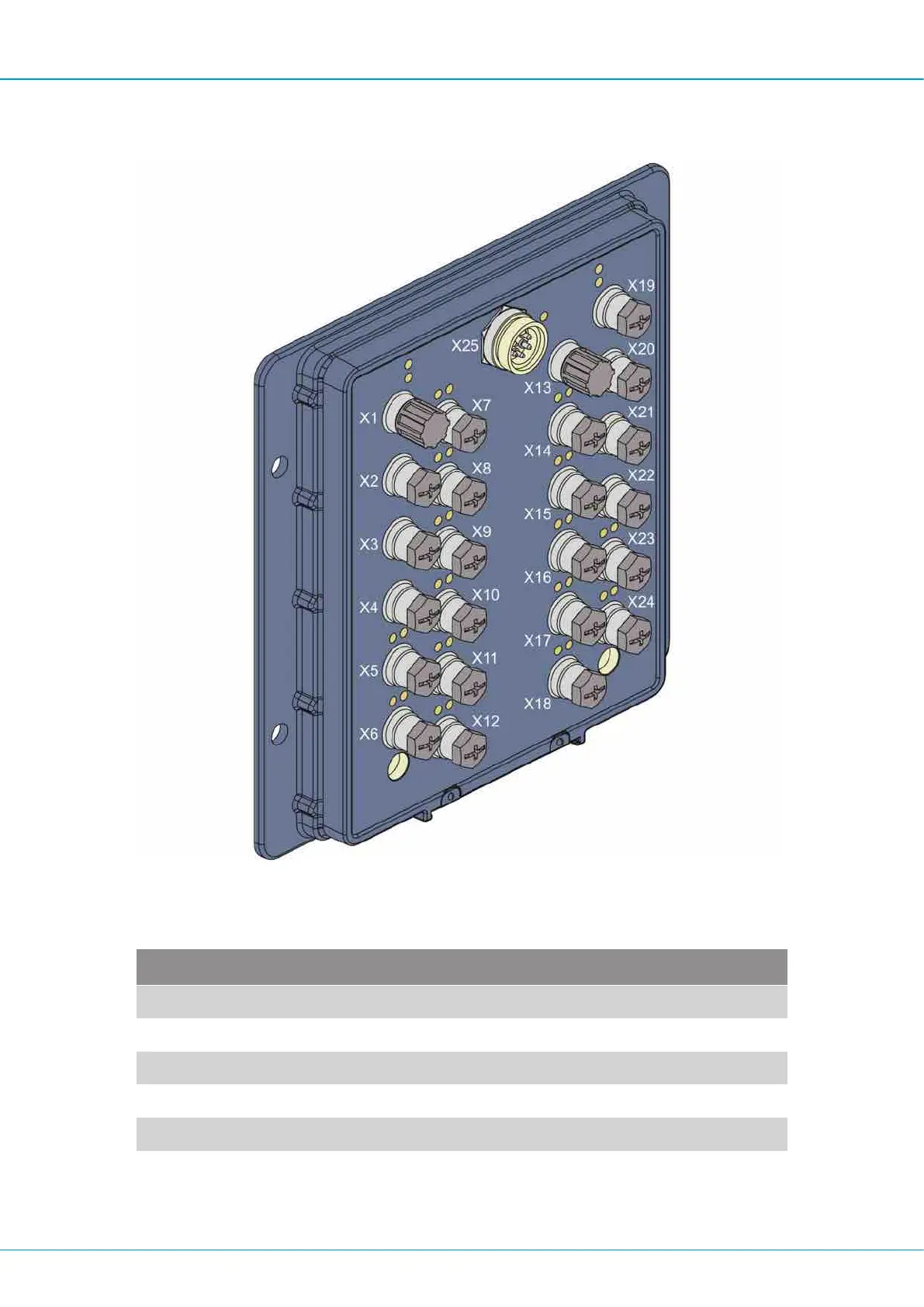

4.3 I/O module

I/O module

4.3.1 Connections

Contact Function

X1, X19 CAN in (X1), CAN out (X19)

X2, X3, X4, X20, X21, X22 Analogue inputs

X5, X23 DI/DO NPN Encoder

X7, X8, X9, X10, X14, X15, X16, X24 DI/DO PWM

X11, X12, X17, X18 DI/DO PNP

X13 Address plug
