SmartROC D65 Tier 4 Final 5 RCS drilling system
49
5 RCS drilling system
5.1 Drill system
5.1.1 RCS
RCS (Rig Control System) is a system that controls and monitors drilling functions as well
as various drill rig functions. The RCS system is based on CAN technology (CAN = Con-
troller Area Network).
The number of electronic modules varies from rig to rig depending on the options it has
been equipped with.
n Lever modules 500:1, 500:2. Display D500.
n Application modules: D100
n I/O modules: D101, D102, D510 and D511
n CAN bridge D530

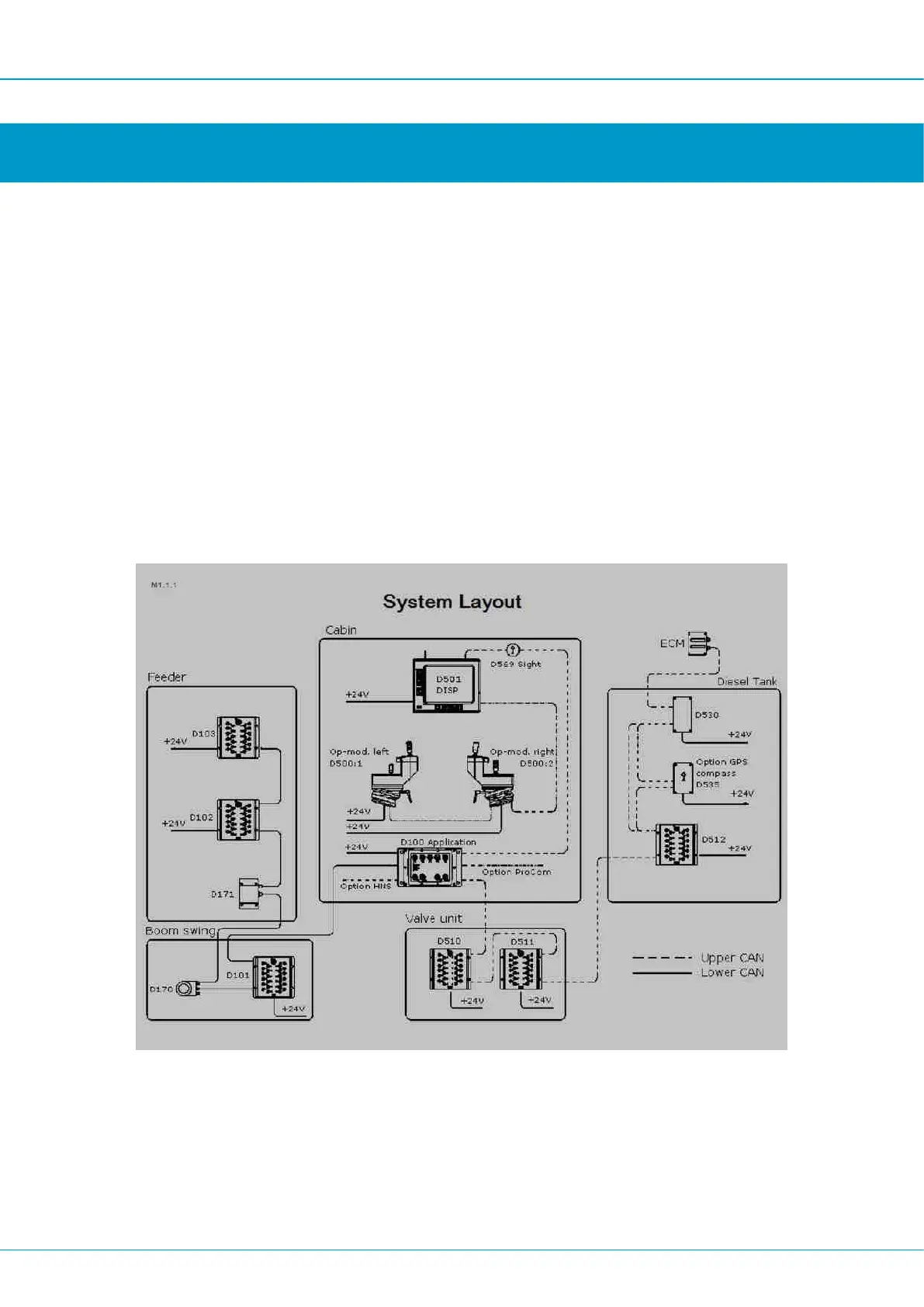

System layout and component locations are shown in the following figures, which are also
in the menu system.
System Layout
