SmartROC D65 Tier 4 Final 7 Feeder
147
1.
Prise off the slide pieces (C) from the holder using a screwdriver and remove the keys
(D).
2.
Slide a new slide piece into the holder track and fit the new keys.
3.
Makes sure that the holders are refitted to the cradle correctly and that they are adjus-
ted so that the total lateral play is 2-3 mm.

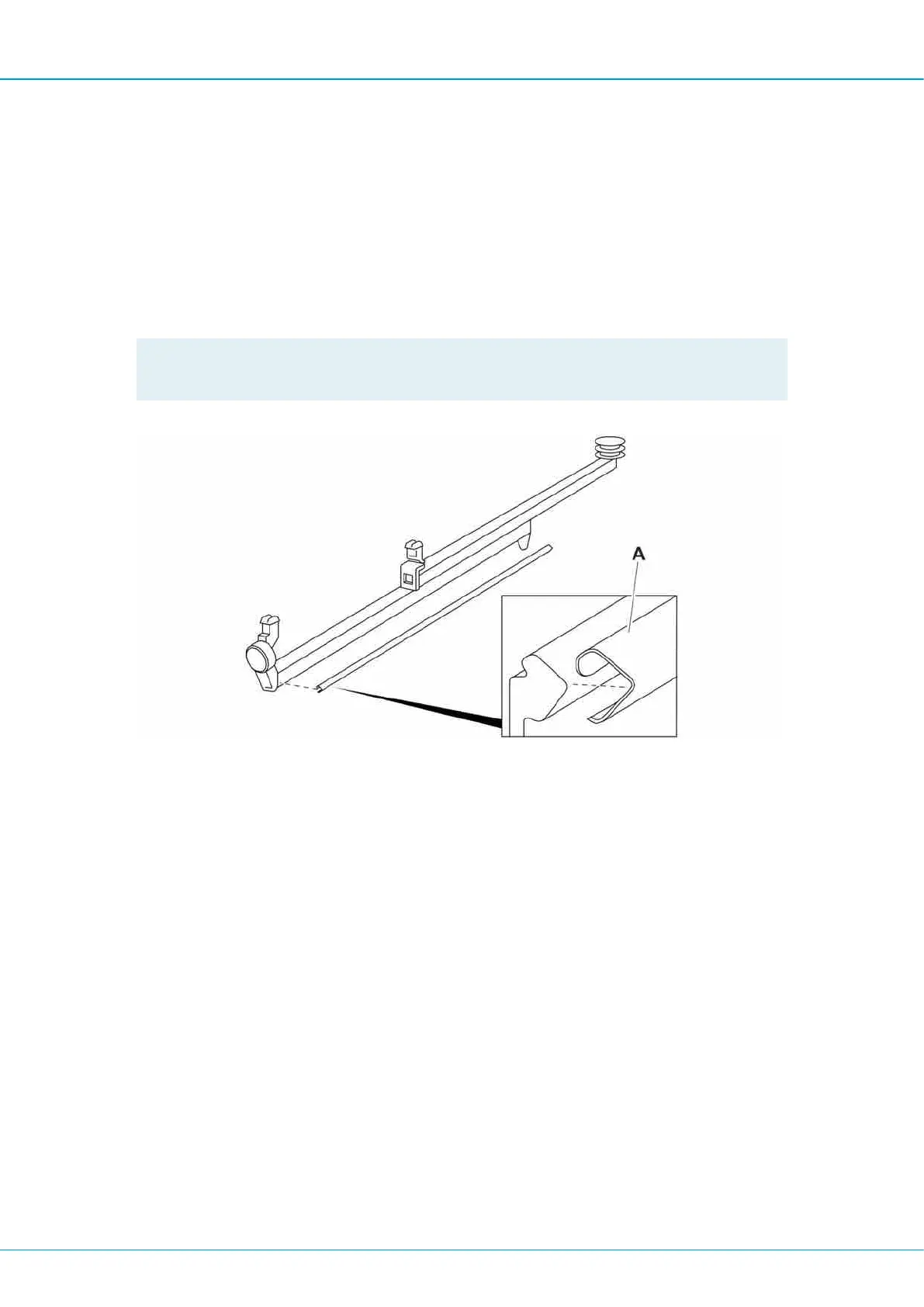

7.9 Replacement of Slide Bars
!
NOTE: Always replace the slide pieces when replacing slide rails!
Slide rails should be replaced if they are worn or severely scratched.
Replacement of Slide Bars
The slide rails are divided up to facilitate replacement.
Before replacing the front slide rails, run the rock drill/rotation unit to its rear end position.
Before replacing the rear slide rails, run the rock drill/rotation unit to its front end position.
1.
Remove the cradle for the rock drill, intermediate drill-steel support and the hose
drum from the beam.
2.
Remove the old slide rails A by prising the lower edges of the bars outwards using a
screwdriver.
3.
Clean the beam surfaces thoroughly.
4.
Fit the new slide rails. The larger edge on the slide rail must be facing upwards. The
rails should be pressed in place by hand.
5.
Refit the rock drill cradles, intermediate drill-steel support and
hose drum. Ad-
just the holders on the cradles as described in the instructions.
