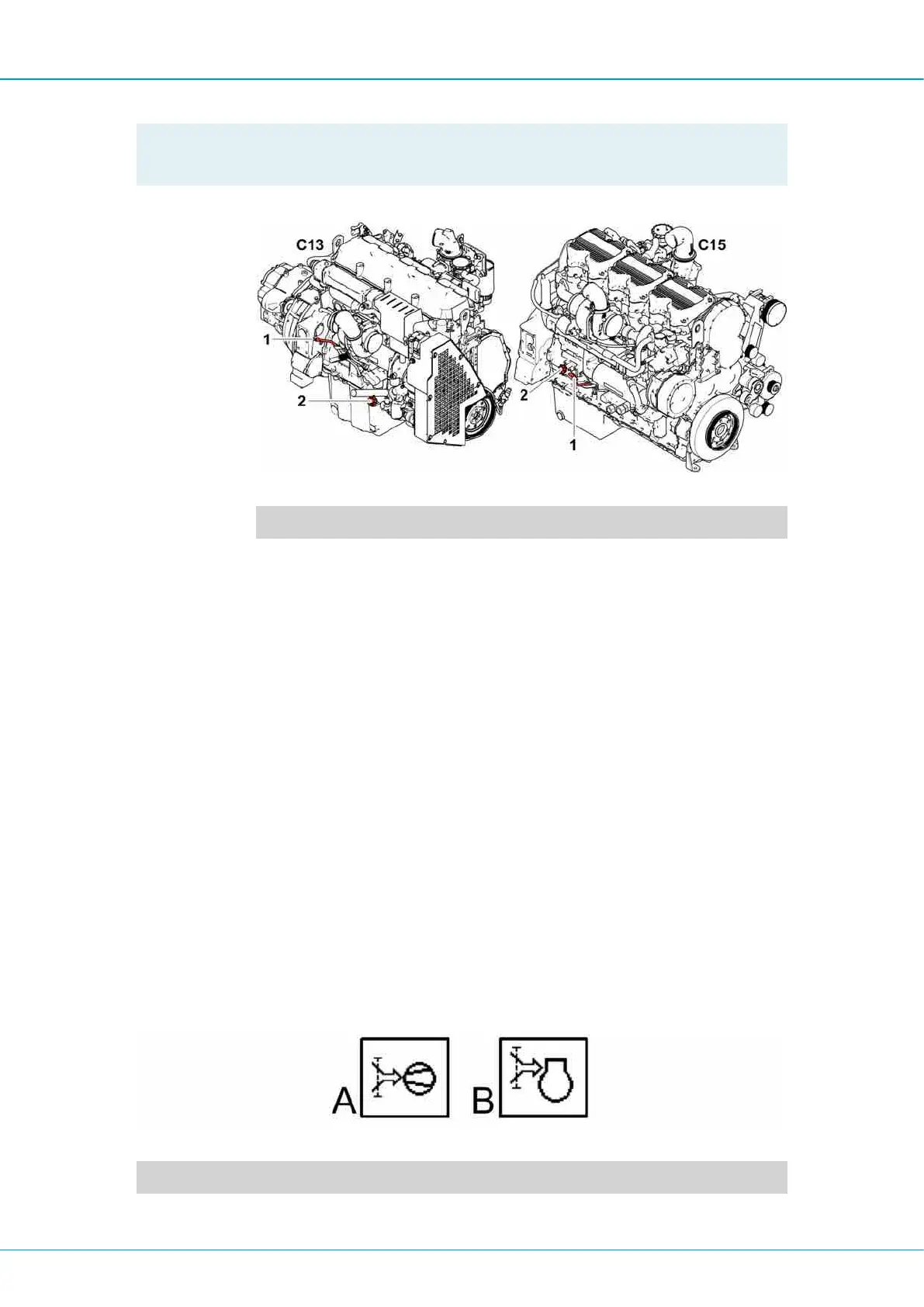

SmartROC D65 Tier 4 Final 11 Diesel engine
162
!
NOTE: See the chapter Oils and fuel for oil grade.
1.
Check that the oil level is between the upper and lower marks on the dipstick (1).
Diesel engine
1. Dipstick
2. Filling up
2.
Top up (2) if the oil level is below or level with the lower mark on the oil dipstick (see
the table "Recommended oils and lubricants").
11.4 Maintenance of components
11.4.1 Air filter for engine and compressor, service intervals
The air filters consist of filter housing with cover, filter cartridge, safety cartridge, indicator
and evacuation valve. Cleaning is carried out in two stages. The first stage comprises a
cyclone and the second stage a normal filter. Both cleaning stages take place in the filter
housing.
A filter's performance will improve right up until it becomes clogged. For this reason the fil-
ter cartridge should not be replaced at regular intervals, but only when it starts to become
clogged. The filter cartridges must never be cleaned as this impairs filtration and also risks
damaging the filter element.
There is an indicator fitted onto the filter housing to advise when the filter cartridge is
clogged. It is connected to the HEC display in the cabin, or the LCD display on the left-
hand side of the rig for cabinless rigs. A yellow warning symbol is visible on the status bar
at the bottom of the display if a filter starts clogging. The indicator must be checked every
1000th engine hour.
Warning symbols on the rig's HEC display
A Warning symbol for compressor air filter
B Warning symbol for engine air filter
