SmartROC D65 Tier 4 Final 3 Transport instructions
35
3.2.1 Before loading the drill rig onto the transport vehicle
n Run the rotation unit/rock drill to its lowest position.
Use the boom and feed controls alternately to bring the feed down into the transport posi-
tion and firmly down on its jack (A).
3.2.2 Once the drill rig is loaded onto the transport vehicle
n Lower the hydraulic jack (extra equipment).

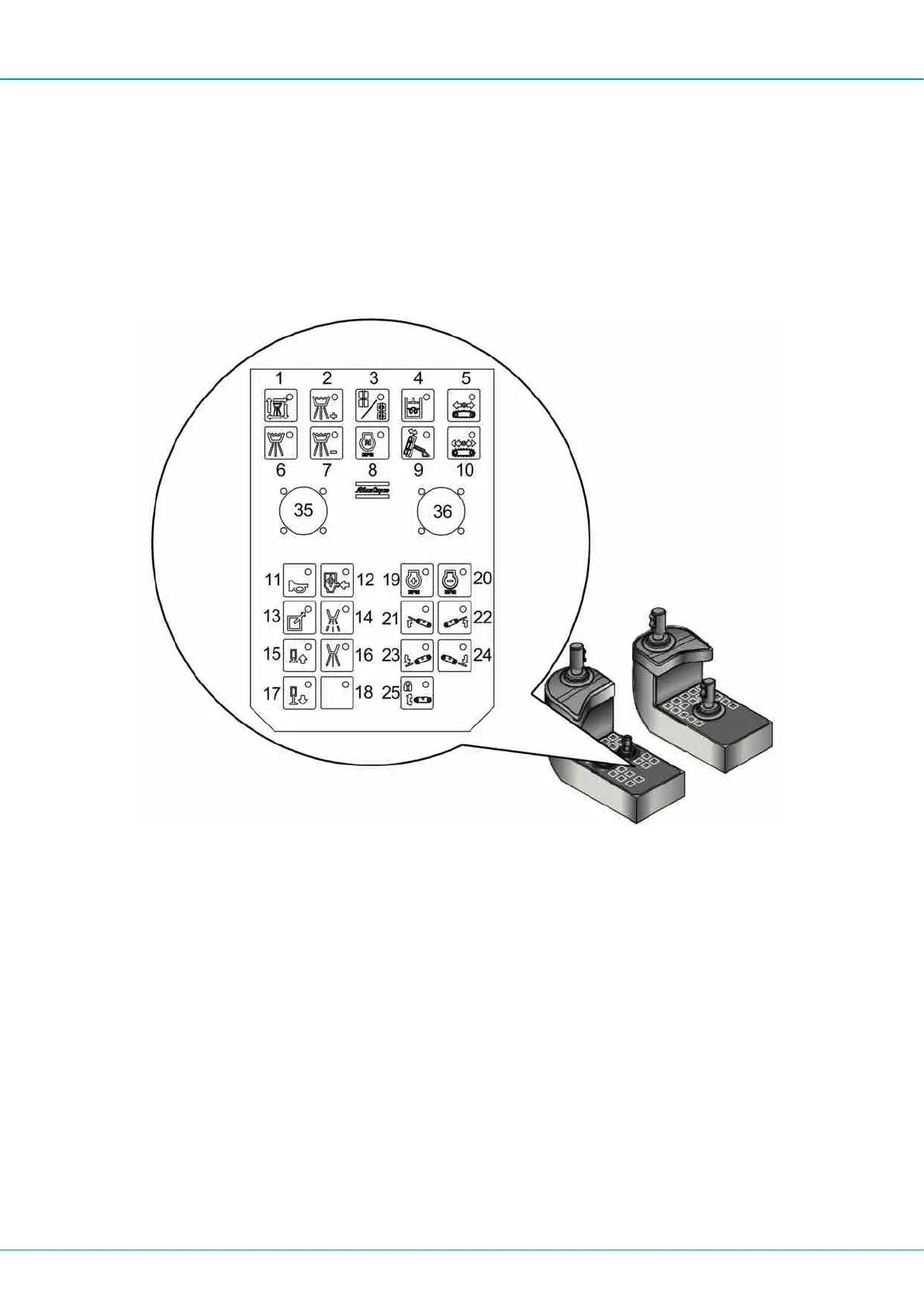

n Track oscillation cylinders to LOCKED position (Button 25).
Left control panel
n Support the feed beam against the vehicle to prevent overloading.
n Switch off the diesel engine.
n Strap the drill rig securely onto the vehicle.
Attach straps or chains to the lifting eyes on the machine and vehicle.
