5.5.3 System - Levers
Levers.

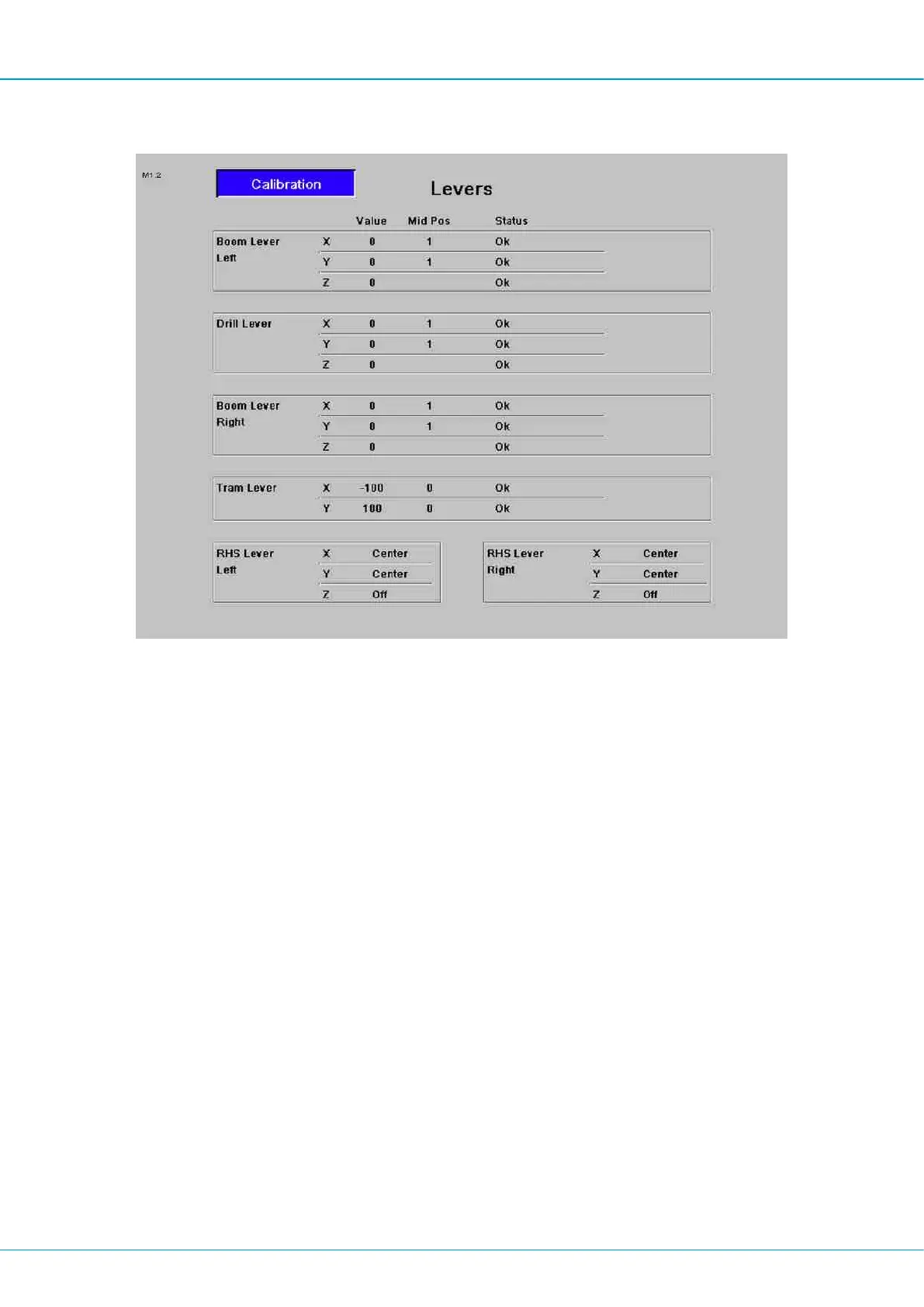

The lever function can be checked in this menu by moving the lever in its X axis (rotation
left/right) and Y axis (feed forward/back). If the lever is working, you should see its actu-
ation value, 0 - 127 units. If a lever is replaced or if the lever gives an actuation value lower
than 115 or higher than 127 units, all the levers must be recalibrated (see Calibration
levers below). The function of the rocker switch can also be tested by pressing in the left/
right-hand side of the lever head and the button Left/Right should then be indicated on the
display screen.
n Boom Lever Left
n Drill Lever
n Boom Lever Right
n Tram lever
n RHS Lever Left
n RHS Lever Right
