5.5.4 System - Monitors
Guards.

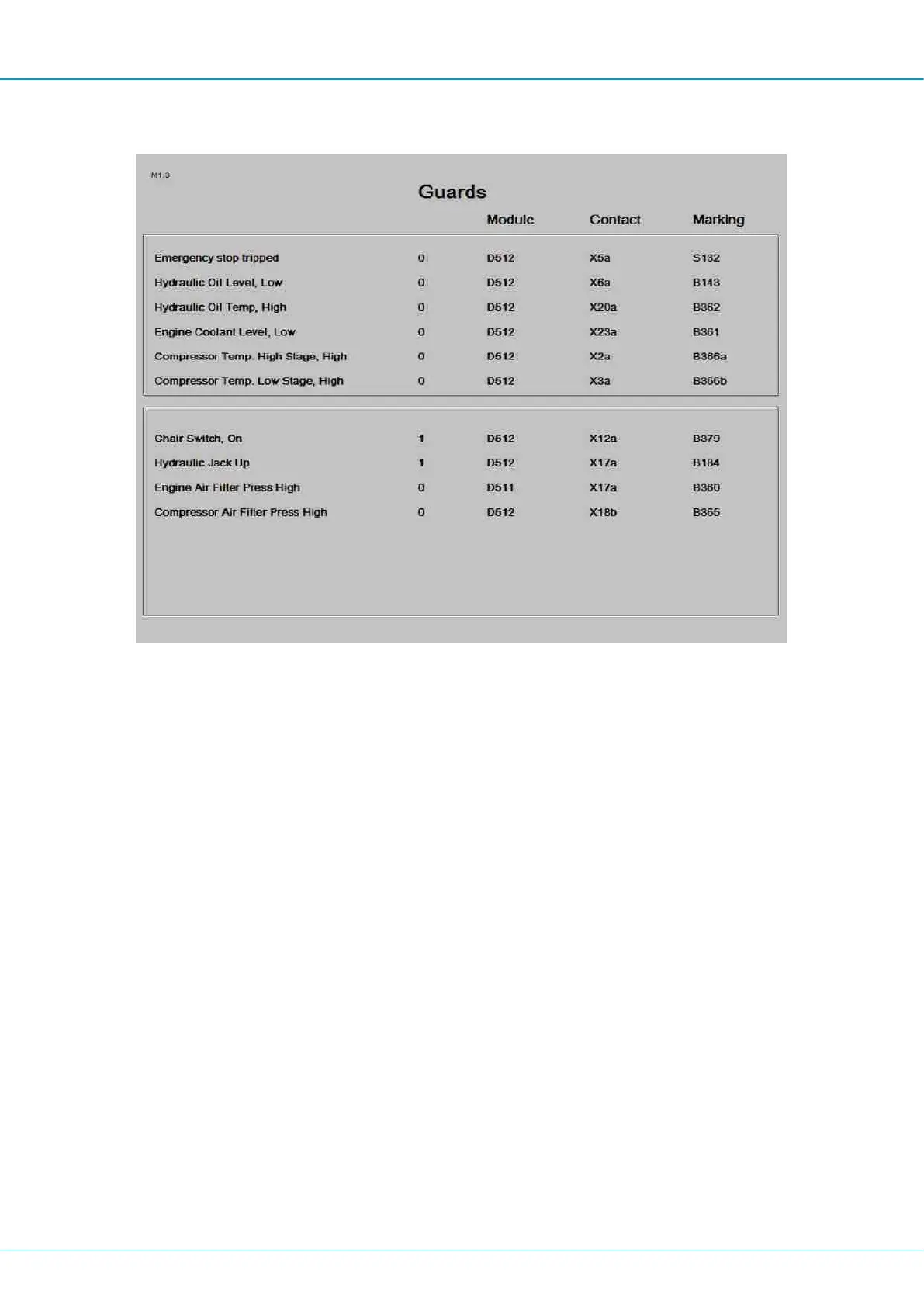

The status of the various guards (On/Off) can be read from the Guards menu. The mod-
ule, marking and connector each sensor has on the module is also specified here. This
means it is easier to locate the source of the fault so that it can be rectified more quickly.
The monitors in the top box turn off the diesel engine.
n Emergency stop tripped
n Hydraulic Oil Level, Low
n Hydraulic Oil Temp, High
n Engine Coolant Level, Low
n Compressor Temp. High Stage, High
n Compressor Temp. Low Stage, High
n Chair Switch, On
n Hydraulic Jack Up
n Engine air filter press. high
n Compressor Air Filter Press High
