SmartROC D65 Tier 4 Final 4 Hardware RCS

4.4 Operator panel

4.4.1 Connections

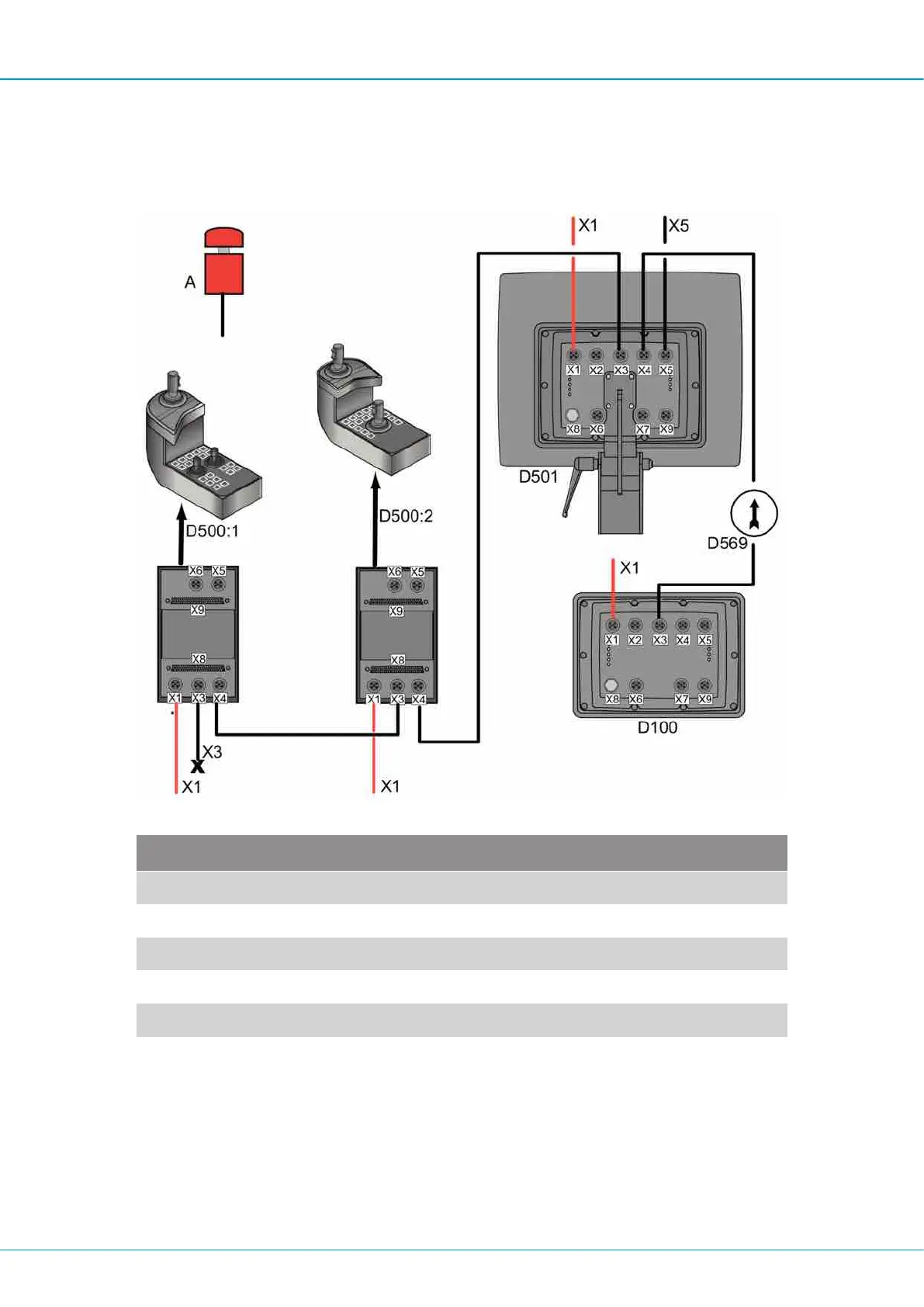

Operator panel

Contact Function

X1 Supply voltage

X3 CAN network end plug

X4 CAN network (to display D501)

X5 Address plug

D569 Aim Device

A Emergency stop (NOT CAN network)

Table8: Functions of connections
