8.2 Check torques

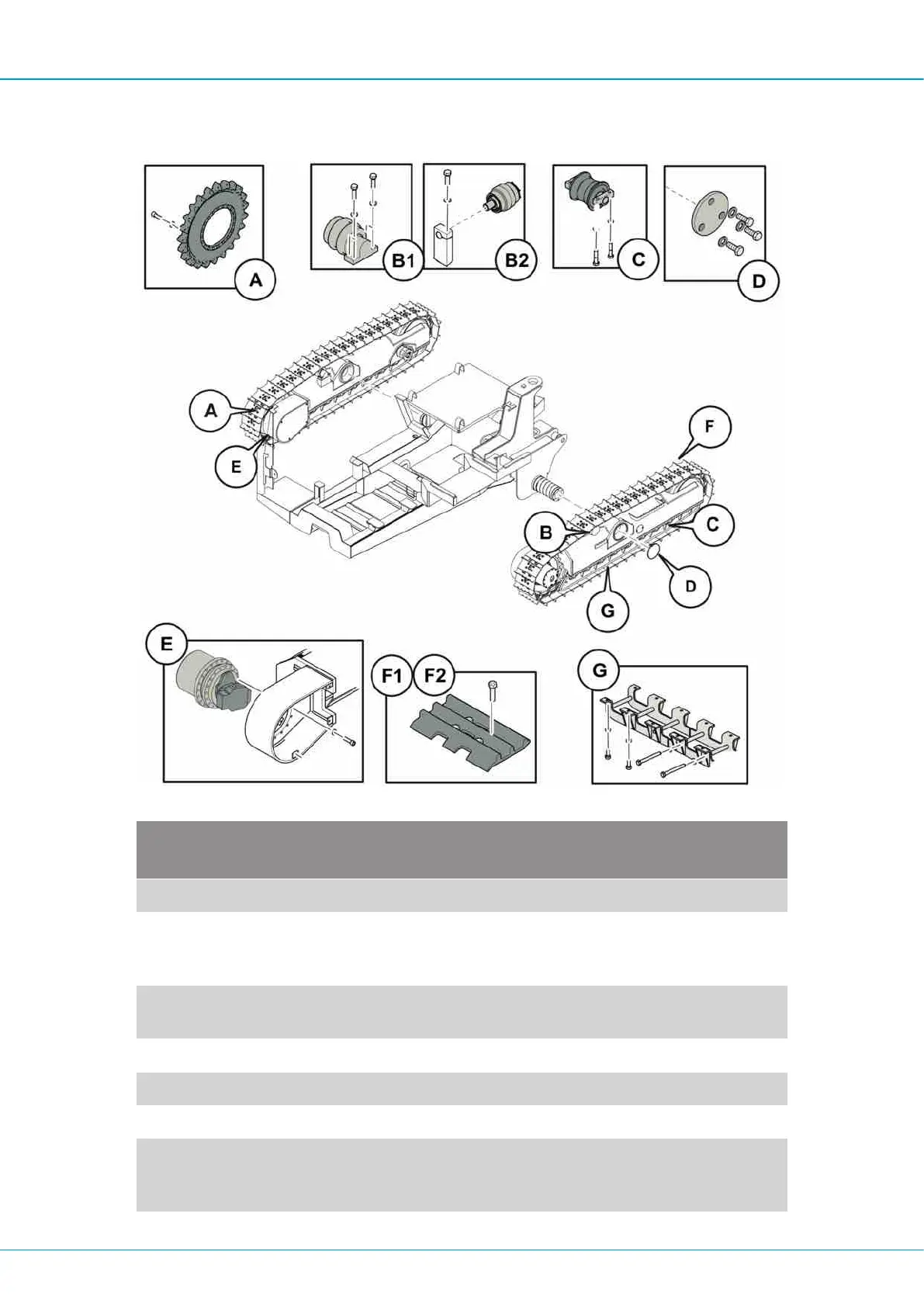

Tightening torques for track frames
Size Torque in Nm Quantity/track
frames
Comments
A M16 295 20
B1 M12 86 4 T45, C50, D50,
D55, T50SF,
C65SF
B2 M16 210 1 T50LF, D60, D65,
C65LF
C M16 210 32
D M12 90 3
E M16 295 18
F1 9/16" UNF 260 ± 10 176 T45, C50, D50,
D55, T50SF,
C65SF
