5.5.7 System - Engine status

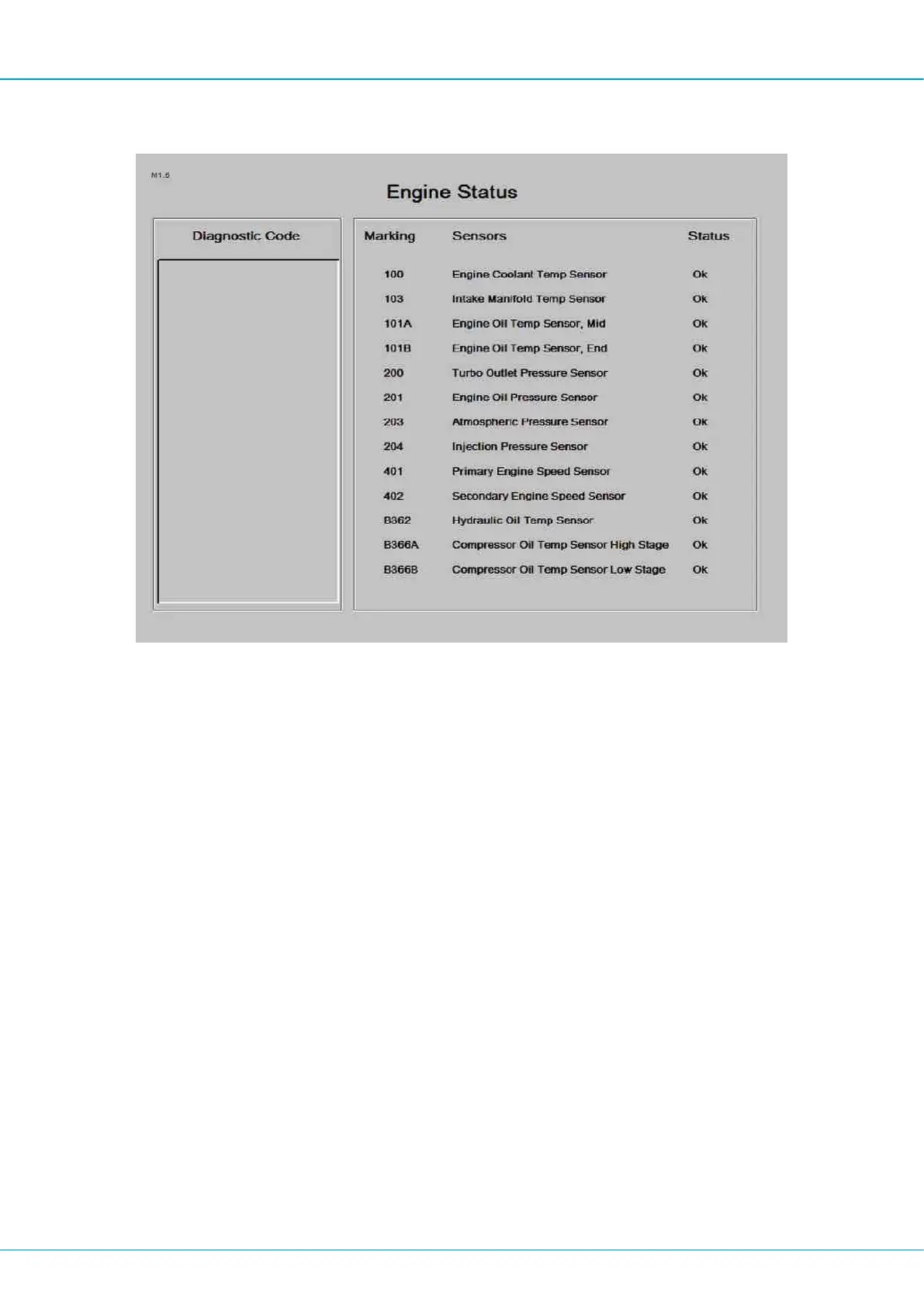

Engine Status
The status of all the sensors associated with the engine can be checked in the Engine
Status menu.
In conjunction with each fault, a diagnostic code will appear on the scroll list on the left.
This code can be translated to clear text in the diesel engine manufacturer's manual.
n 100 Engine Coolant Temp Sensor
n 103 Intake Manifold Temp Sensor
n 101A Engine Oil Temp Sensor, Mid
n 101B Engine Oil Temp Sensor, End
n 200 Turbo Outlet Pressure Sensor
n 201 Engine Oil Pressure Sensor
n 203 Atmospheric Pressure Sensor
n 204 Injection Pressure Sensor
n 401 Primary Engine Speed Sensor
n 402 Secondary Engine Speed Sensor
n B362 Hydraulic Oil Temp Sensor
n B366A Compressor Oil Temp Sensor High Stage
n B366B Compressor Oil Temp Sensor Low Stage
