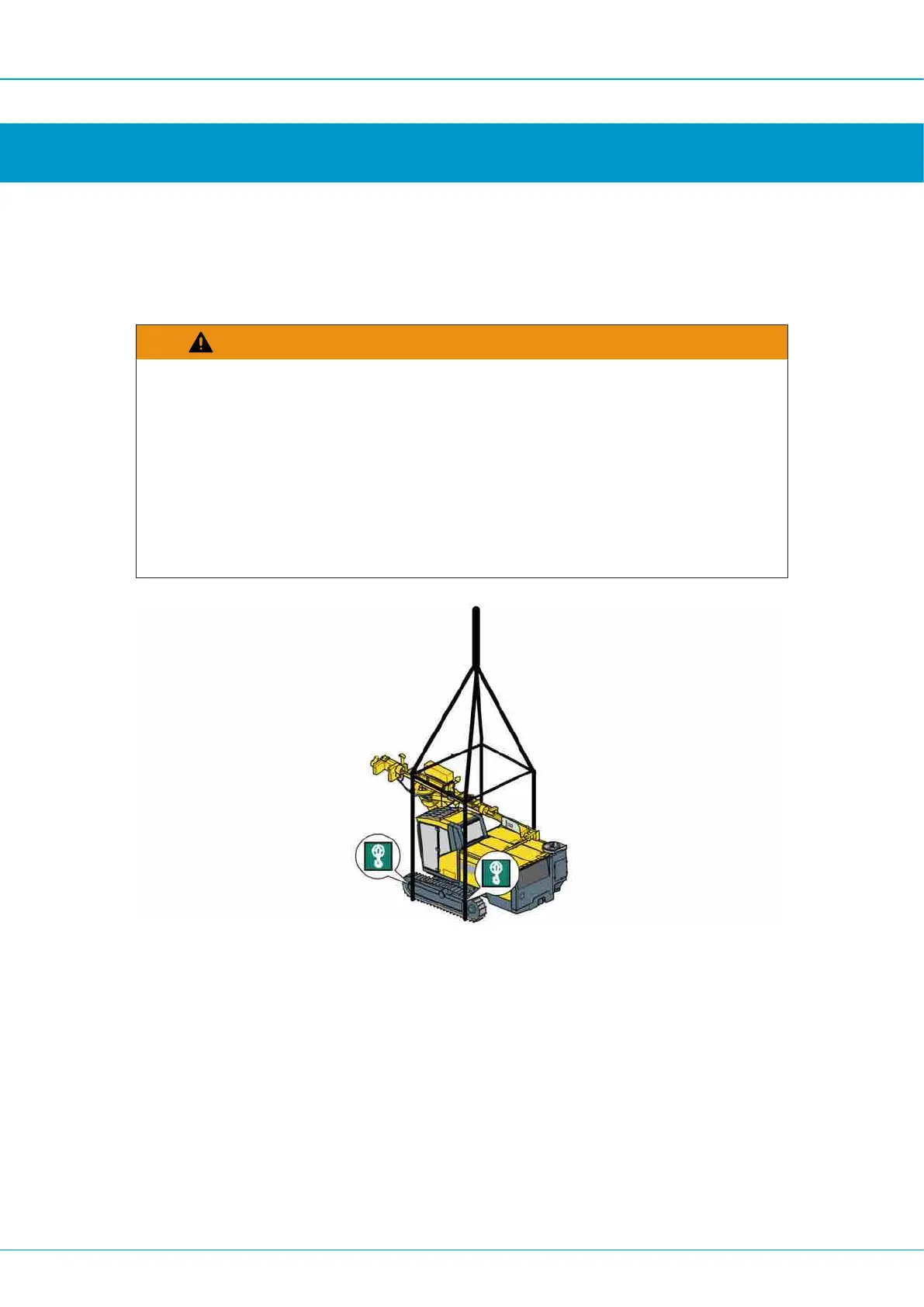

SmartROC D65 Tier 4 Final 3 Transport instructions
33
3 Transport instructions
3.1 Hoisting
3.1.1 Single-section boom version
WARNING
Serious injury
Hanging load
u May cause serious personal injury and damage to property
u Do not approach a hanging load
u Only use lifting equipment and lifting straps with adequate lifting capacity
u Risk of dumping
u Lock the track oscillation cylinders before the drill rig is raised
Hoisting
Make sure the chassis is not damaged when you position the feed in the transport/hoisting
position.
n Run the rock drill/rotation unit to is rearmost (upper) position
n Use the boom and feed controls to lower the feed onto the feed support.
n Make sure that the hydraulic jack is retracted.
n Track oscillation cylinders to LOCKED position (Button 25).
