SmartROC D65 Tier 4 Final 6 Hydraulic systems
137
6.5 Hydraulic workshops
Workshops used for the repair of hydraulic components must:
n Be separate from activities which generate dust and particles, such as welding, grind-
ing, the transportation of vehicles, etc.
n Have their own suitable washing equipment which is required for repairing the com-
ponents.
n Have the necessary tools, both standard and special, that are only used in the hy-
draulic workshop.
n Have a ventilation system that does not admit dust into the premises.
n Have well-trained mechanics.
6.6 Filter
6.6.1 Return oil filter
General
The return oil filter cleans the oil before it returns to the tank.
There are two return oil filters connected in parallel. A return oil filter consists of a tube con-
taining two filter inserts. The tubes are mounted inside the hydraulic oil reservoir.
The filter inserts should be replaced according to the maintenance schedule but if the re-
turn filter's pressure gauge on the operator display indicates "Clogged filter" (red zone on
the scale), all return oil filters must be changed immediately.

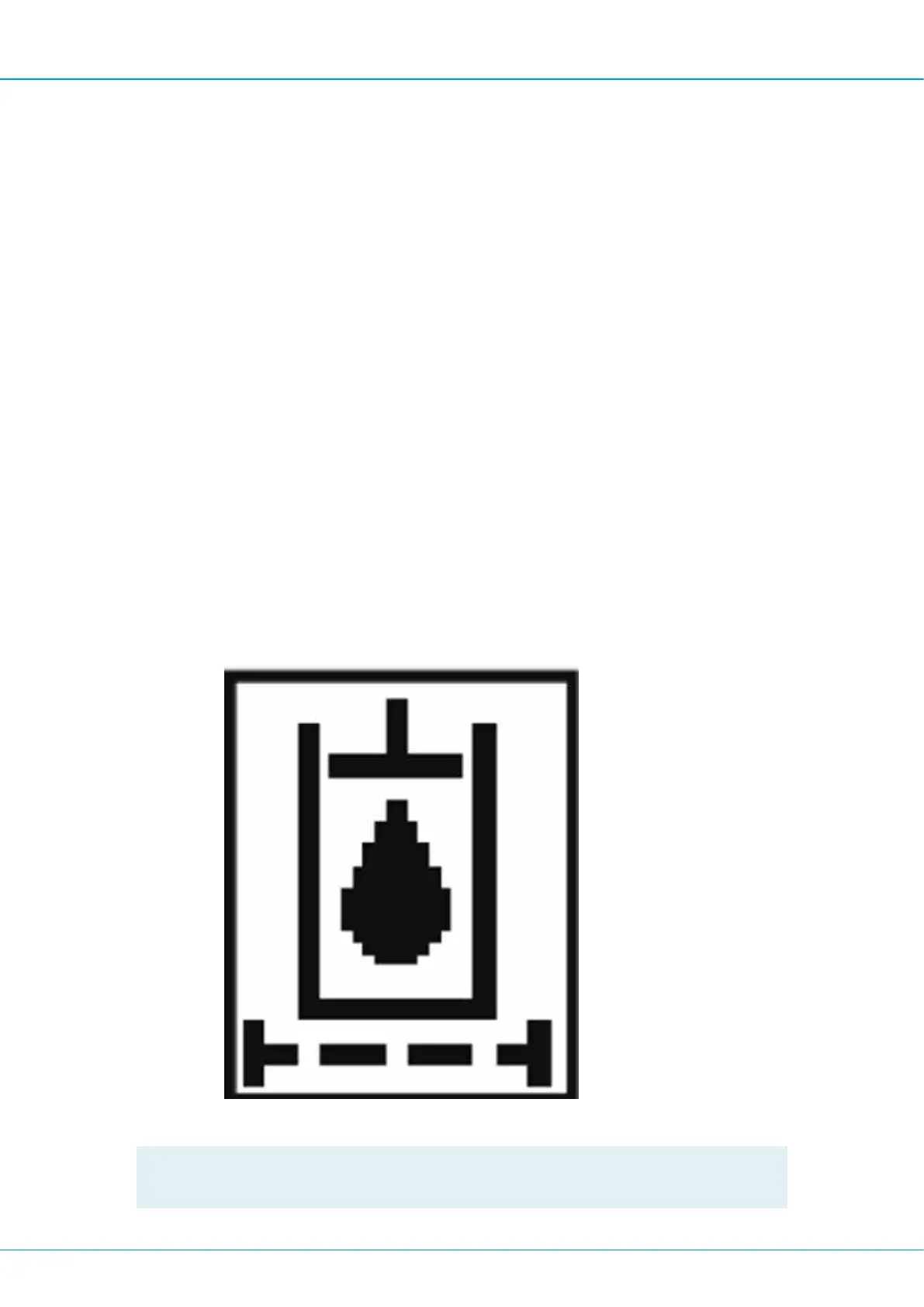

Symbol for clogged filter
!
NOTE: The filter cartridges cannot be cleaned but must be replaced when they are
clogged.
