SmartROC D65 Tier 4 Final 14 Options
217
14.5.2 Transmission
Check the oil level regularly. Replace the oil every 8000 engine hours.

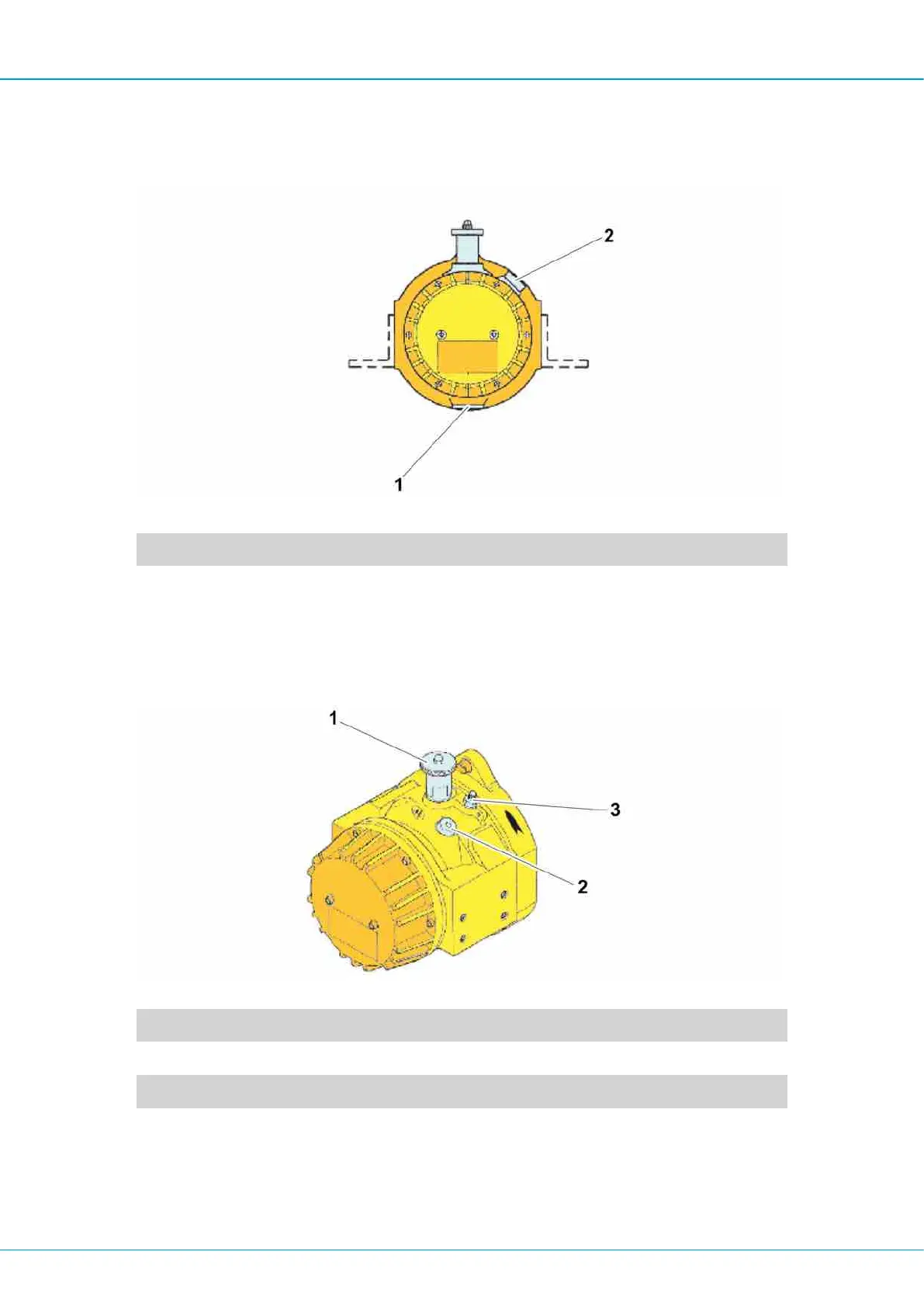

Service winch, oil filling orifice
1 Oil drain plug
2 Oil filling orifice cover plate
The winch gear holds 0.5 L oil. Drain out the old oil by removing the oil drain plug (1). Pour
in new oil into the winch transmission via the oil filling orifice cover plate. (2)
14.5.3 Disengagement device
Service Winch
1 Disengagement device
2 Oil filling orifice cover plate
3 Drum brake adjusting screw
Lubricate the disengagement device (1) every 1000th engine hour.
