4 Hardware RCS
4.1 Display, application and CCI module

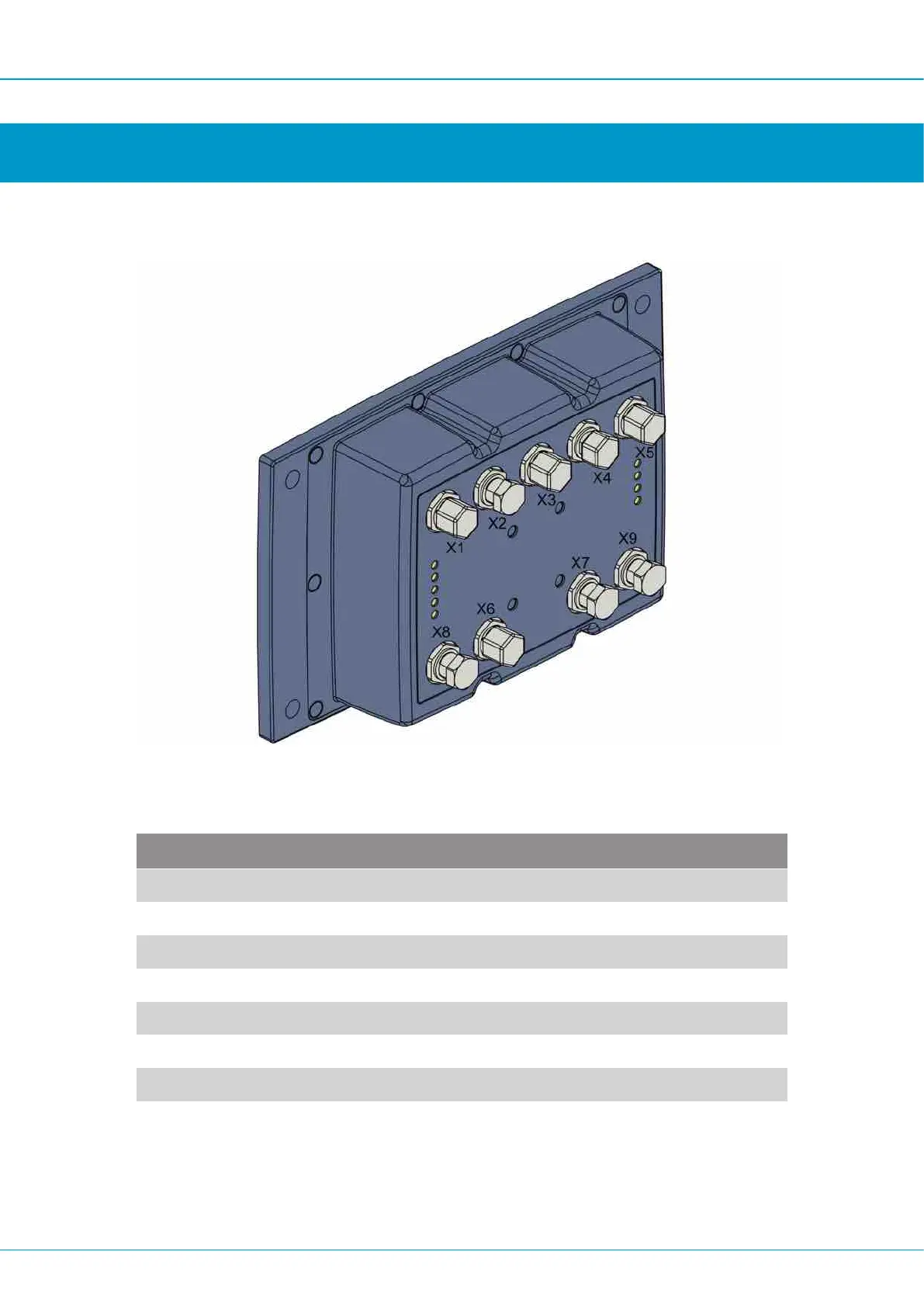

Display/Application/CCI module
4.1.1 Connections
Contact Function
X1 Power supply module
X2 CAN network 2
X3, X4 CAN network 1
X5 Address plug
X6 COM2
X7 USB/COM1
X8 Video
X9 Ethernet
Table5: Functions of connections
