SmartROC D65 Tier 4 Final 3 Transport instructions
36
3.3 Towing
WARNING
Serious injury
Danger of moving parts
u May cause serious personal injury and damage to property
u Position a wedge under both of the track frames, before disengaging the traction gears
NOTICE
Risk of damage
Risk of damage if the machine is towed with low oil level in the traction gears.
u Make sure that there is sufficient oil in the traction gears before disengagement takes
place.
NOTICE
Risk of damage
The traction gears may be damaged if dirt or mud gets into them.
u Make sure that the track frames are completely free of all dirt and mud before the cover
plate for the traction gears is removed.

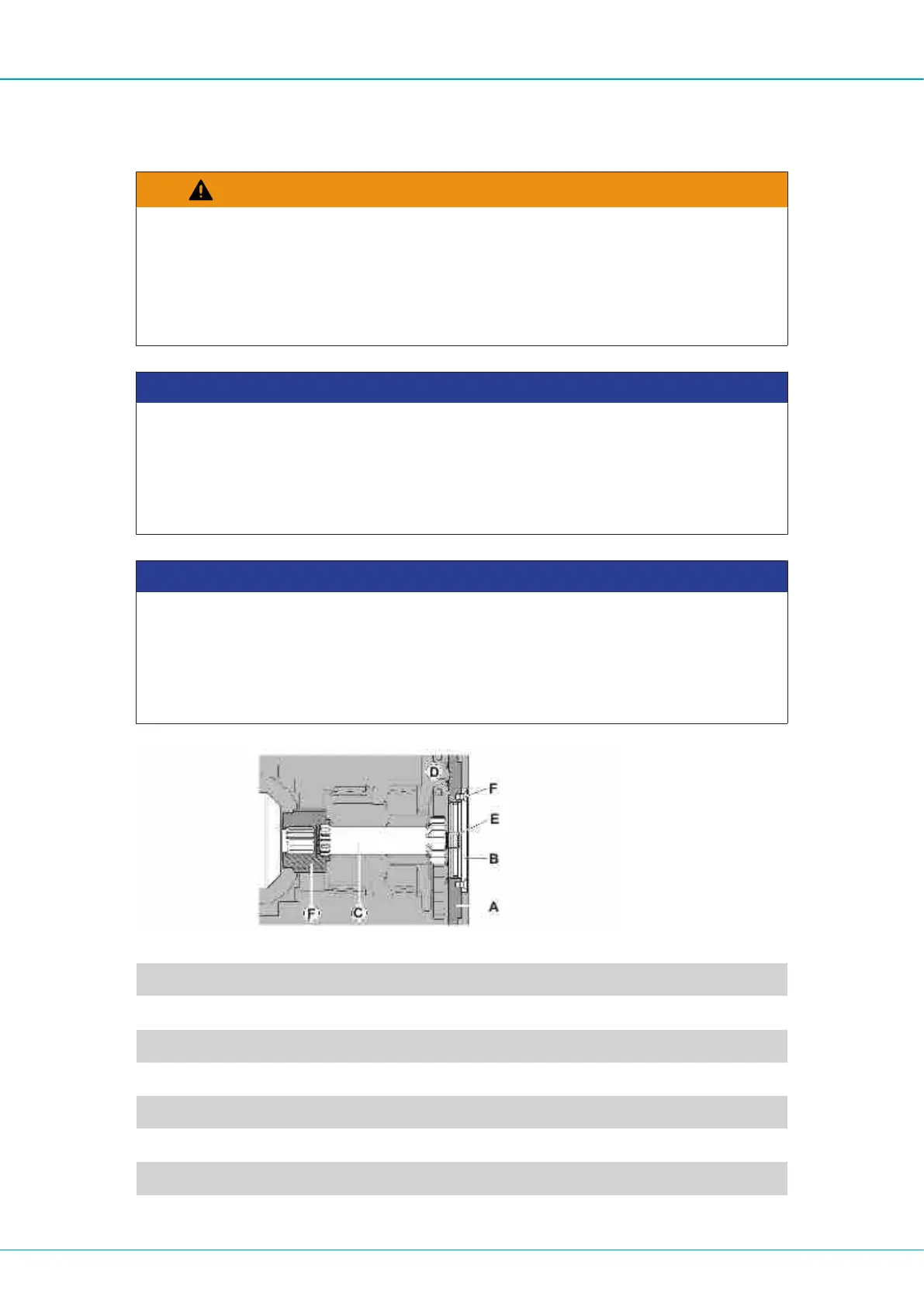

Traction gear for track frames
A Cover for traction gear
B Cover
C Centre shaft
D O-ring
E Cylinder barrel
F Countersunk screw
G Carrier
