SmartROC D65 Tier 4 Final 8 Track frames
153
Wear New front
wheel
25% 50% 75% 100%
mm 17.5 19.1 20.9 23.0 25.5
8.3.5 Check for wear on the track shoe

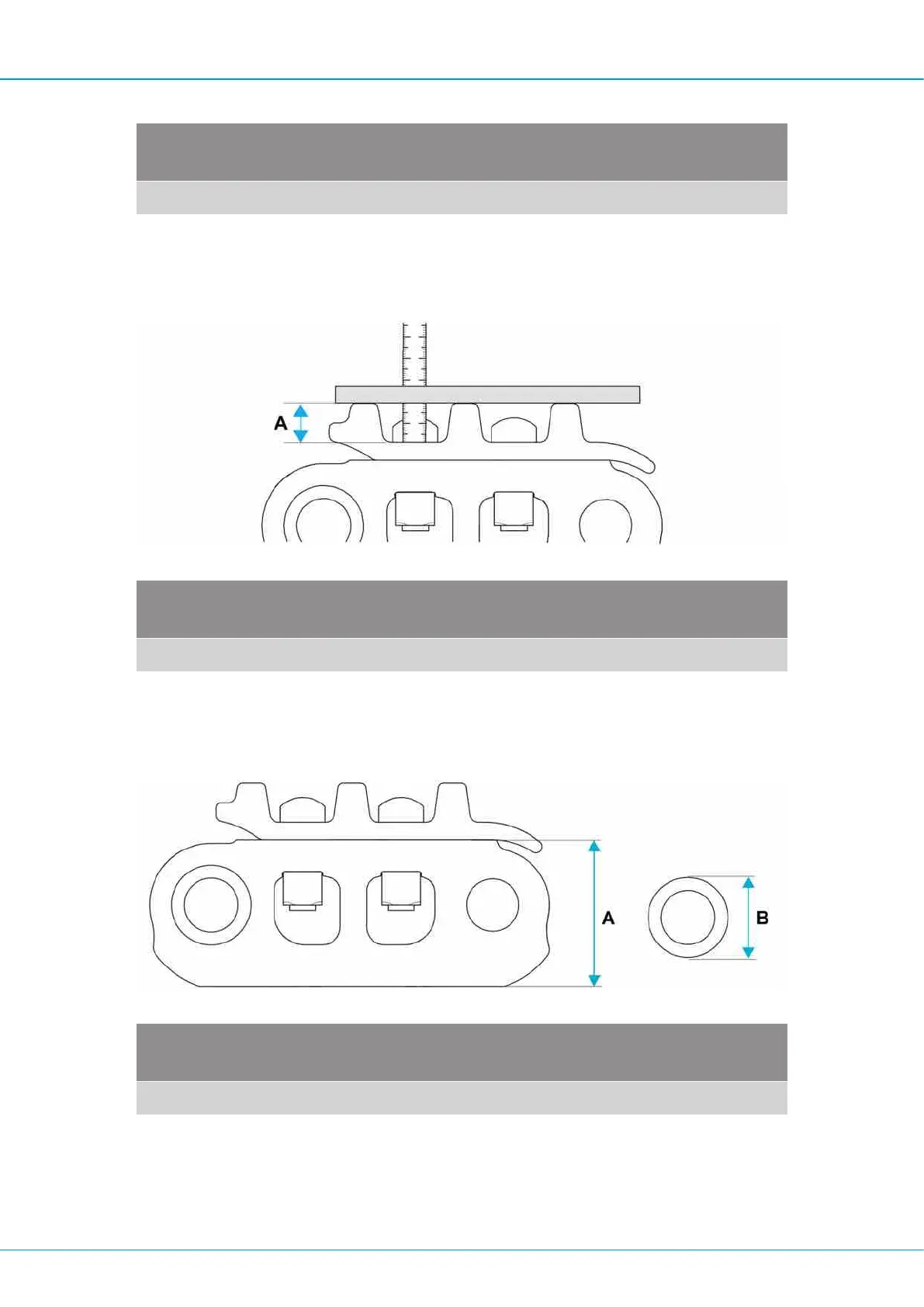

Check the wear on the track shoe by measuring the distance (A) between the top and bot-
tom of the track shoe.
Track shoe
Wear New track
shoe
25% 50% 75% 100%
mm 25.0 20,4 15,7 10.9 6.0
Table14: Triple grouser
8.3.6 Check for wear on the link and bushing
Check the wear by measuring the dimensions (A) and (B) on the link and bushing.
Link and bushing
Wear New link/
bushing
25% 50% 75% 100%
A mm 89.0 87,6 86,0 84,2 82.0
B mm 50,7 49,8 48,7 47,4 45,9
