SmartROC D65 Tier 4 Final 4 Hardware RCS
47

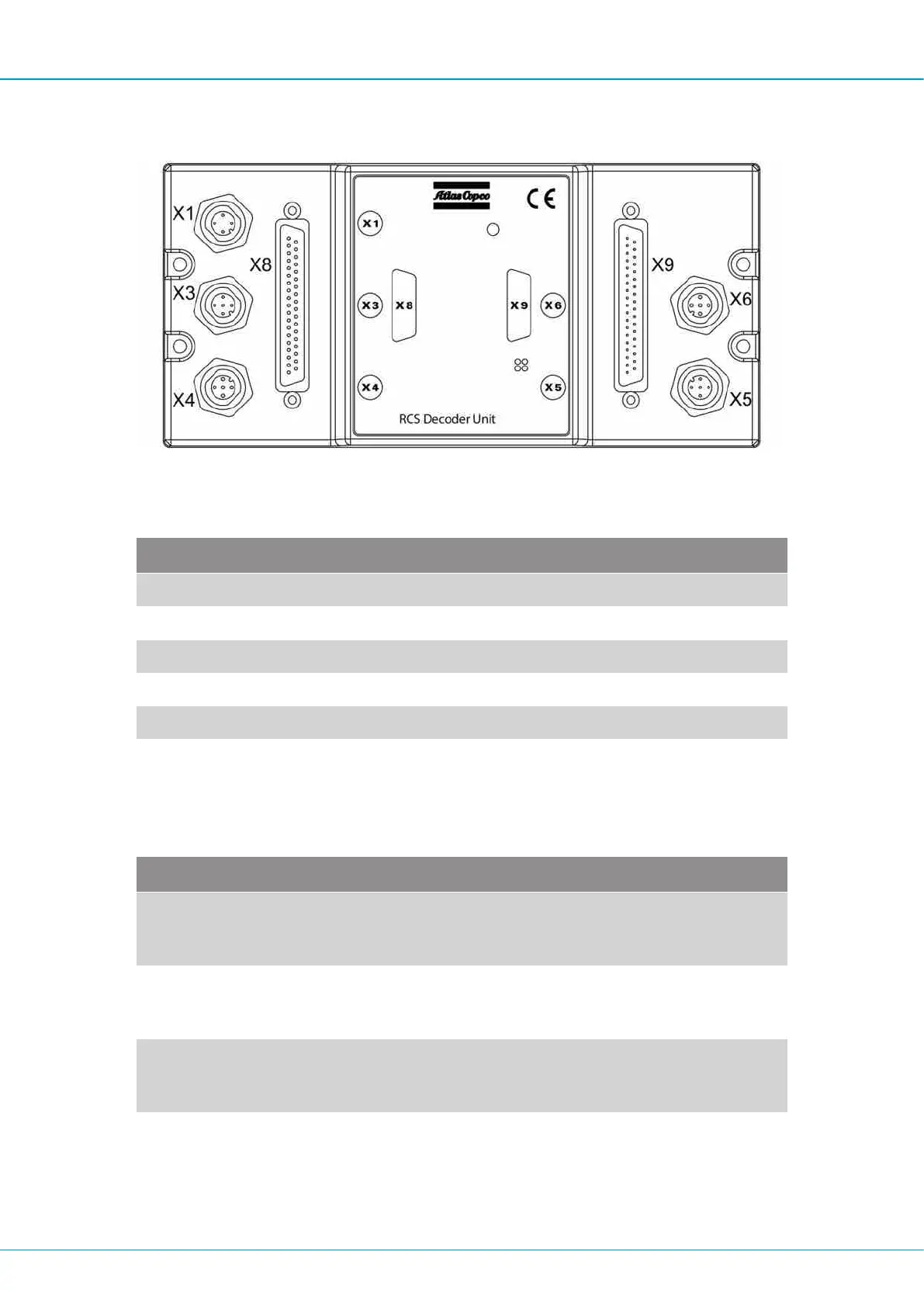

4.5 Decoder, operator panel
Decoder, operator panel
4.5.1 Connections
Contact Function
X1 Supply voltage
X3 Can network
X4 Can network
X5 Address plug
X6 RS232
X8, X9 Input/output contacts
Table9: Functions of connections
4.5.2 Pin configurations X1 - X6
Contact Type Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
X1 Four-pin
M12, male
contact
+24V supply
voltage
+24V supply
voltage
GND GND
X3 Five-pin
M12, male
contact
NC (Not
Connected)
CAN +24V CAN GND CAN Hi CAN Lo
X4 Five-pin
M12, female
contact
NC (Not
Connected)
CAN +24V CAN GND CAN Hi CAN Lo
X5 Five-pin
M12, male
contact
ID 2 ID 1 GND ID 0 ID 3
