SmartROC D65 Tier 4 Final 13 Oil and fuel
187
Hydraulic oil reservoir
13.8 Lubrication

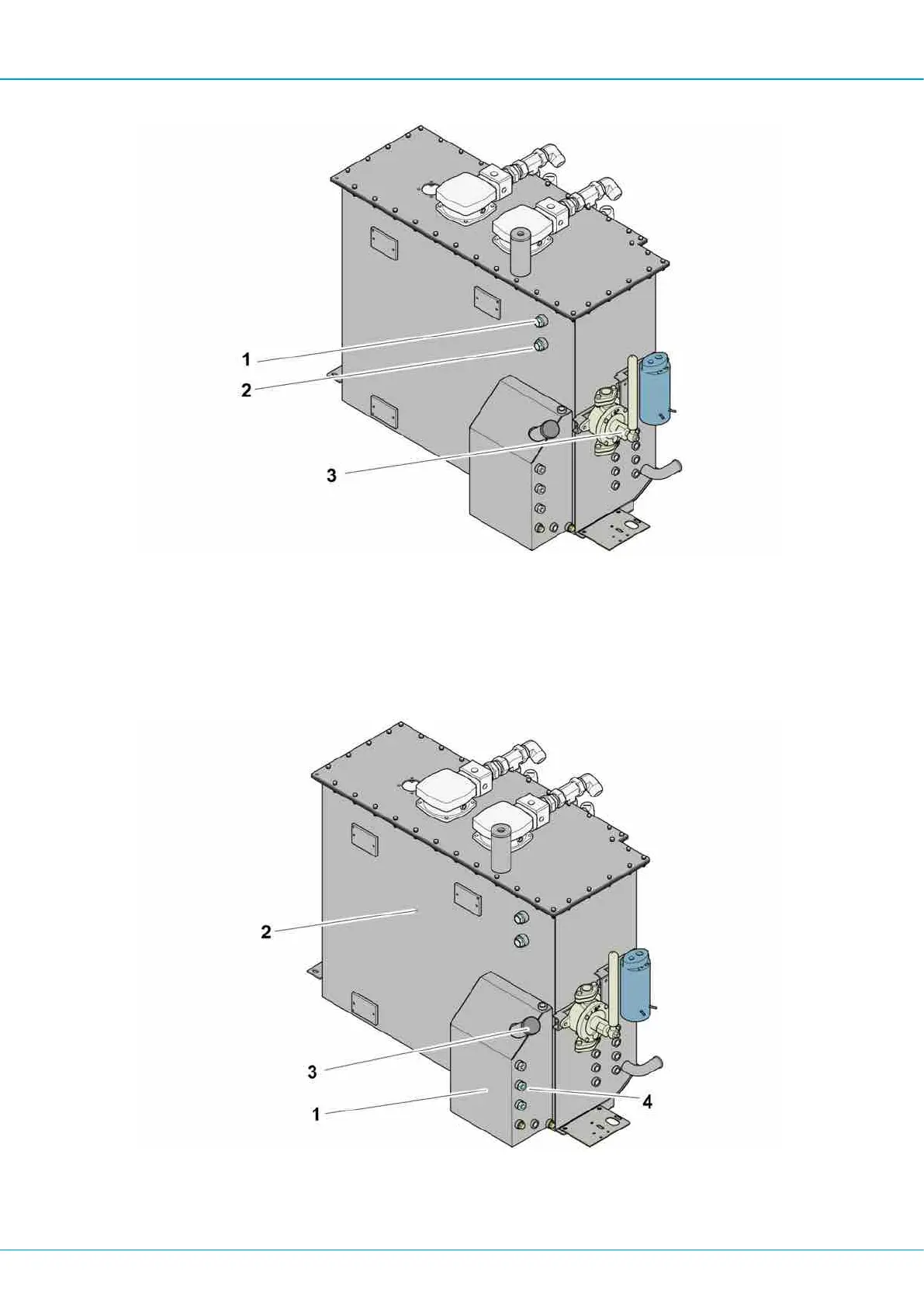

The lubricating oil tank (1) is fitted on the hydraulic oil tank (2).
The lubricating oil level can be read in the sight glass (4). In the event of a low level there
is also a warning on the display for engine and directional instruments.
Fill (3) if necessary (see the chapter "Recommended oils and lubricants").
