The discharge from the first stage of the cleaning flows through a single evacuation valve.
This should preferably be checked once each shift.
The filter housing also contains a safety cartridge which must be replaced every third time
the filter cartridge is replaced.
If maintenance and replacement at fixed intervals is necessary for any reason, which is not
normally recommended, then the following guidelines apply.
Hours 0 500 1000 1500 2000
Replacing the filter
cartridge and
cleaning the filter
housing
New X X X X
Replacing the
safety cartridge
New - - Changing -
Indicator test - X X
Table15: Intervals for filter maintenance
11.4.2 Air filter for engine and compressor, maintenance
!
NOTE: Never clean the filter cartridges.
NOTE: When an evacuation valve is damaged, replace it.
NOTE: If the warning symbol for clogged air filter remains visible, the safety cartridge
must also be replaced.
Replacing the filter cartridge
1.

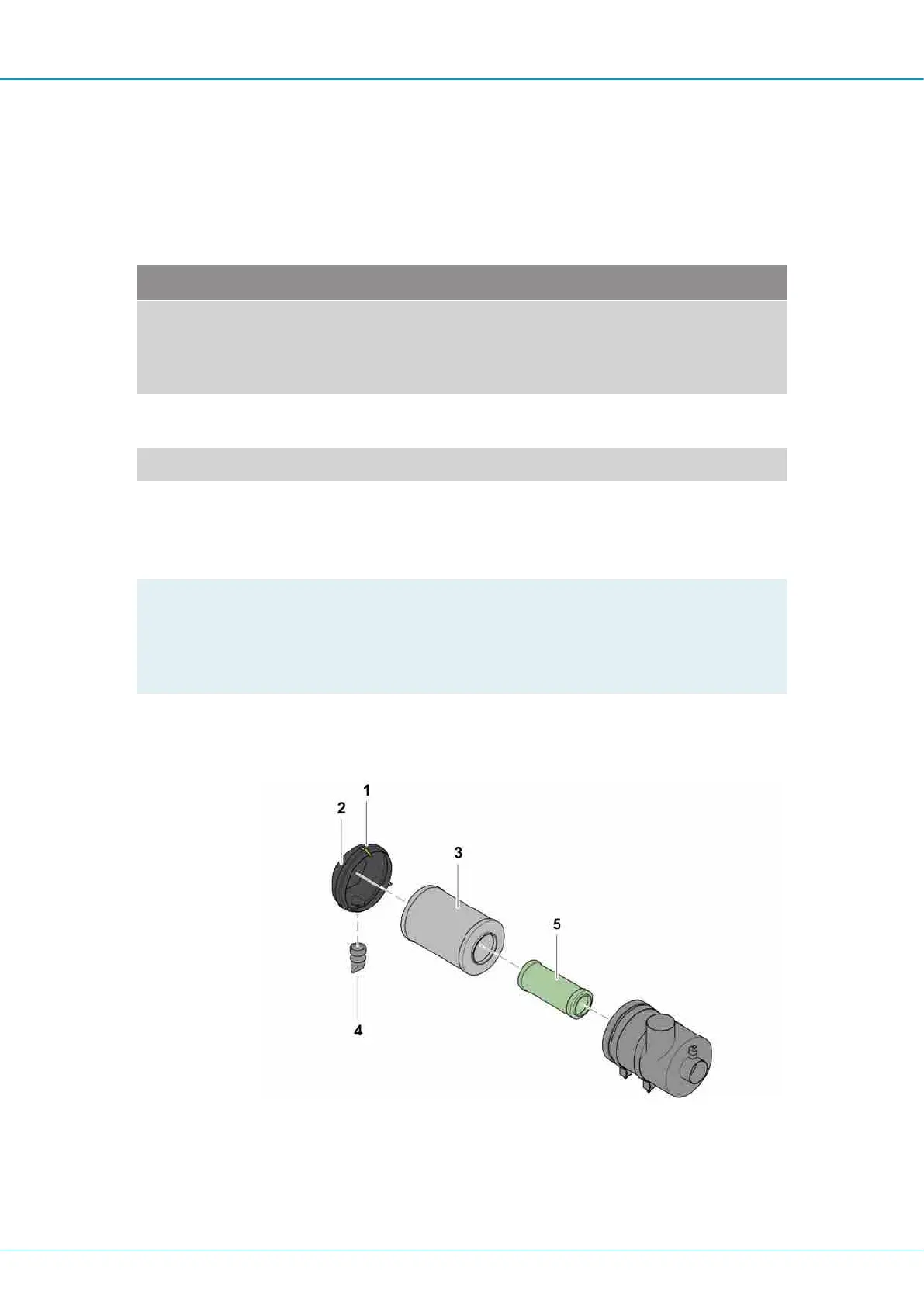

Undo clamps (1) and remove the cover (2).
Air filter
2.
Remove the main cartridge (3).
3.
Clean inside the filter housing and lid with a clean, dry rag.
