SmartROC D65 Tier 4 Final 11 Diesel engine
167

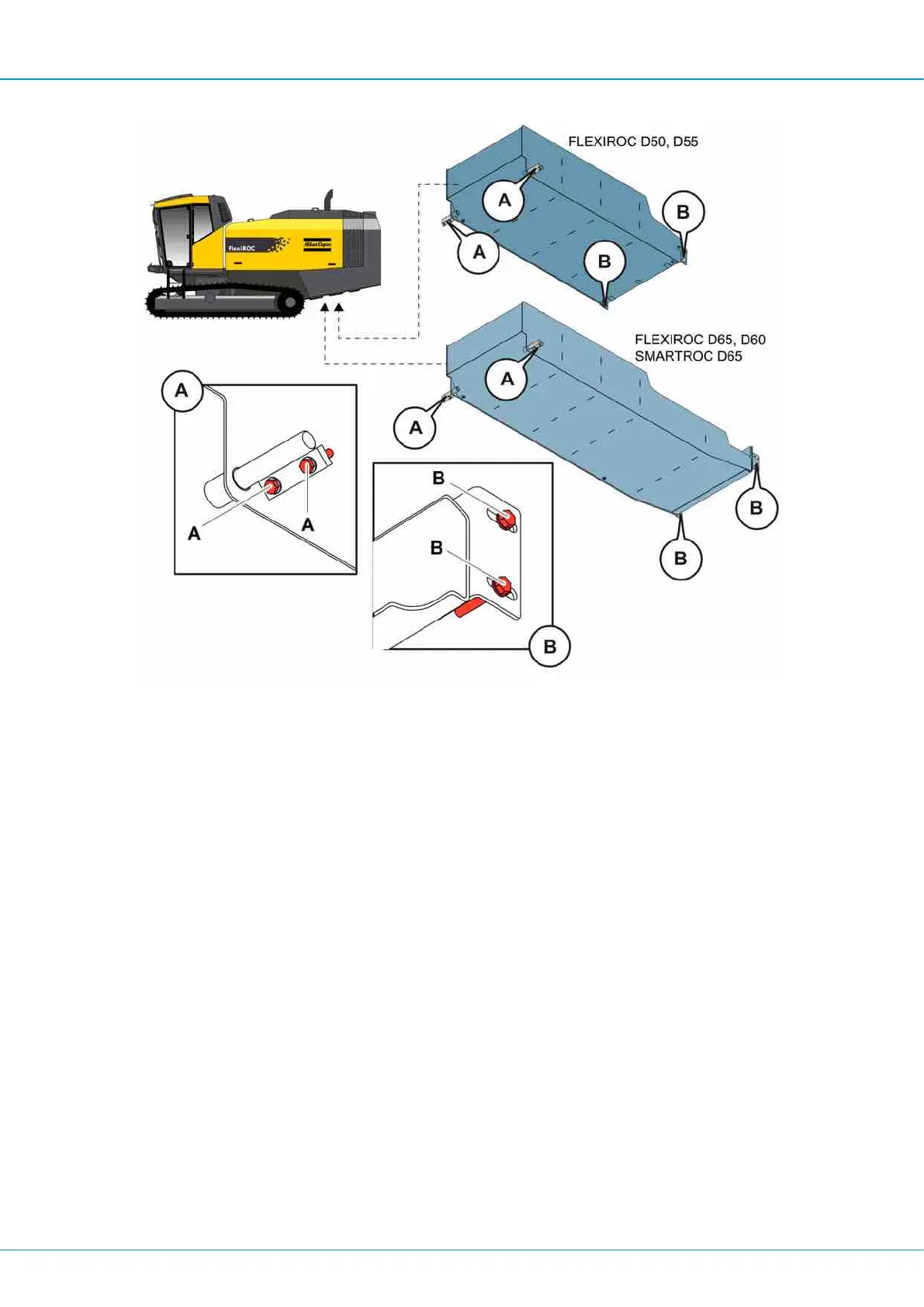

Fuel tank brackets
Check that the front fuel tank retaining bolts (A) are tightened to the correct torque of 73
Nm every 500 engine hours.
All fuel tank retaining bolts (A + B) and mountings must be checked before performing any
maintenance under the rig.
11.4.6 Draining the fuel tank
Always fill the fuel tank with clean diesel oil and fuel of the correct grade for the temperat-
ure.
1.
Undo the front protective plate on the underside of the drill rig.
2.
Undo the bottom plug by holding the nut with a 22 mm ring spanner and unscrewing
with an 8 mm Allen key. Allow the water to drain.
3.
Use track oscillation to tilt the drill rig in order to drain the tank completely.
4.
Tighten the plug so the diesel oil cannot leak out.
11.4.7 Drive belt
Replacing the multi-belt
Make sure the engine is switched off.
1.
Remove the belt cover.
