SmartROC D65 Tier 4 Final 11 Diesel engine
168
2.

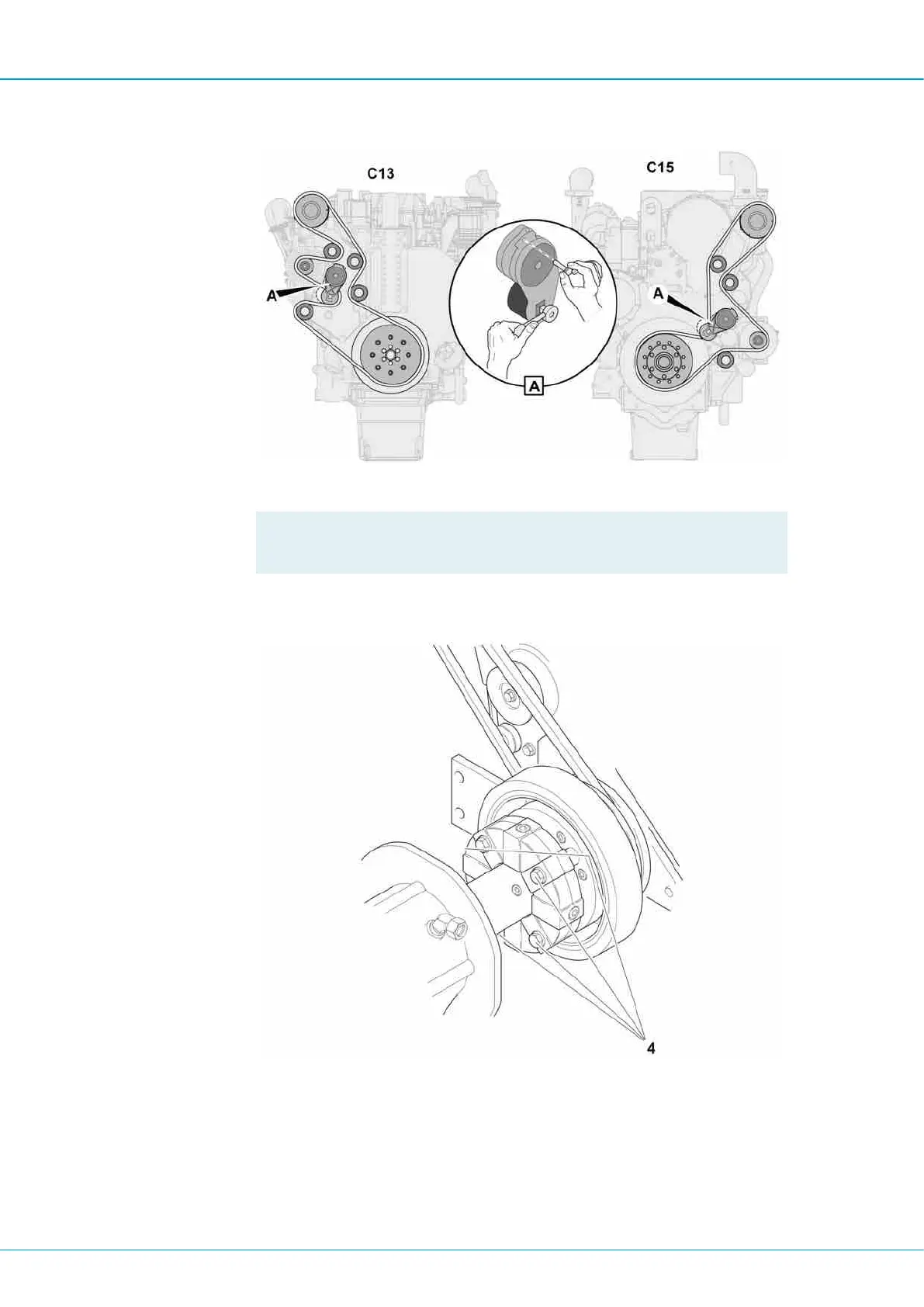

Ease up on the belt tension by turning the tensioning wheel (A).
Belt tension
!
NOTE: See the chapter Technical data for the correct engine al-
ternative.
3.
Secure the tensioner wheel in the position where the belt is slack using a pin (A).
4.
Undo and pull out the four bolts (4) in the shaft coupling until there is play.
Undo the bolts
5.
Replace the belt by inserting it through the clearance between the coupling rubber
and the shaft flange.
6.
Screw back the coupling rubber and tighten the bolts (185Nm).
