SmartROC D65 Tier 4 Final 3 Transport instructions
37

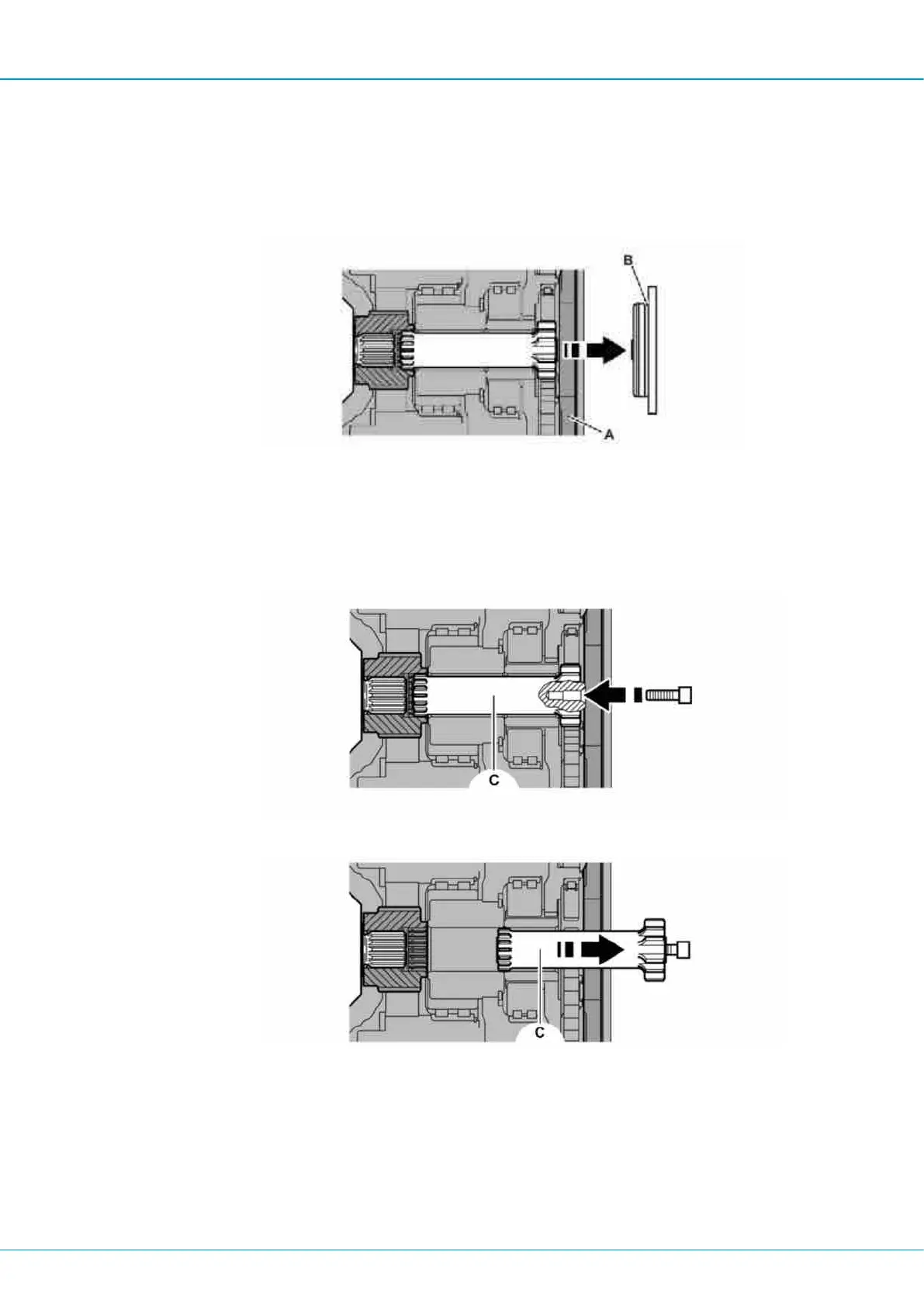

Before the machine can be towed, the centre shaft (C) on both track frames must be disen-
gaged.
Condition
p
The track frames must be clean and completely free of dirt and mud before the cover
plate (B) for the traction gears is removed.
1.
Remove the four countersunk screws (F) from the cover plate (B).
2.
Screw two 80 mm M8 screws into the threaded holes in the cover plate (B). Screw the
screws in evenly so that the cover plate (B) is pressed away from the cover for the
traction gear.
3.
Remove the cover plate (B), O-ring (D) and cylinder barrel (E).
4.
Screw an 80 mm M8 screw into the thread in the centre of the centre shaft (C).
5.
Use the screw head to pull out the centre shaft.
6.
Remove and check the condition of the O-ring (D). Replace it with a new O-ring if it is
damaged or worn.
7.
Refit the O-ring (D) and the cylinder barrel (E). Reattach the cover plate (B) in position
using the 4 countersunk screws.
8.
Proceed in the same way on the other track frame.
The machine can now be towed.
