SmartROC D65 Tier 4 Final 14 Options

194

B CAN BUS cable

C CAN BUS cable

1 PWR: Green lamp that indicates that the supply

voltage is OK.

2 GPS lock : Yellow lamp that indicates that the

satellite reception is OK.

3 HDG : Green lamp that indicates that the drill

rig's direction data has been sent onward to the

CAN BUS.

4 Primary antenna

5 Secondary antenna

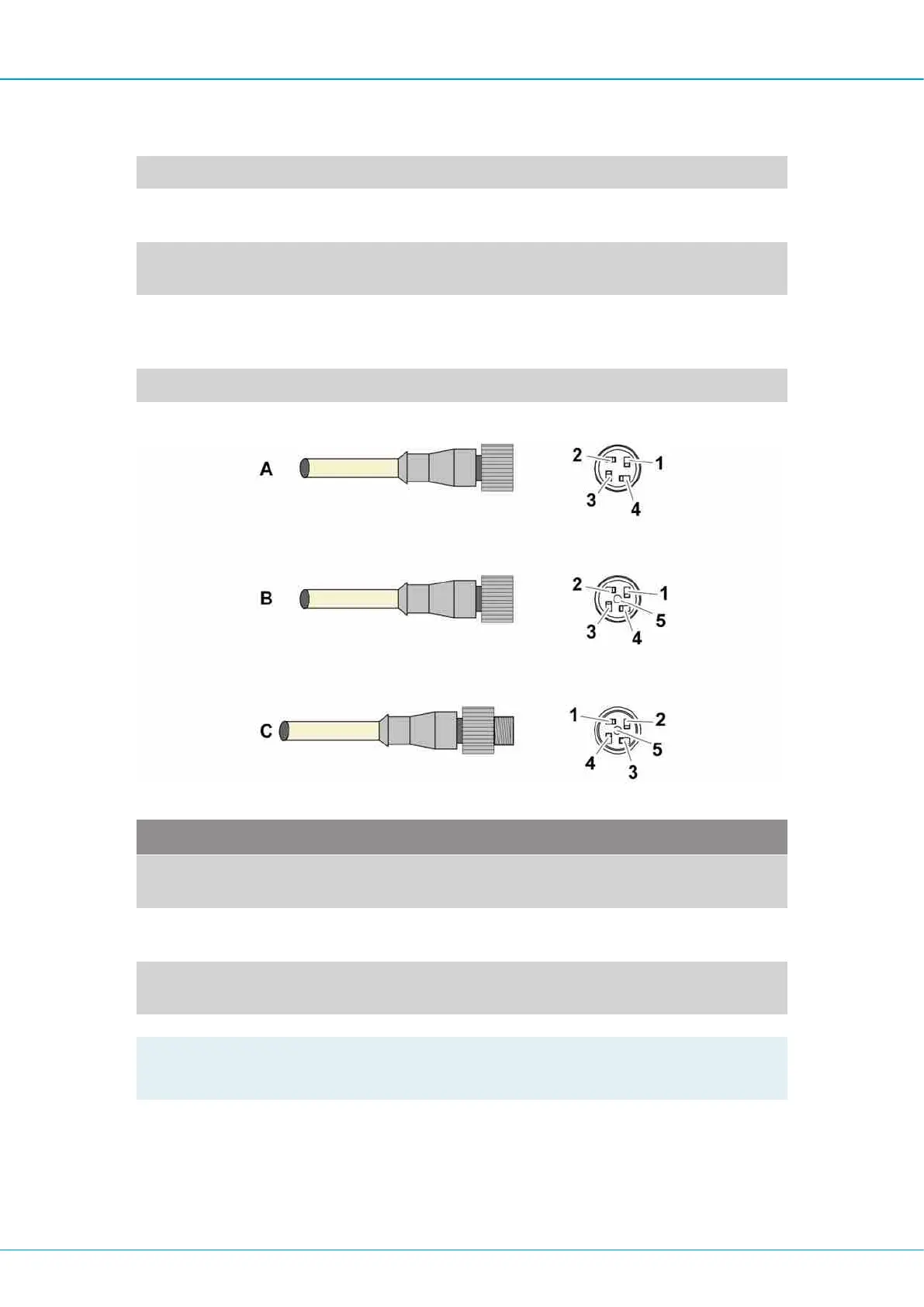

GPS cables

Wire Conductor 1 Conductor 2 Conductor 3 Conductor 4 Conductor 5

A brown 24V white GND blue Tx data black Rx

data

B - white 24V blue GND black CAN

grey CAN

C - white 24V blue GND black CAN

grey CAN

NOTE: * The voltage cable's 24V conductor (1) has a 1 A fuse connected.
